EVO™ ONE
Console, sensors and installation hardware in one kit for sites with up to four tanks
Overview
EVO™ ONE is Franklin's answer to a common retrofit problem: the old tank gauge has failed, but the probes and sump sensors around it are just as old. Rather than swapping only the console, the EVO™ ONE kit brings a new console together with universal liquid sensors, 2" probe install kits and float kits in a single order, so the whole monitoring system is renewed at once and every part is known to work with the others from day one.
Franklin's EMEA ordering guide lists four kits: two for sites with up to 2 tanks and two for sites with up to 4 tanks, each available with or without a line leak detection kit of pressure transducers. Probes are a separate line item because their length depends on tank diameter, so the installer picks a digital leak detection or inventory-only probe for each tank.

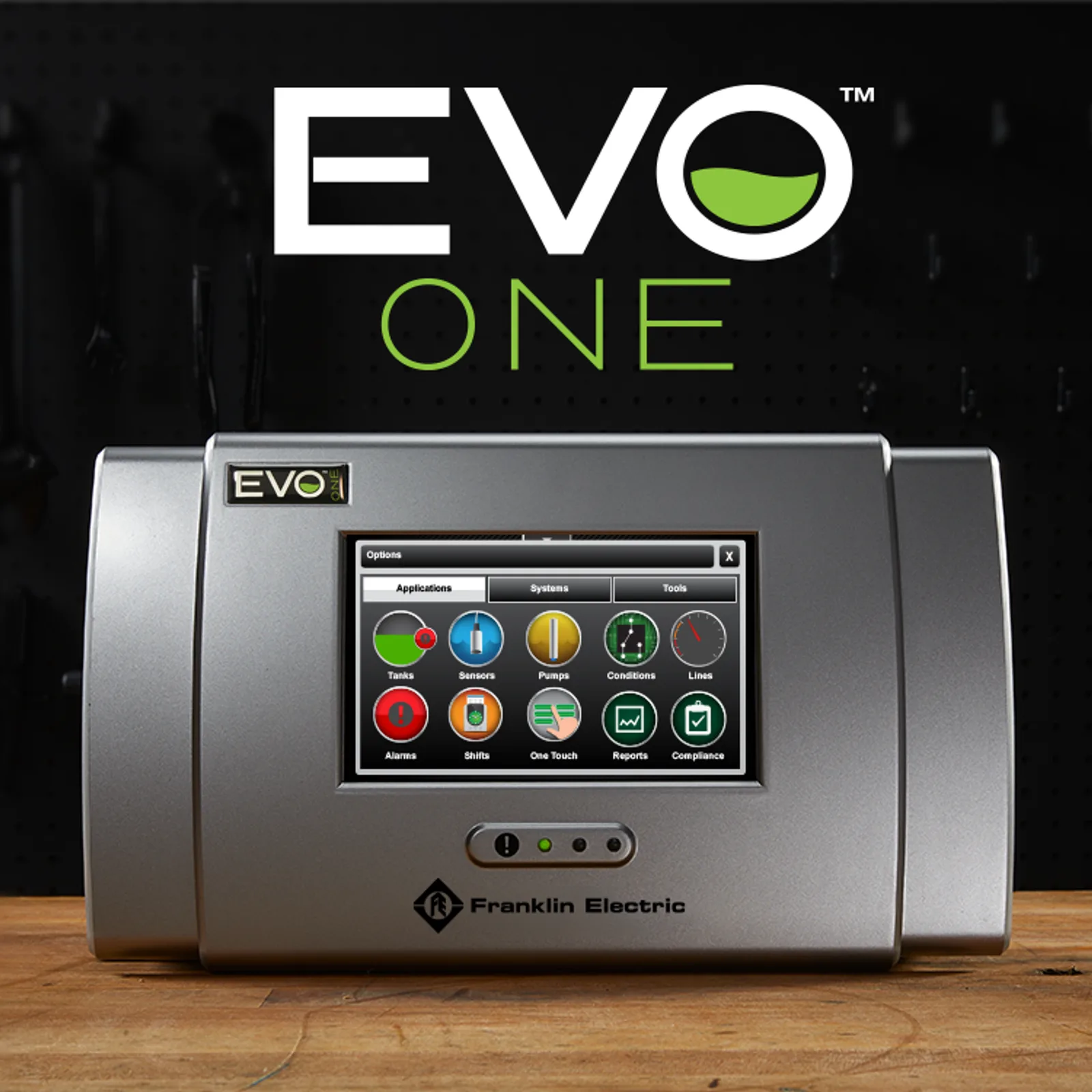

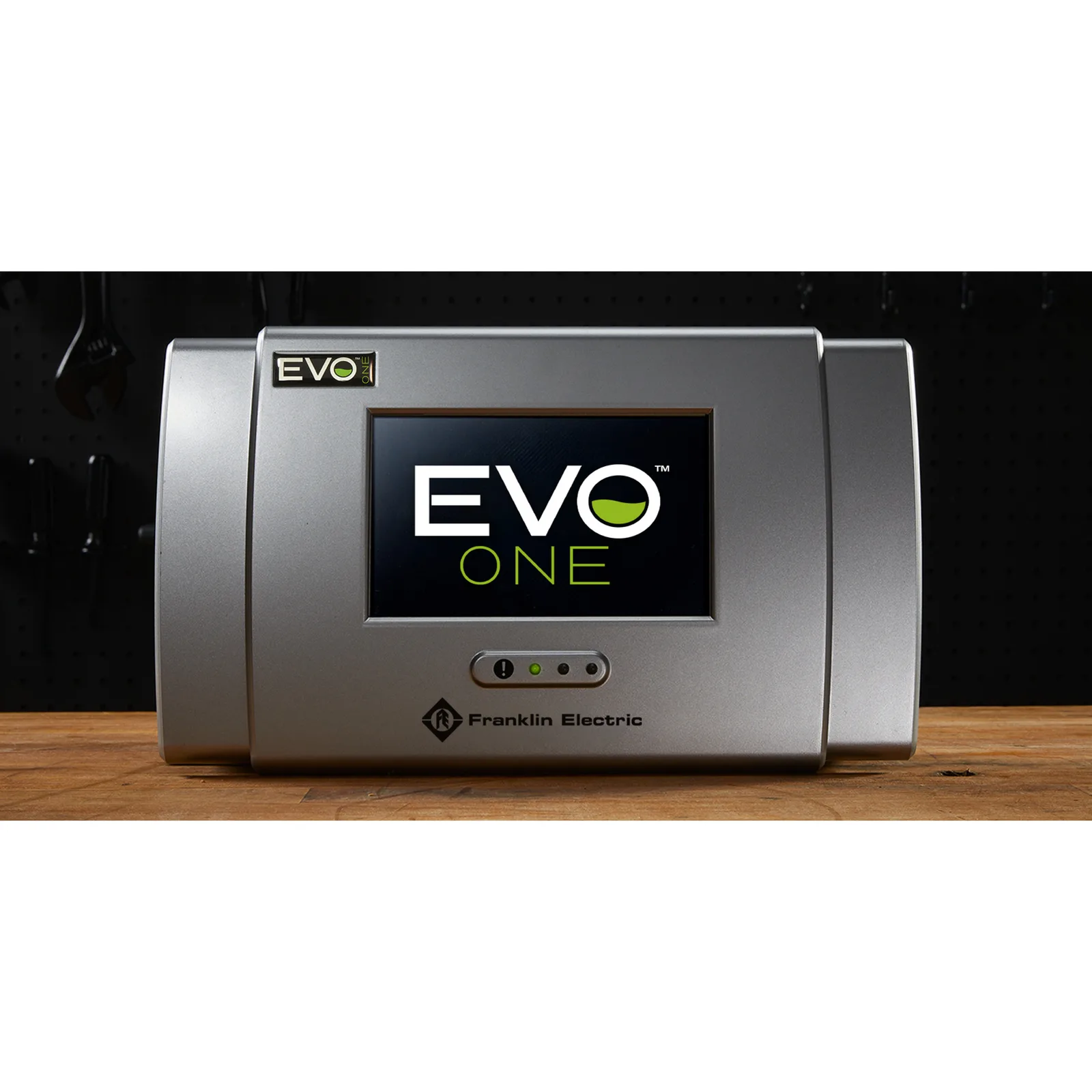

The console has a 7" colour touch screen and the same software base as the larger EVO™ consoles: inventory and reconciliation, tank autocalibration, static and SCALD® tank testing, containment monitoring and optional electronic line leak detection. A Pre-Configure tool asks a few simple questions and fills in the setup, which shortens commissioning on a busy forecourt. Four relay outputs can drive an external overfill alarm, and a USB port takes the optional external printer.
Apex supplies, installs and services EVO™ ONE kits in Lebanon, including probe sizing for each tank and connection to FFS PRO® Connect for remote access.
Key features
- Kit bundles the console with 4 or 8 universal liquid sensors, 2" probe install kits and gas and diesel float kits
- Optional line leak detection kit with 2 or 4 pressure transducers
- Probes ordered per tank as digital leak detection (FMP-LL3) or inventory-only (FMP-LL3-I) models
- Pre-Configure tool auto-fills configuration settings from a few setup questions
- 7" (17.78 cm) colour LCD touch screen with up to six One Touch Buttons
- Up to 14 tanks and 14 Universal Device Protocol inputs on the console
- 4 relay outputs, 2 dry contact inputs and 4 AC input channels
- MQTT, MODBUS®, XML and Veeder-Root® protocol support
Specifications
EVO™ ONE technical data
| Model | Kit | Included |
|---|---|---|
| EVO1-X0-S4-BC2-2IG1D1 | Up to 2 tanks | (1) EVO™ ONE console, (4) universal liquid sensors, (2) 2" probe install kits, (1) 2" gas float kit, (1) 2" diesel float kit |
| EVO1-X2-S4-BC2-2IG1D1 | Up to 2 tanks with line leak detection | As above plus (1) line leak detection kit with (2) pressure transducers |
| EVO1-X0-S8-BC4-2IG3D1 | Up to 4 tanks | (1) EVO™ ONE console, (8) universal liquid sensors, (4) 2" probe install kits, (3) 2" gas float kits, (1) 2" diesel float kit |
| EVO1-X4-S8-BC4-2IG3D1 | Up to 4 tanks with line leak detection | As above plus (1) line leak detection kit with (4) pressure transducers |
| Parameter | Value |
|---|---|
| Maximum tanks monitored | 14 |
| Maximum sensor input capacity | 14, 28 (28 requires two FMP-ULS sensors per channel) |
| Lines capacity | 4 |
| Relay output channels | 4 |
| Display | 7" (17.78 cm) colour LCD touch screen |
| Power requirements | 110 to 240 VAC, 50/60 Hz, 1.0 amp |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Approvals | UL, cUL, ATEX, IECEx, GSA IT Security |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
EVO™ ONE: common questions
- Are probes included in the EVO™ ONE kit?
- No. Probes are ordered as a separate line item so each one can match its tank diameter. The kit itself contains the console, liquid sensors, probe install kits and float kits.
- How many tanks can an EVO™ ONE kit cover?
- The EMEA kits are sized for up to 2 tanks or up to 4 tanks. The console hardware itself can monitor up to 14 tanks if the site grows.
- Can EVO™ ONE do line leak detection?
- Yes, as an option. Two of the four kits add a line leak detection kit with pressure transducers mounted in the submersible pump manifold.
Request a Quotation
Get a quotation for the Franklin Fueling Systems EVO™ ONE.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
