Franklin Fueling Systems

Automatic Tank Gauges & Leak Detection

EVO™ Series consoles for inventory, compliance and leak detection

Franklin's EVO™ Series automatic tank gauges track fuel inventory in real time, run tank and line compliance tests, and watch sumps and interstitial spaces for leaks. Consoles range from the all-in-one EVO™ ONE kit to the modular EVO™ 600 and EVO™ 6000 for large, multi-tank sites.

WhatsApp us

Franklin Fueling Systems EVO ONE automatic tank gauge console

Around the console sit stand-alone and integrated electronic line leak detection, secondary containment monitoring, remote alarms and FFS PRO® Connect browser access. Apex supplies, installs and services the complete EVO™ system and its probes and sensors.

Key features

Real-time inventory monitoring with reconciliation and tank autocalibration
Automated tank, line and containment compliance testing and reporting
SCALD® statistical continuous automatic leak detection
Electronic line leak detection with AUTO-LEARN® line learning and pump shutdown
Turbine Pump Interface™ (TPI) for pump monitoring and control
Email and SMS alerts with remote access through FFS PRO® Connect
Custom user roles, multi-factor log-in and current TLS/SSL encryption
Programmable logic conditions and One Touch buttons for routine tasks

Product lines

What this range covers

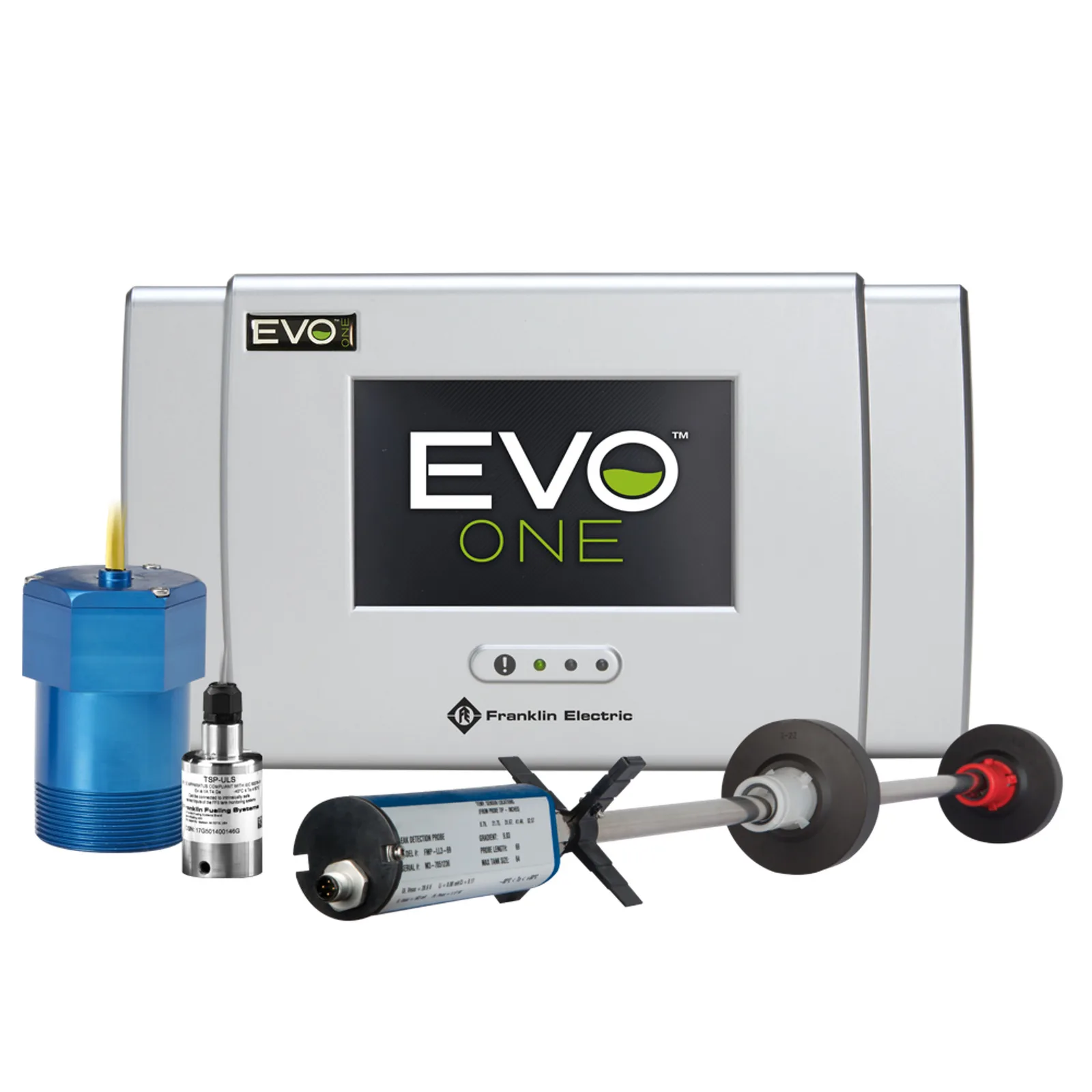

EVO™ ONE

All-in-one bundle that combines the EVO™ console with sensors and installation hardware, with kit options for sites of up to 2 or 3 tanks and 8 dispensers. Probes are ordered separately to complete the system.

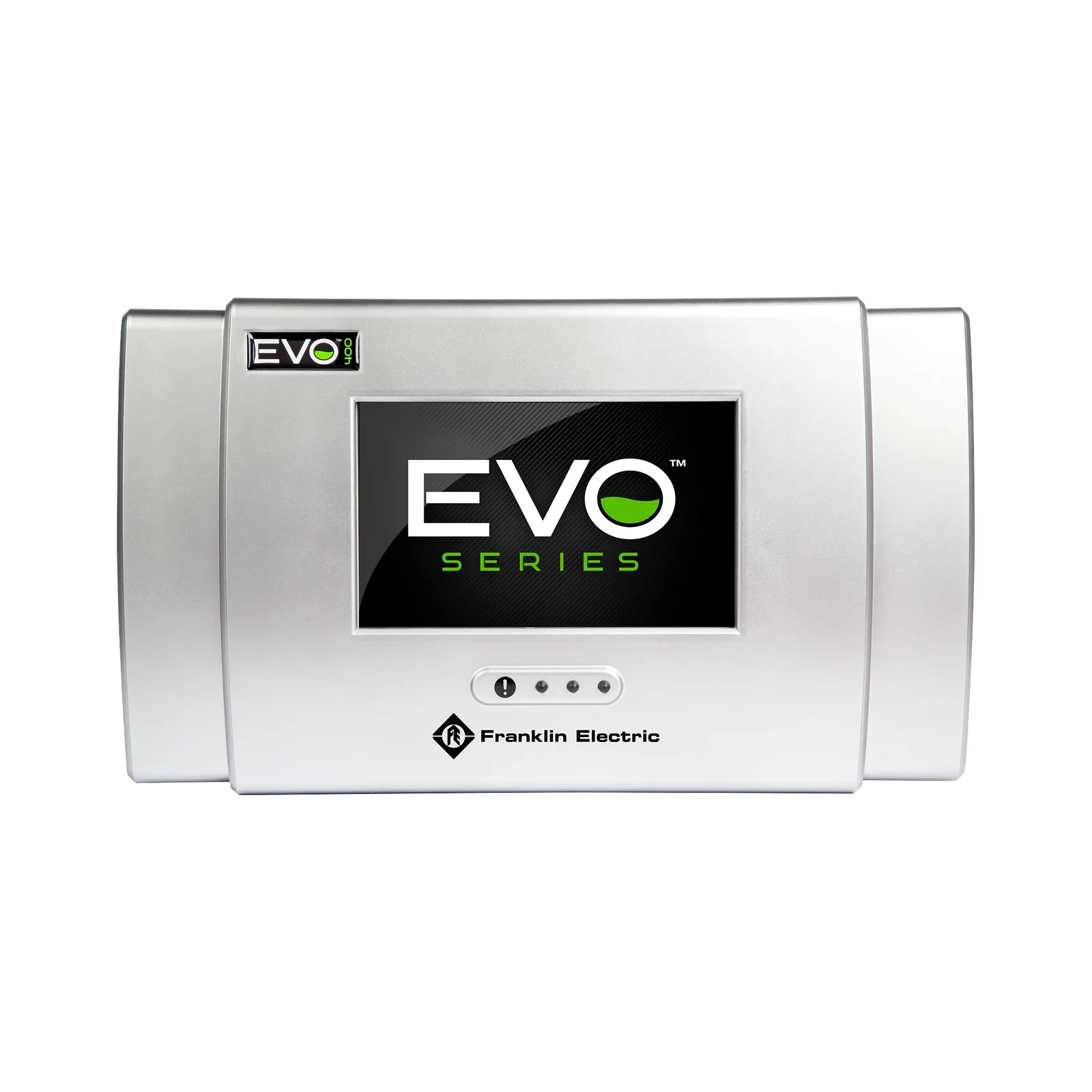

EVO™ 400

Tank gauge for small to mid-size sites that covers inventory, compliance monitoring and leak detection with remote access. The enhanced EVO401 base model handles up to 14 channels.

EVO 400 Datasheet

EVO™ 600 & EVO™ 6000

Module-based consoles configured to each site's probes and sensors. The EVO™ 600 takes 6 modules (up to 4 intrinsically safe) and the EVO™ 6000 takes 11 (up to 9 intrinsically safe).

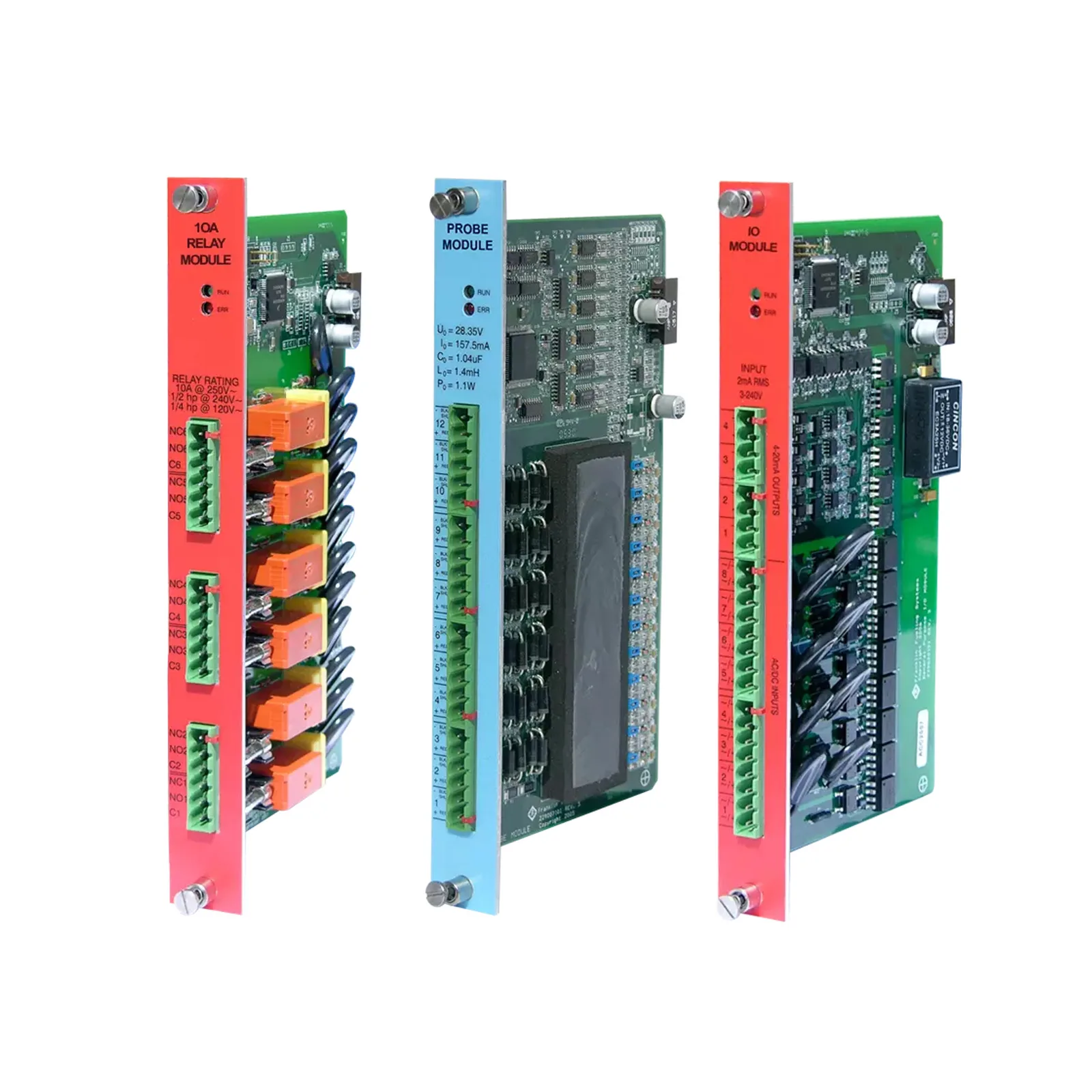

EVO™ Series accessories

Interface modules, dispenser interface module cables, the network expansion box and printer paper for EVO™ consoles. Modules ordered with a console are fitted at the factory, or can be ordered as spares.

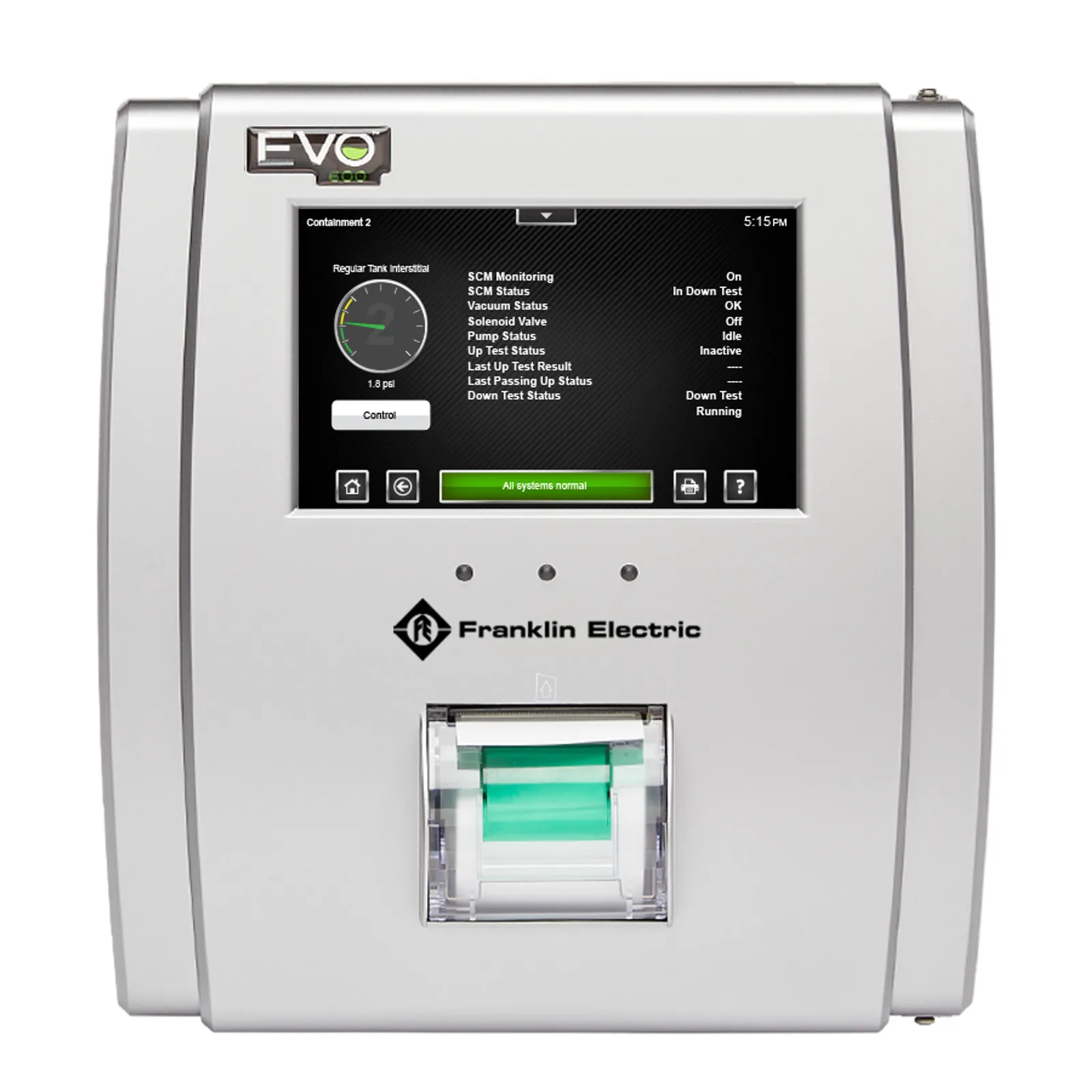

Secondary containment monitoring

Uses the siphon/vacuum port of the submersible pump to hold vacuum on double-wall pipework, tanks and sumps. The ATG alarms if vacuum cannot be held or liquid enters an interstitial space, with up to four spaces per pump.

Secondary Containment Monitoring Datasheet

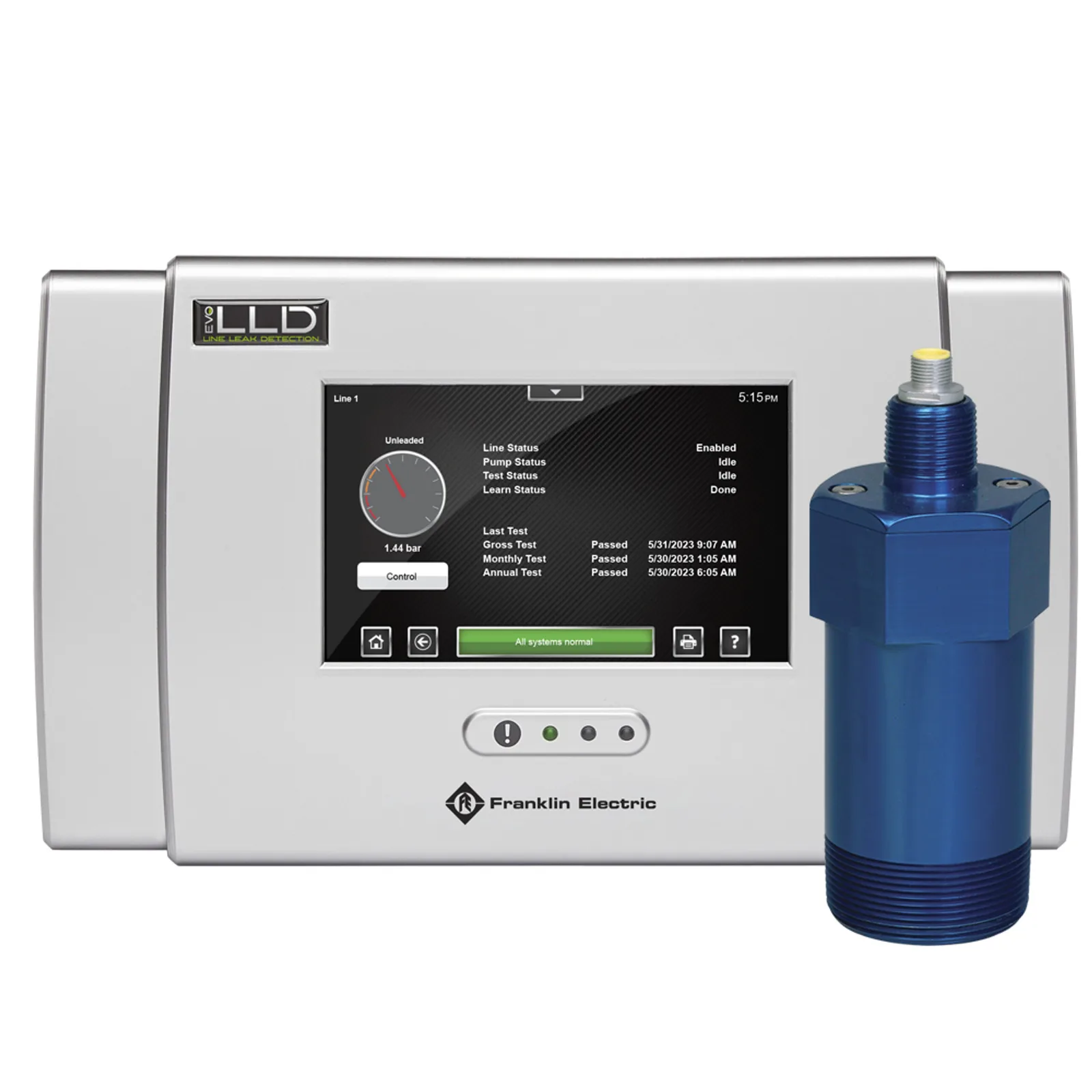

EVO™ LLD stand-alone line leak detection

Pressure-based electronic line leak detector supplied in 2, 3 and 4-line kits. AUTO-LEARN® sets up each line, and the system runs 3.0 gph, 0.2 gph monthly and 0.1 gph annual tests with automatic pump shutdown on a leak.

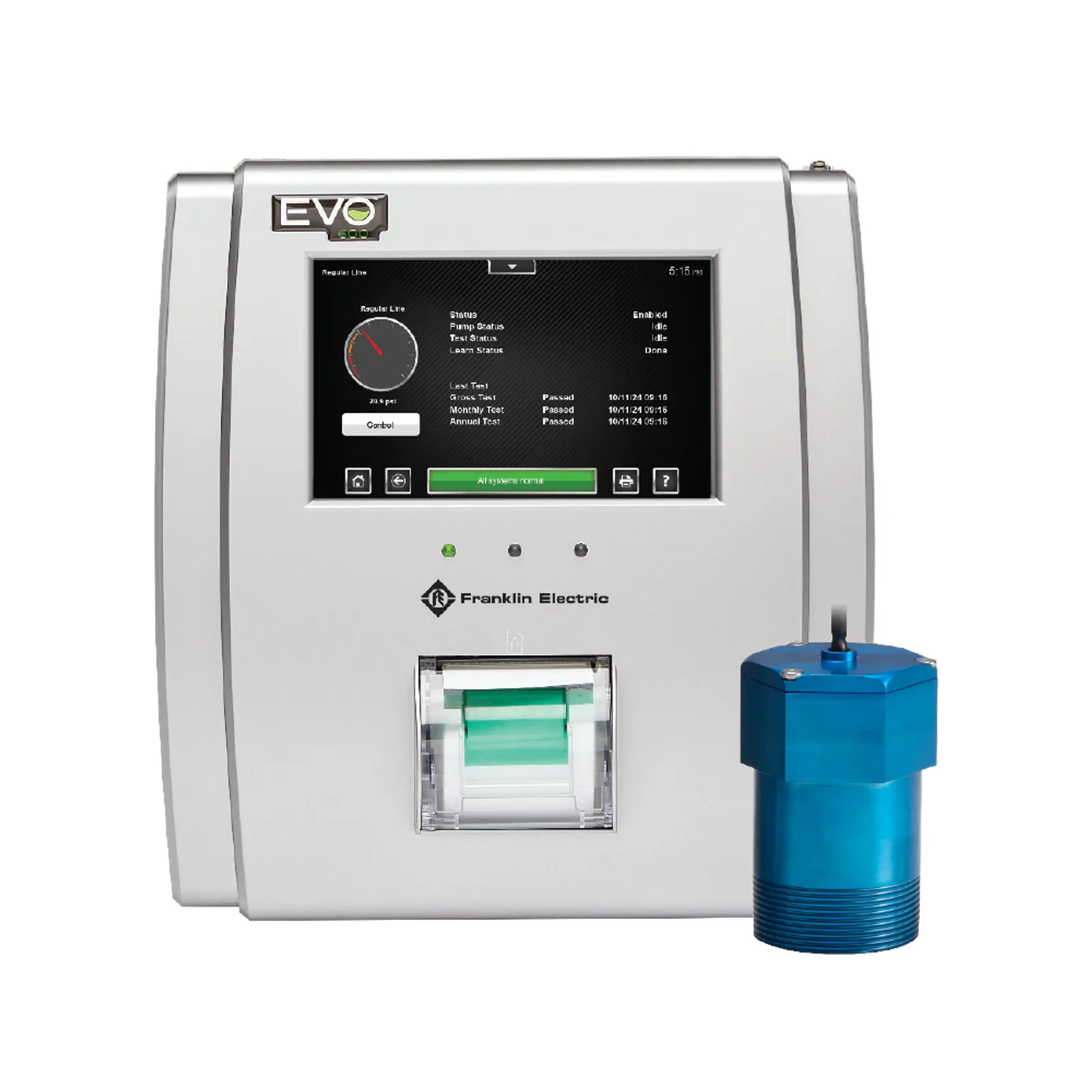

EVO™ Electronic Line Leak Detection (ELLD)

Optional EVO™ 600/6000 software feature that uses pressure transducers in the pump manifold to watch pressurised lines, declare a leak from learned line behaviour and shut down the pump.

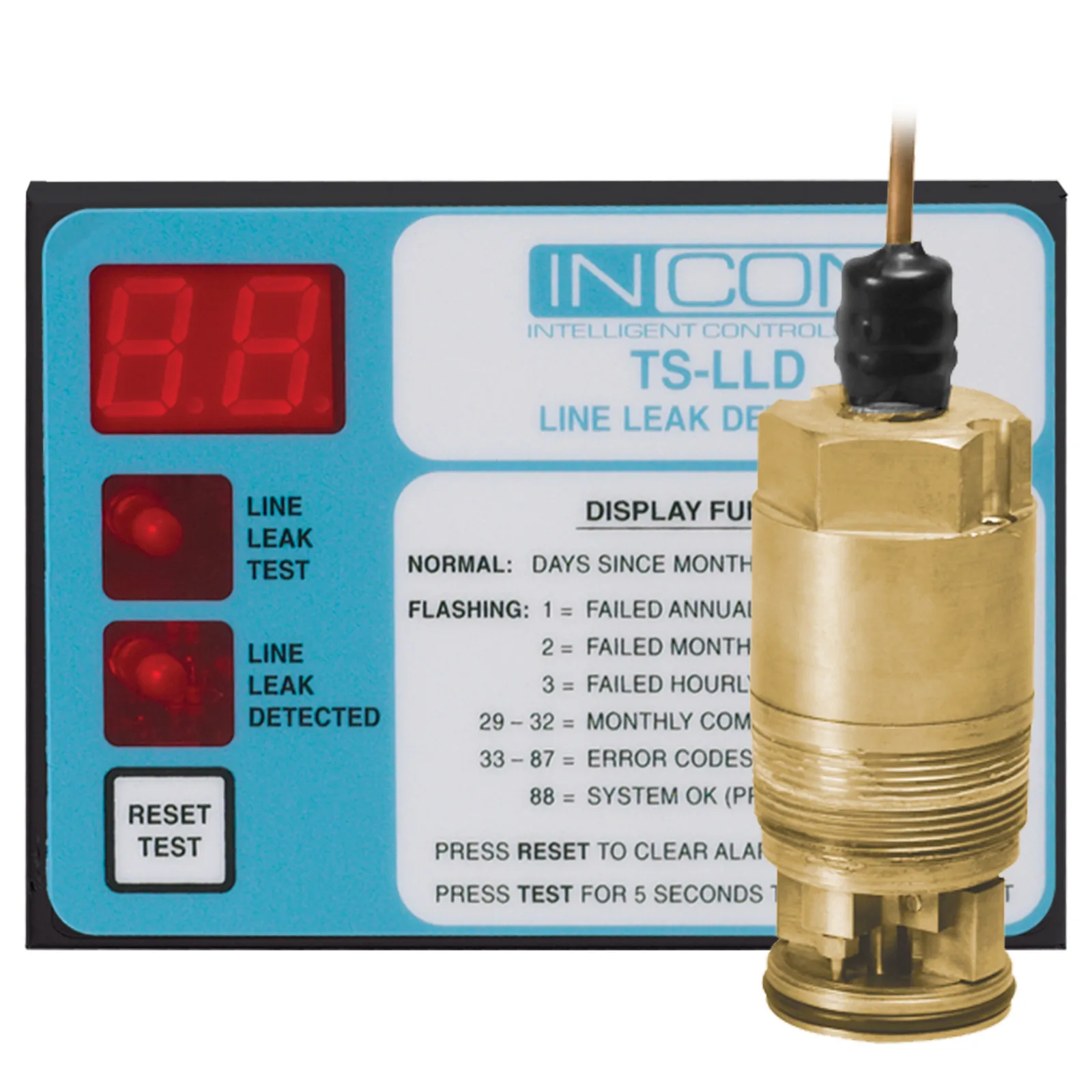

TS-LLD line leak detector

Stand-alone, flow-based leak detector for a single line that fits existing submersible pump housings in place of a mechanical leak detector. It runs the 3.0 gph, 0.2 gph and 0.1 gph tests with positive shutdown on a leak.

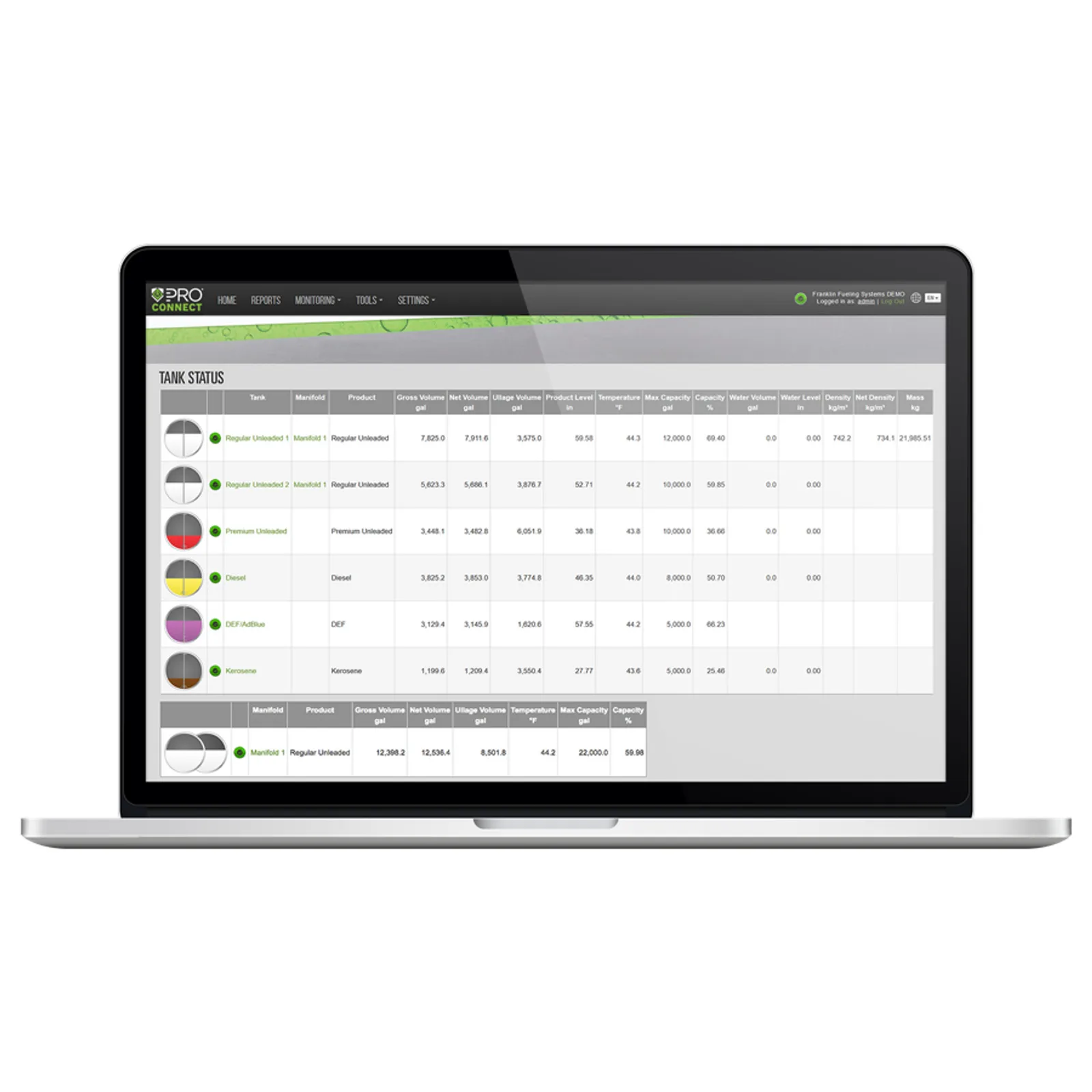

FFS PRO® Connect

Secure web browser interface that connects directly to an EVO™ console from a PC, tablet or phone with no app to install, for inventory, compliance data, alarms, reports and remote setup.

FFS PRO Connect Datasheet

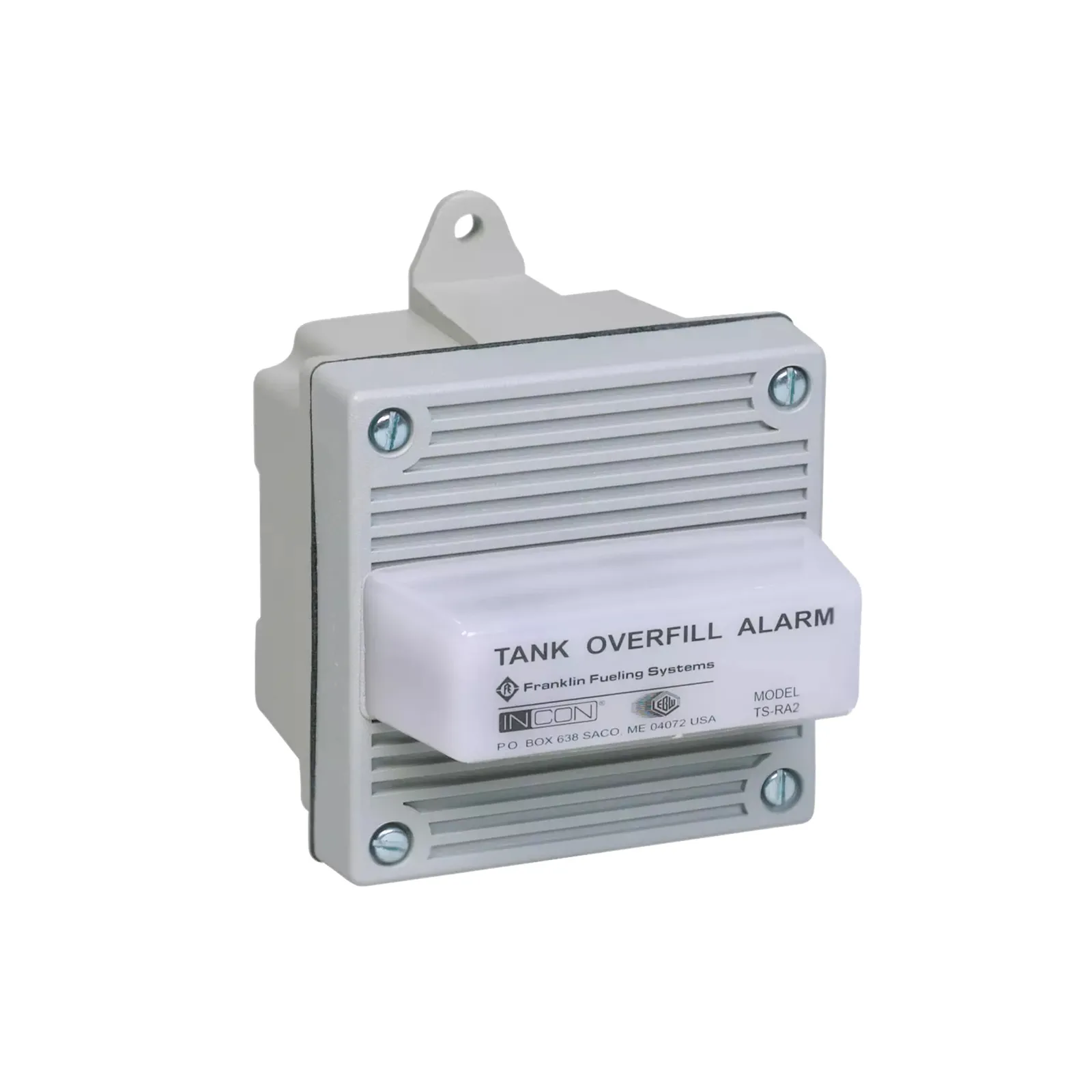

External alarms

TS-RA1 remote audible and visible alarm and TS-RA2 high intensity alarm, both usable as overfill alarms, plus the TS-RK remote alarm acknowledge unit for Franklin tank gauges.

Request a Quotation

Get a quotation for Automatic Tank Gauges & Leak Detection.

Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
