FE PETRO® submersible turbine pumps and controllers

FE PETRO® submersible turbine pumps, on the market since 1988, cover everything from low-throughput grades to high-volume diesel lanes. The 4" range runs from ⅓ and ¾ Hp up to 2 Hp and 4 Hp variable speed, and the 6" high-capacity pumps come in 3 and 5 Hp.

WhatsApp us

FE PETRO 4 Hp variable speed submersible turbine pump by Franklin Fueling Systems

Mechanical leak detectors, Guardian Series™ variable frequency and fixed-speed controllers, and control boxes complete the pumping system. Apex supplies, installs and services FE PETRO® pumps and their controls.

Key features

Variable speed 2 Hp and 4 Hp pumps with selectable operating pressure
MagShell® option with 45% more flow area around the motor
Integral check valve with pressure relief, syphon primer and air eliminator
Variable length and fixed length models
MLD+ mechanical leak detectors for 3 gph at 10 psi
Guardian Series™ controllers with fault logging and EVO™ communication
Intake filter screen option for debris protection

Product lines

What this range covers

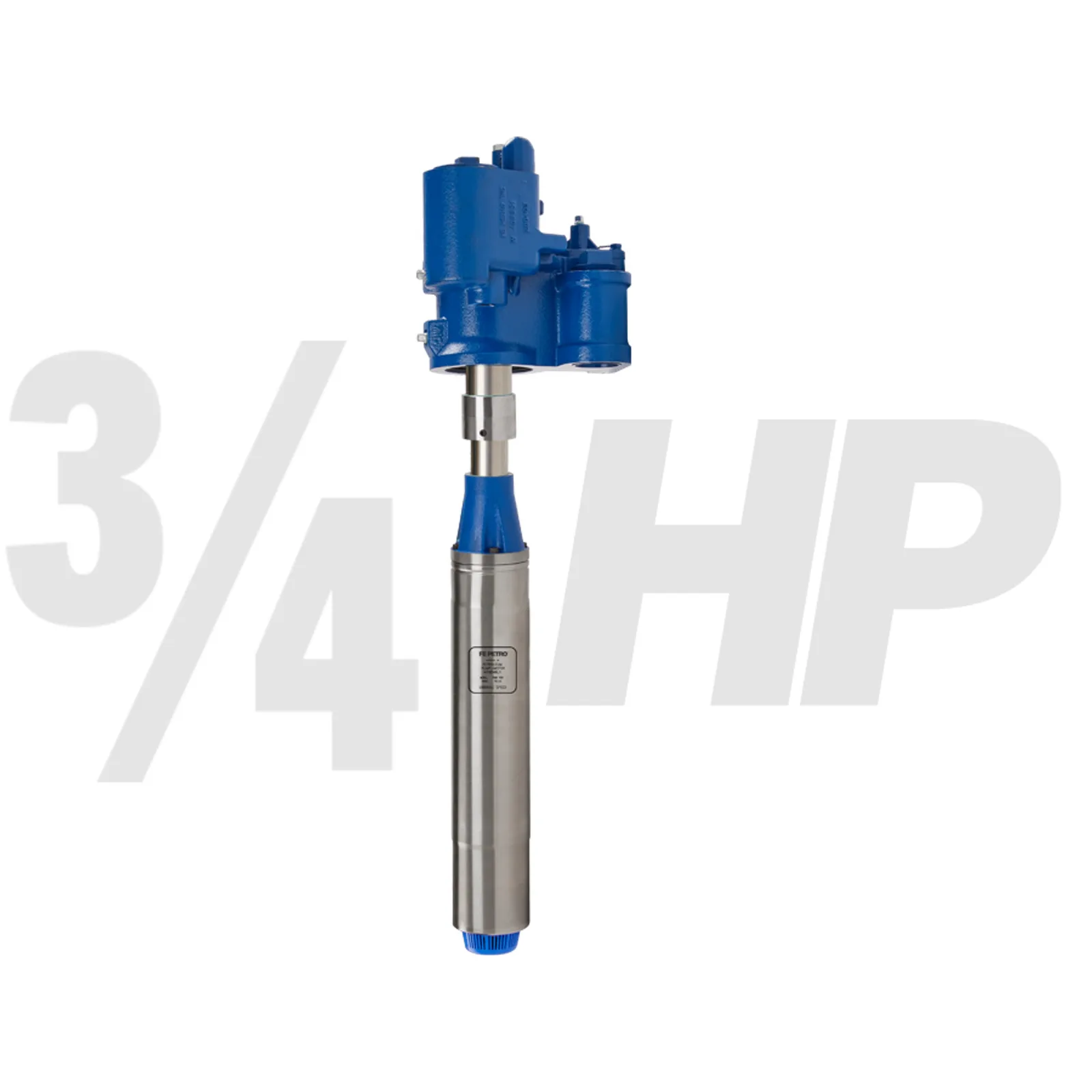

⅓ & ¾ Hp pumps

Fixed-speed pumps for low-throughput fuels. The ¾ Hp two-stage model reaches 30 psi at 60 Hz and 2.55 bar at 50 Hz, in variable and fixed length options.

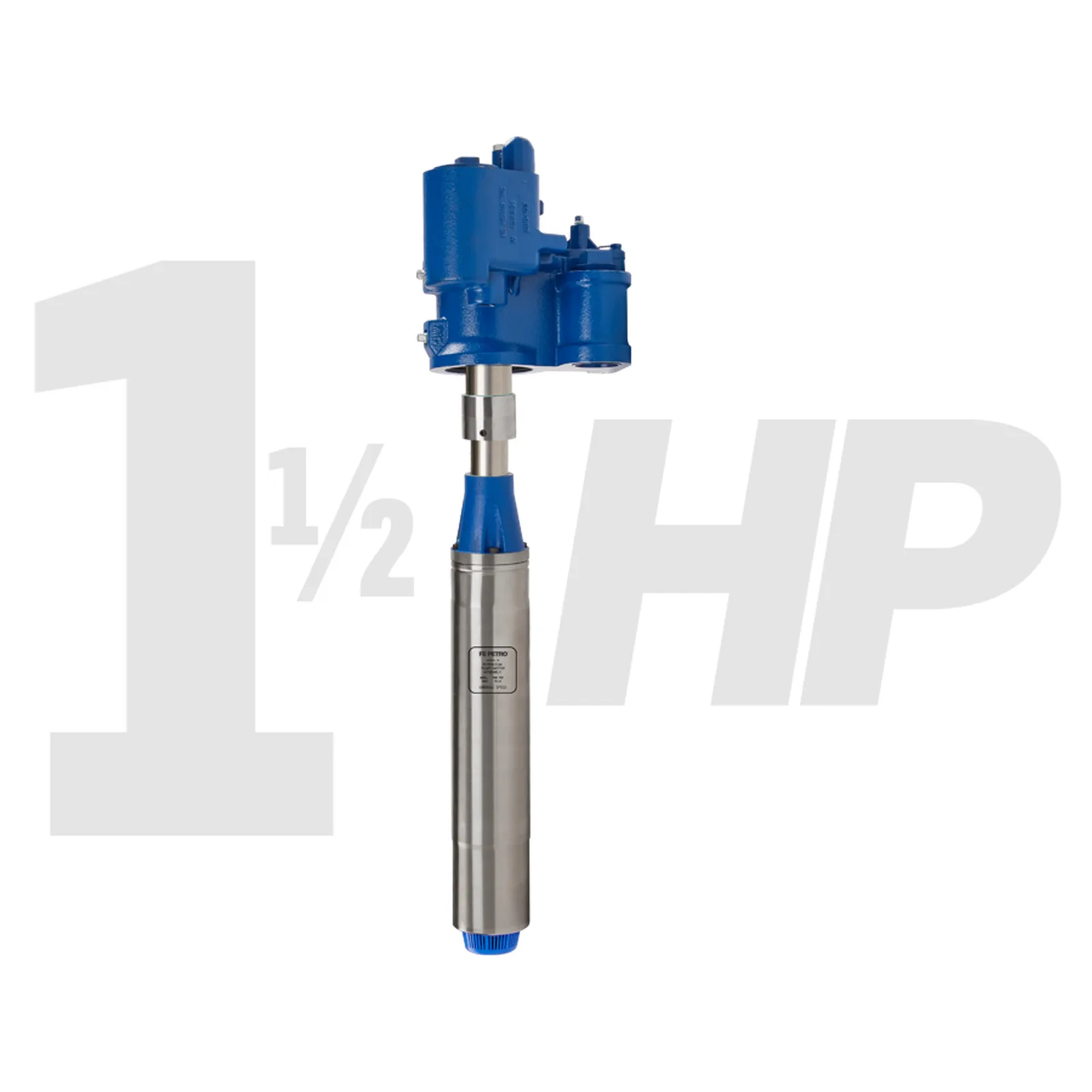

1½ Hp pumps

Fixed-speed pumps in standard and high-pressure versions: 32 psi and 45 psi at 60 Hz, or 2.62 bar and 3.31 bar at 50 Hz.

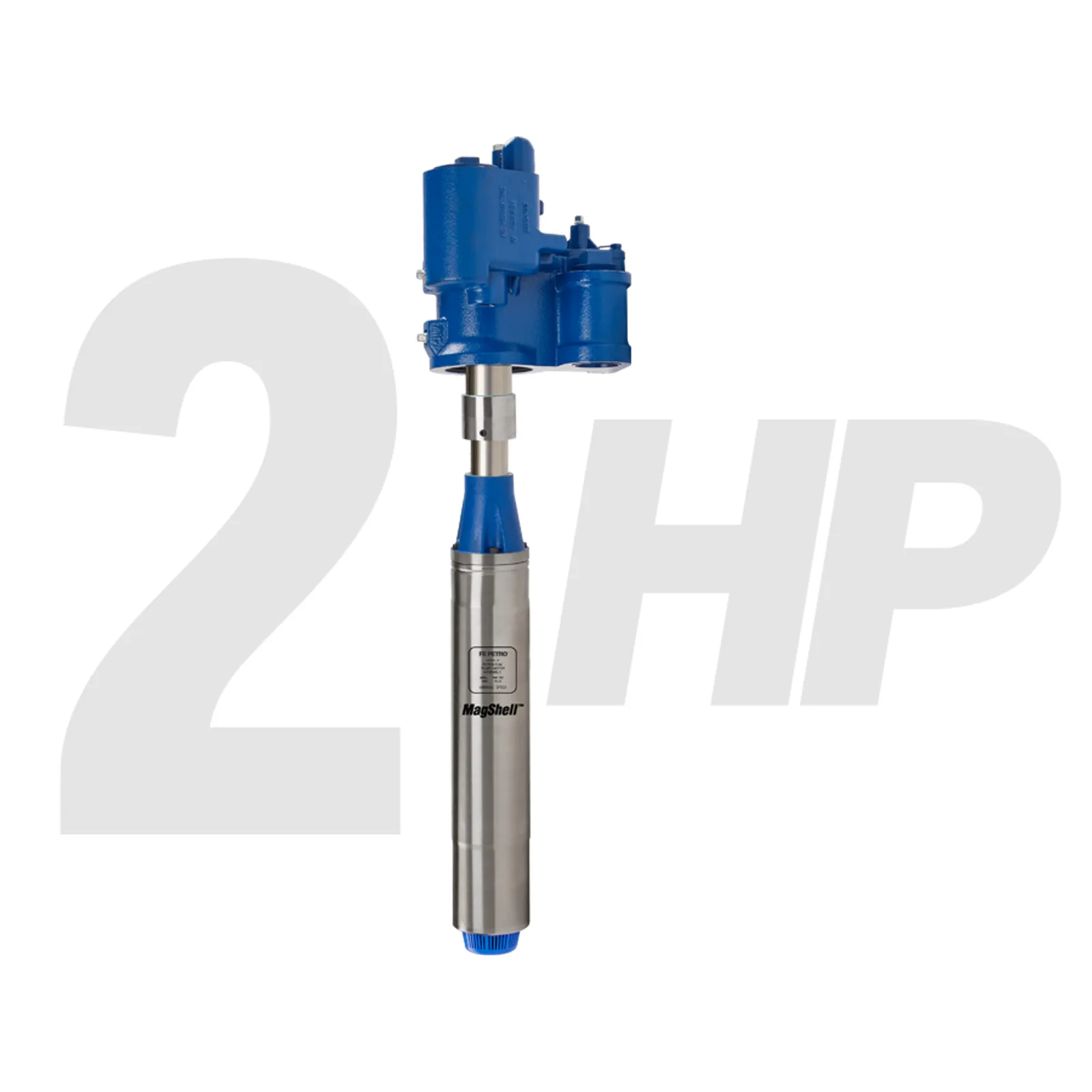

2 Hp pumps

Fixed-speed M200 (36 psi) and HM200 (45 psi) models at 60 Hz, plus variable speed versions with MagShell® and selectable operating pressure.

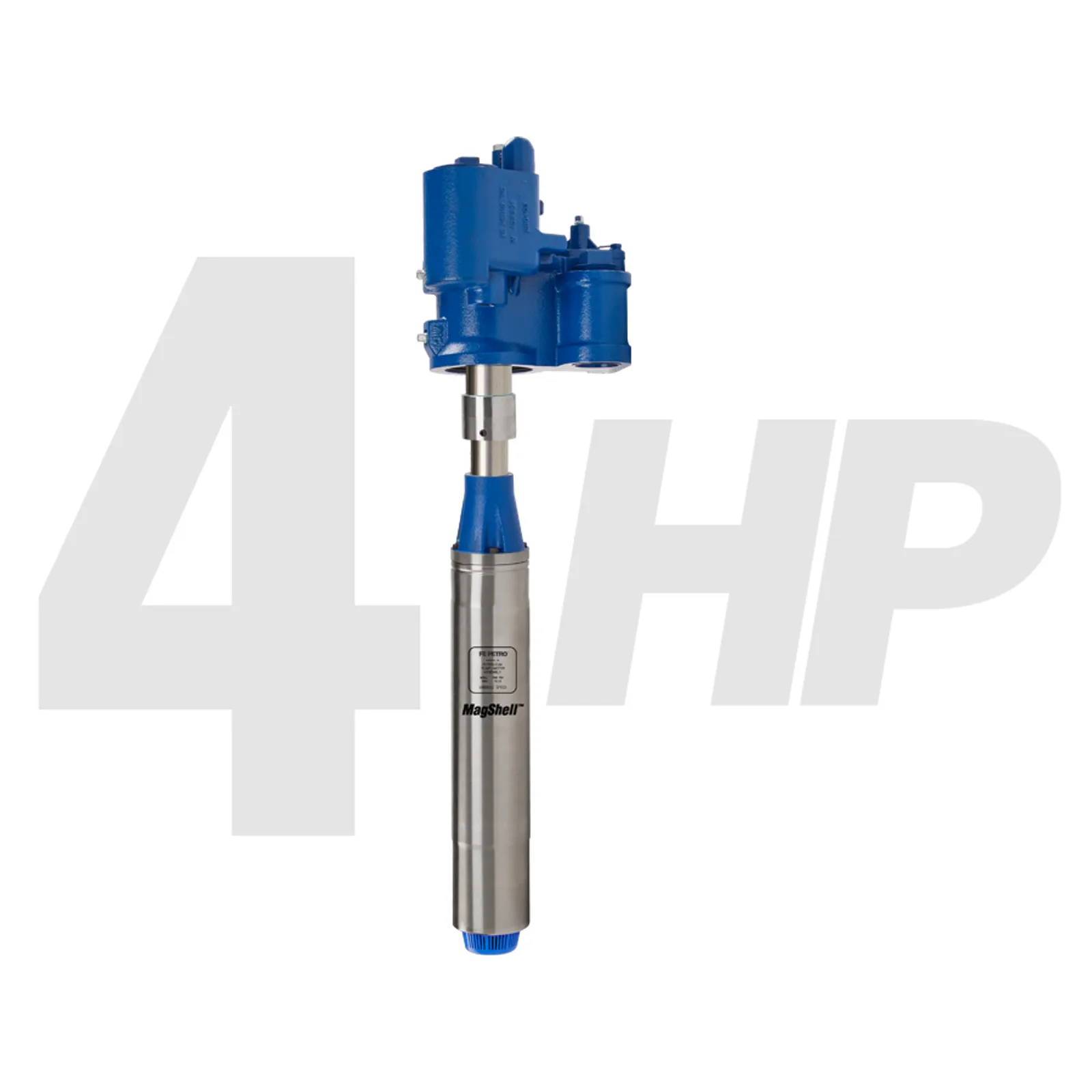

4 Hp variable speed pumps

Franklin's highest-flow 4" pump, up to 140 gpm, with MagShell® and operating pressure set on the controller between 1.65 and 2.90 bar at 50 Hz.

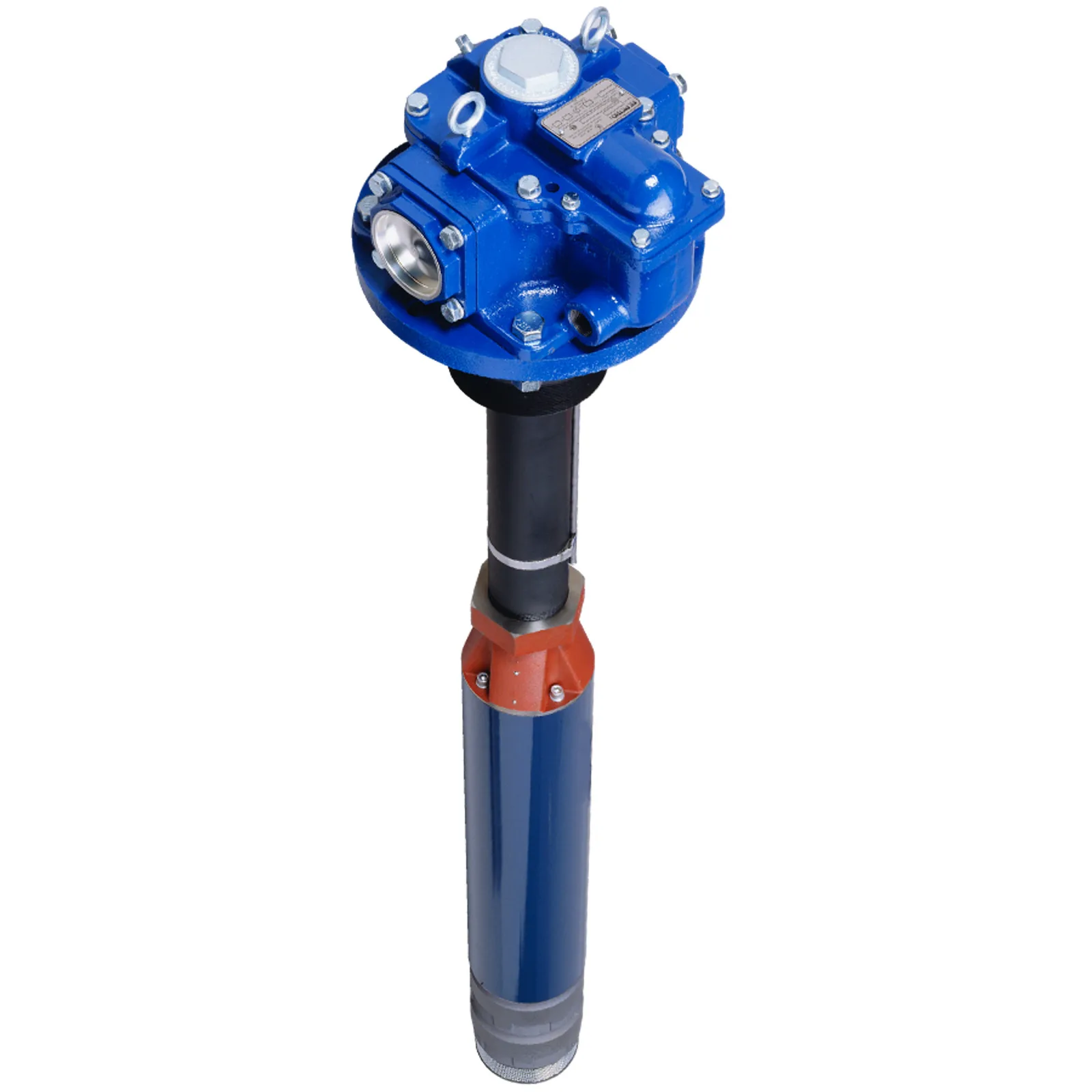

6" high capacity 3 and 5 Hp pumps

Multi-stage, three-phase pumps for high volumes and fast deliveries; 50 Hz models run on 380-415 VAC at 2875 rpm.

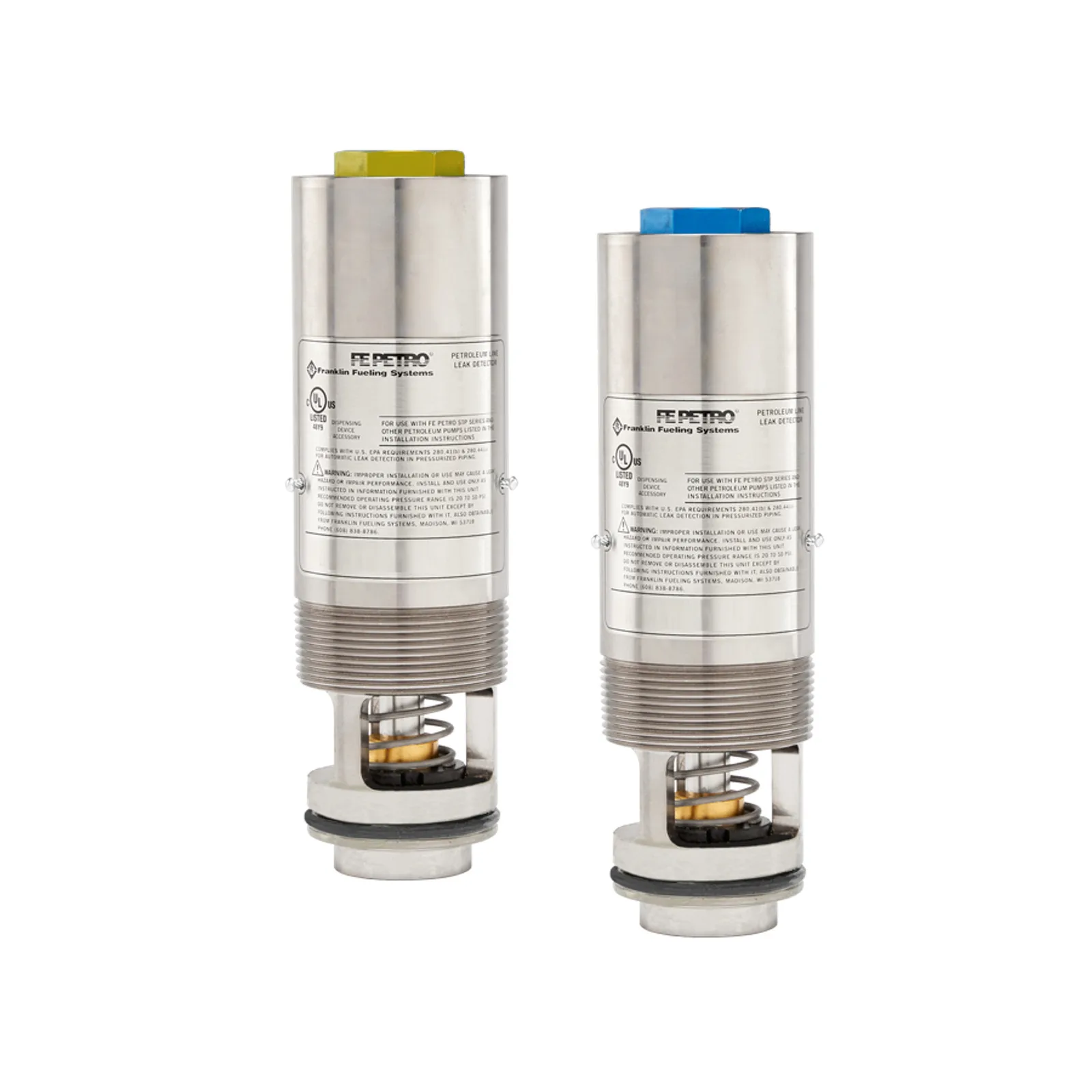

Mechanical leak detectors

MLD+ detectors for 4" pumps find line leaks equal to 3 gph at 10 psi, with blue MLD+G for gasoline and gold MLD+D for diesel. The MLD-HC covers 6" high capacity pumps.

MLD Mechanical Leak Detectors Datasheet

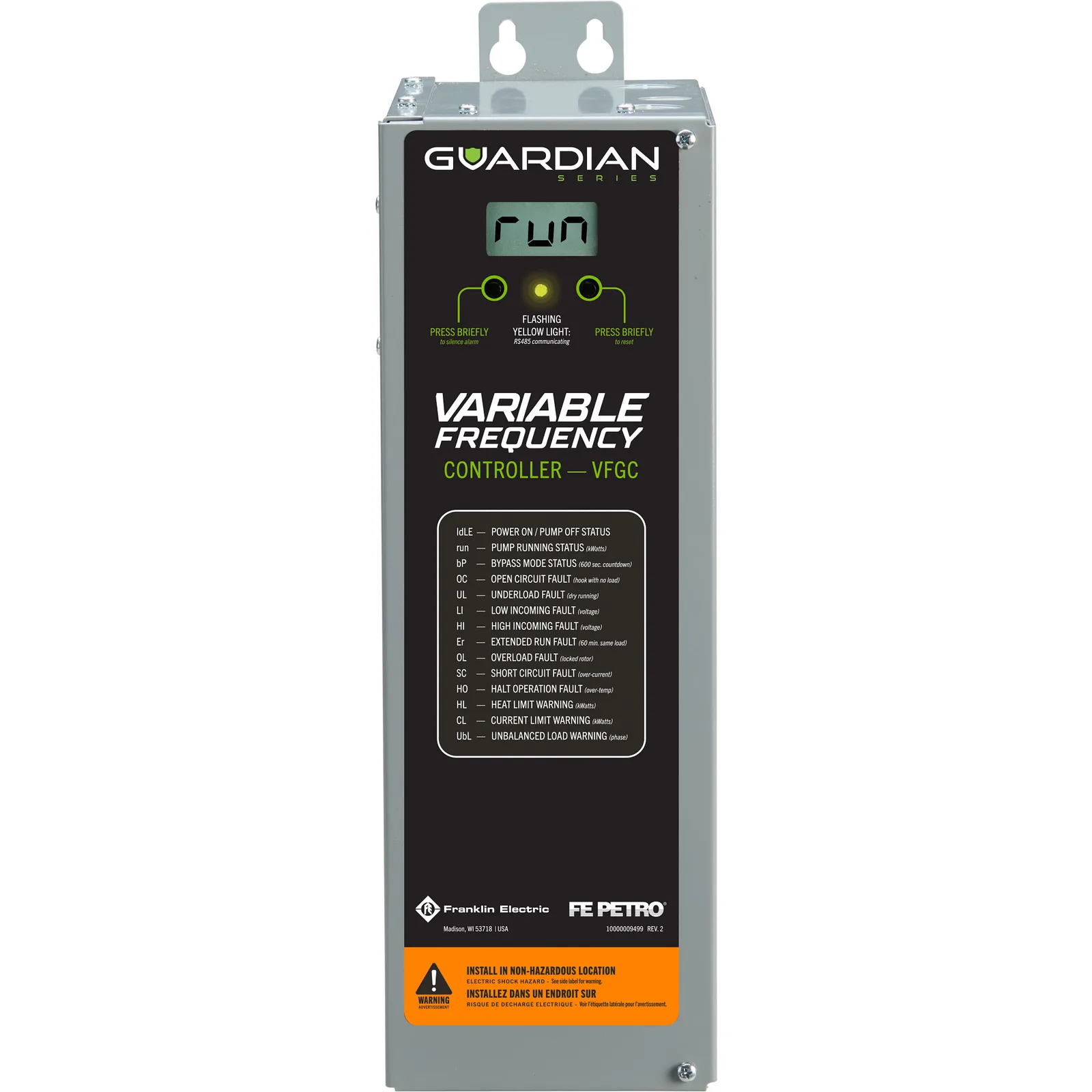

Guardian Series™ variable frequency controllers

Ramp FE PETRO® variable speed pumps up and down for steady flow at every nozzle, with fault diagnostics and protection built in.

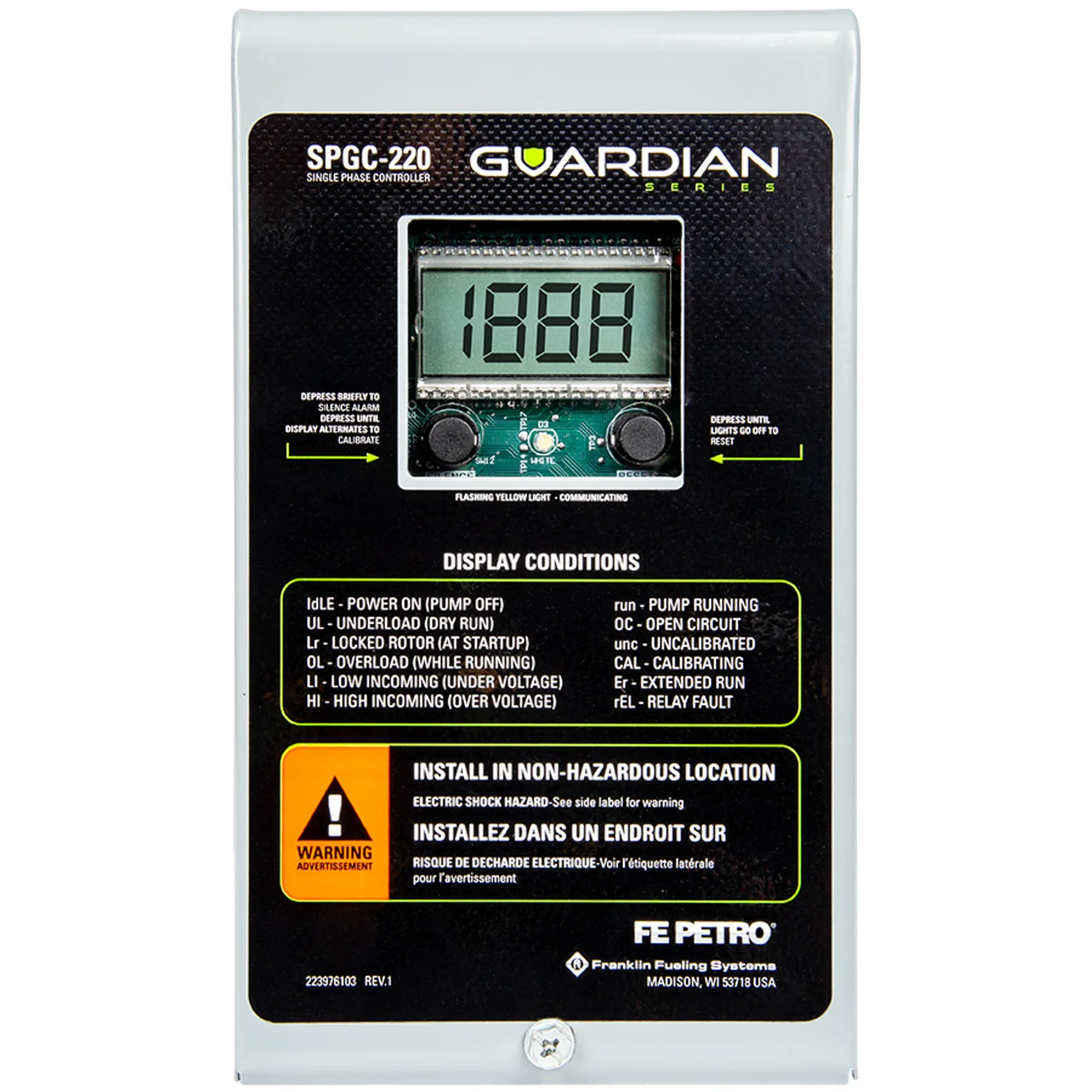

Guardian Series™ fixed-speed controllers

Single-phase controllers for pumps up to 2 Hp and three-phase TPGC-220 and TPGC-380 units up to 5 Hp, with fault logs, one-touch calibration and RS-485 to EVO™ consoles.

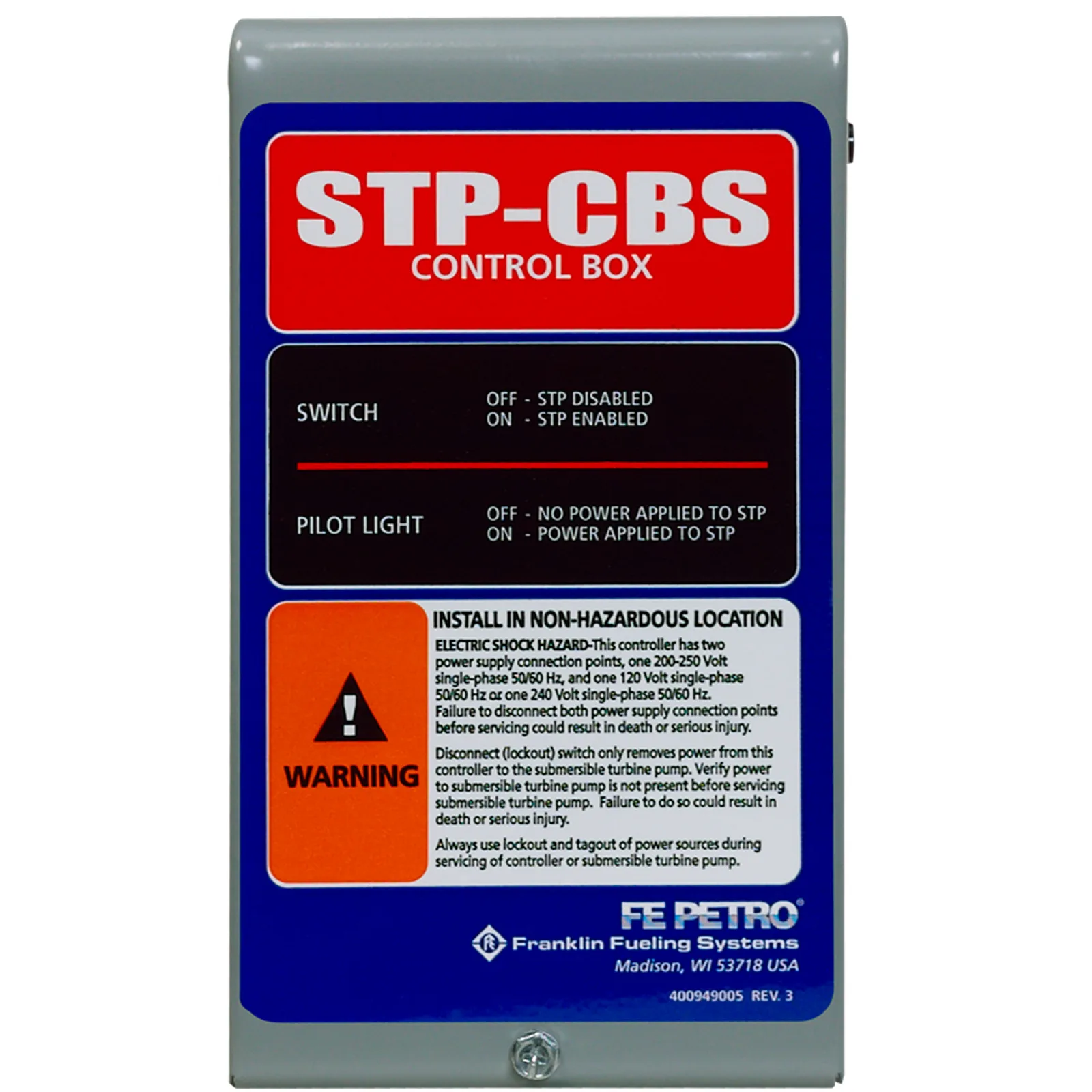

Control boxes and accessories

STP-CBS and STP-CBBS single-phase control boxes rated 30 A up to 2 hp, dispenser hook isolation for up to eight dispensers, magnetic starters for 3 and 5 hp pumps, and intake filter screens.

Specifications

Models and technical data

FE PETRO® 4" submersible pump pressures (from Franklin product pages)
Pump	Speed	Max. pressure 60 Hz	Max. pressure 50 Hz	Max. flow
¾ Hp	Fixed	30 psi	2.55 bar
1½ Hp standard	Fixed	32 psi (150, two-stage)	2.62 bar (three-stage)
1½ Hp high pressure	Fixed	45 psi (H150, three-stage)	3.31 bar (four-stage)
2 Hp standard	Fixed	36 psi (M200, two-stage)	2.55 bar (three-stage)
2 Hp high pressure	Fixed	45 psi (HM200, three-stage)	3.03 bar (four-stage)
2 Hp	Variable	24 to 42 psi deadhead, selectable on MagVFC™	1.65 to 2.90 bar deadhead, selectable on EcoVFC™	110 gpm
4 Hp	Variable	24 to 42 psi deadhead, selectable on MagVFC™	1.65 to 2.90 bar deadhead, selectable on EcoVFC™	140 gpm

Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
