Standard Float Kits
Product and water float sets for gasoline and diesel tanks
Overview

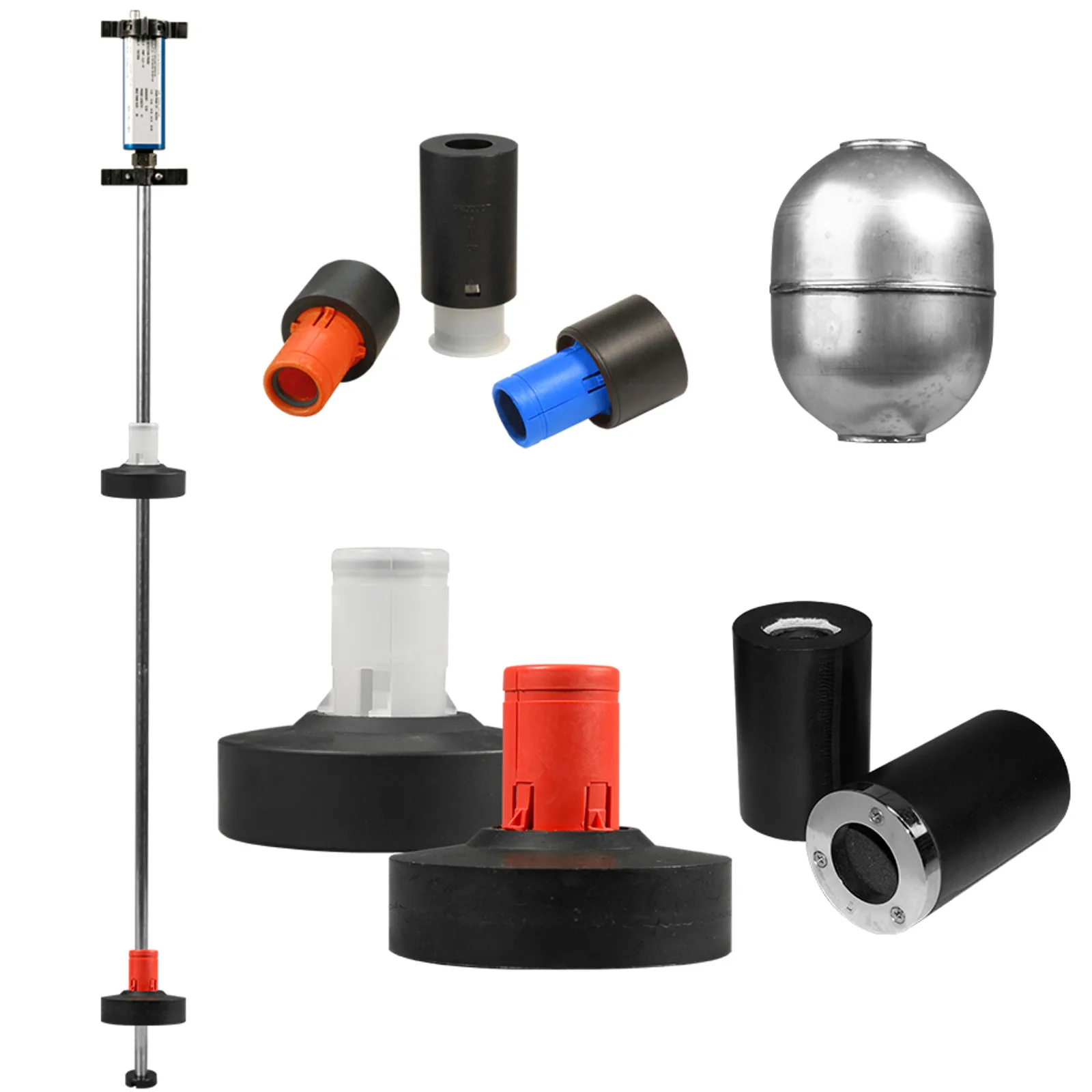

A magnetostrictive probe measures nothing on its own. It reads the positions of the magnetic floats that ride on its shaft. Franklin's standard float kits supply those floats as a matched pair: a product float that sits on the fuel surface and a weighted water float that sinks through the fuel and rests on any water layer at the tank bottom. One kit is ordered for each probe.
Kits are made for 2" and 4" riser openings, in separate gasoline and diesel versions. The water float ballast is stainless steel or nickel plated brass, and the floats are built from nitrile rubber and PVDF, which suit a wide range of petroleum products. Colour tells the versions apart in the field: water floats are red for gasoline and blue for diesel.
Riser size also affects how low the floats can read. With a 4" gasoline set (TSP-IGF4), water is detected from 0.75" and product from 4.25". The 2" gasoline set (TSP-IGF2) reads water from 1.00" and product from 7.73". Where an earlier water warning is needed, Franklin offers the low level water float for diesel or a phase separation kit for gasoline and ethanol blends.
Apex supplies the right float kit with every probe it installs in Lebanon and replaces worn floats during service visits.
Key features
- Each set contains one product float and one water float
- 2" and 4" kits for gasoline (TSP-IGF2, TSP-IGF4) and diesel (TSP-IDF2, TSP-IDF4)
- Colour-coded water floats: red for gasoline, blue for diesel
- Nitrile rubber and PVDF construction
- Stainless steel or nickel plated brass ballast in the water floats
- Compatible with a wide variety of petroleum products
Specifications
Standard Float Kits technical data
| Model | Description | Min. water level | Min. product level |
|---|---|---|---|
| TSP-IGF4 | 4" float set for gasoline tanks | 0.75" (1.91 cm) | 4.25" (10.80 cm) |
| TSP-IDF4 | 4" float set for diesel tanks | 0.75" (1.91 cm) | 4.16" (10.57 cm) |
| TSP-IGF2 | 2" float set for gasoline tanks | 1.00" (2.54 cm) | 7.73" (19.63 cm) |
| TSP-IDF2 | 2" float set for diesel tanks | 1.00" (2.54 cm) | 7.28" (18.50 cm) |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
