Franklin Fueling Systems · Probes & Sensors
Low Level Water Float for Diesel
Detects water in diesel tanks from ¼" for earlier corrosion warning
Overview
Water at the bottom of a diesel tank was once a minor nuisance. Franklin points out that changes to diesel composition in recent years have led to widespread corrosion caused by water in tanks, so the sooner water is found, the better. The FMP-IDF4E kit is built for that job: its water float registers water from ¼" (0.25"), where a standard float only starts reading at ¾".
Franklin quantifies the difference on a typical 8' by 8,000 gallon tank. A standard float first sees water at about 13 gallons, while the low level float responds to as little as 4 gallons, a reduction of 69%. The station gets its alarm while the water can still be pumped out easily, before it has spread corrosion through the system.

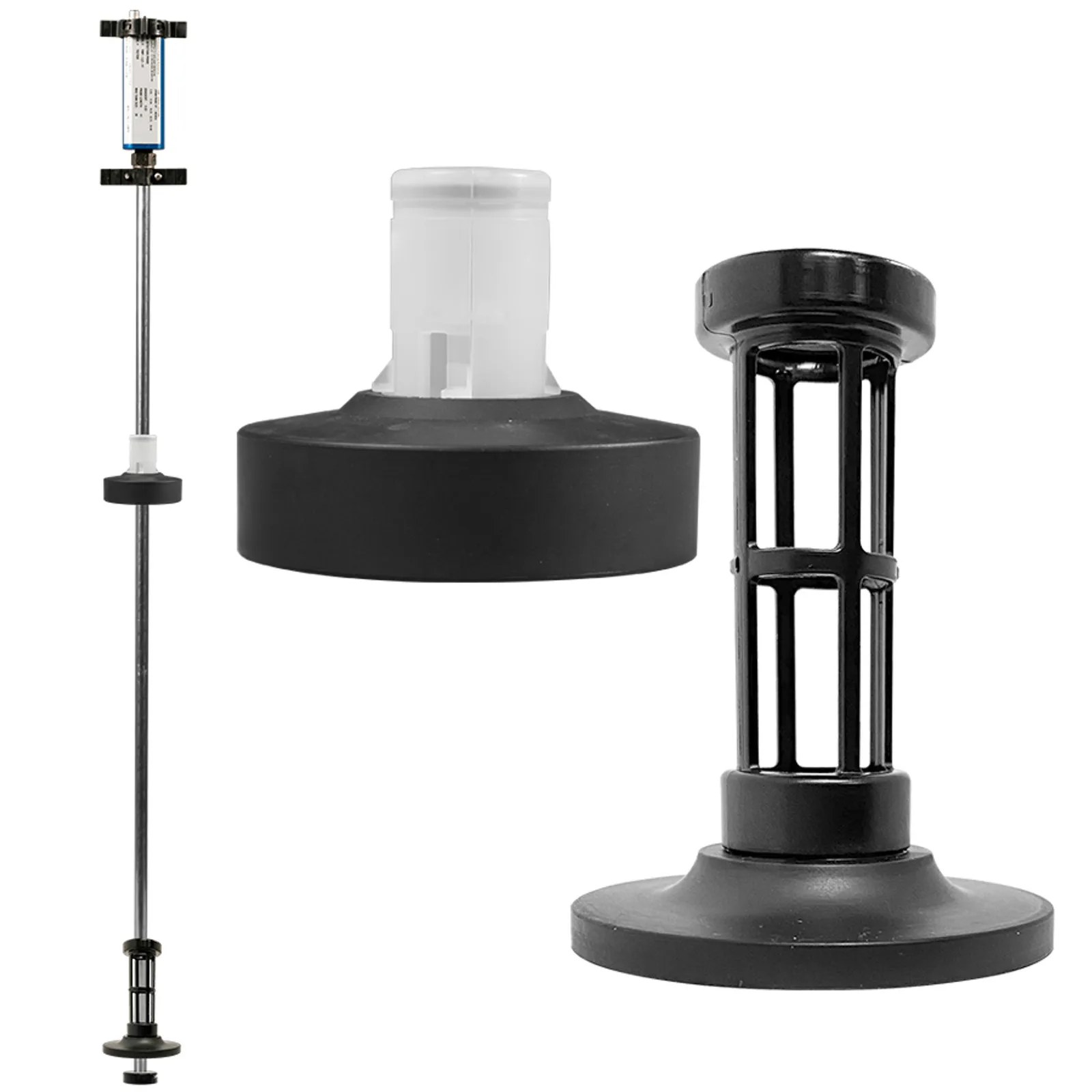

The kit pairs a diesel product float with the low level water float and adds a compact probe foot so it fits new or existing probes. It is made for 4" risers and recommended for bottom-mounted FMP-LL3 digital probes on EVO™ 200, 400, 600 and 6000 gauges. Franklin also suggests pairing it with its Corrosion Control™ System of water separator, desiccant packs and corrosion sensors for an extra layer of protection.
Apex supplies and fits the low level water float in Lebanon, often as an upgrade on existing diesel tanks.
Key features
- Detects water from ¼" (0.25") instead of ¾"
- Alarms on roughly 4 gallons of water in an 8' by 8,000 gallon tank
- Kit includes diesel product float, low level water float and compact probe foot
- For 4" riser pipes
- Recommended for bottom-mounted FMP-LL3 digital probes
- Works alongside the Corrosion Control™ System
Specifications
Low Level Water Float for Diesel technical data
| Float | Min. water level | Min. product level |
|---|---|---|
| FMP-IDF4E low level water float for diesel | 0.25" (0.64 cm) | 3.75" (9.53 cm) |
| TSP-IDF4 standard 4" diesel float | 0.75" (1.91 cm) | 4.16" (10.57 cm) |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
Low Level Water Float for Diesel: common questions
- Can it be fitted to an existing probe?
- Yes. The kit includes a compact probe foot for new or existing probes, and it is recommended for bottom-mounted FMP-LL3 digital probes.
- What riser size does it need?
- It is designed for 4" riser pipes.
- Is it for gasoline tanks too?
- No. It is a diesel kit. For gasoline and ethanol blends, Franklin offers phase separation float kits.
Request a Quotation
Get a quotation for the Franklin Fueling Systems Low Level Water Float for Diesel.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
