Digital Inventory & Leak Detection Probes (LL3)
FMP-LL3 magnetostrictive probes with digital output for EVO™ tank gauges
Overview

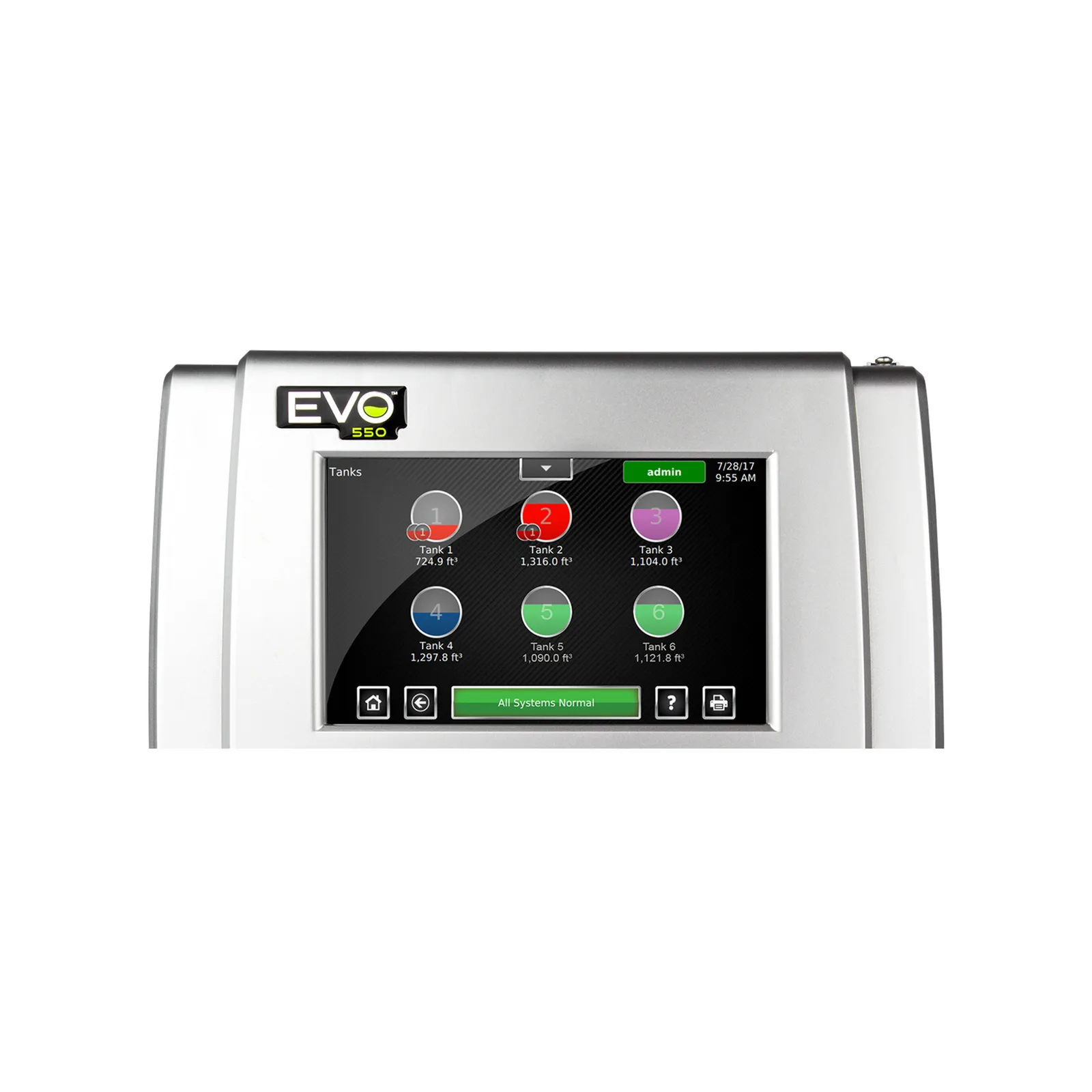

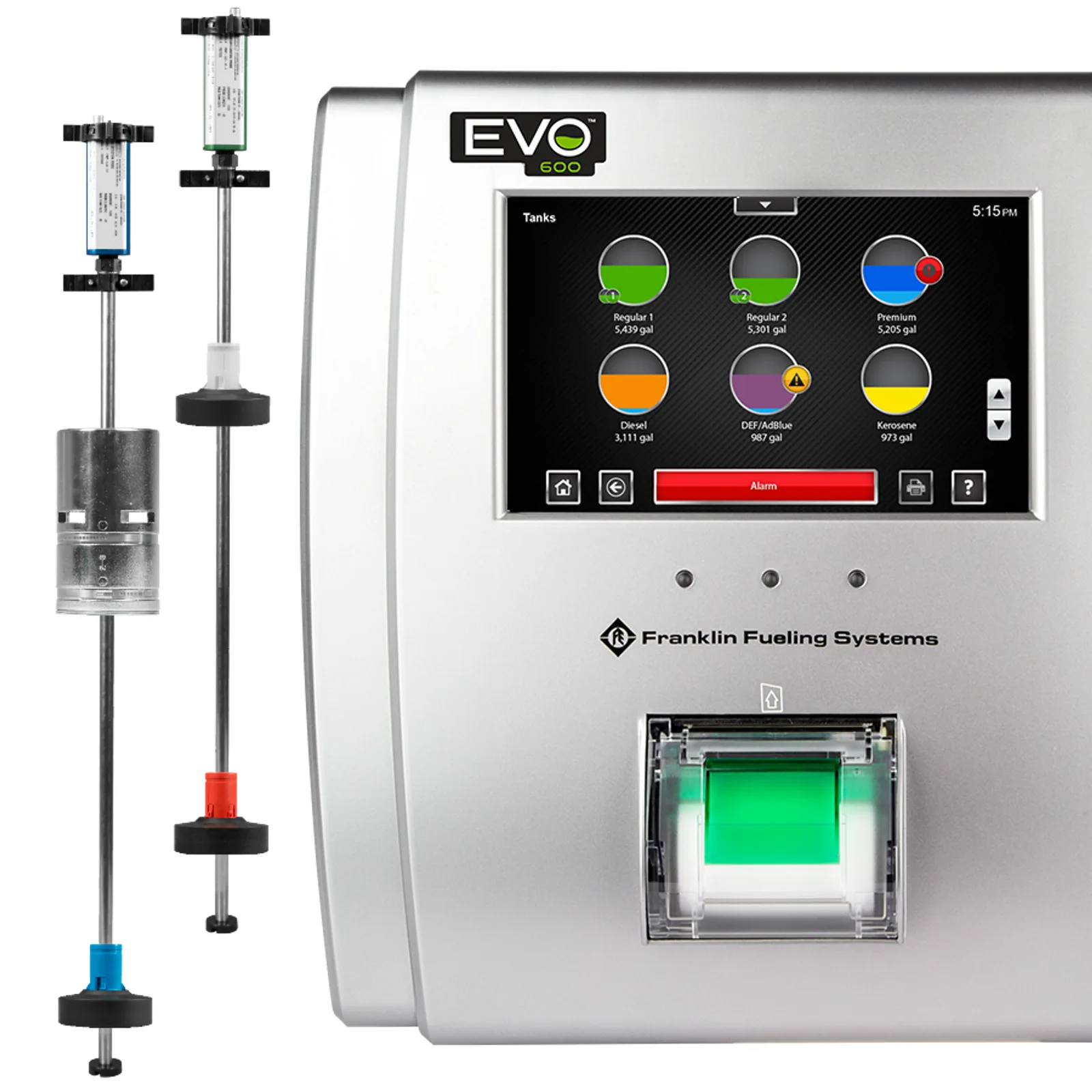

Franklin's FMP-LL3 digital probes are the standard in-tank sensors for EVO™ Series gauges. Each probe sends its readings to the console as digital data instead of an analog signal, and it also reports its own gradient, type, length and serial number. The technician no longer types those values in, which removes a common source of setup errors.
Two families share the same body. FMP-LL3 leak detection probes are meant for underground tanks where static or SCALD® tank testing is required. FMP-LL3-I inventory control probes cover aboveground tanks, oil waste, and underground tanks that do not need in-tank leak testing. Standard lengths run from 2' to 12' in fourteen steps, and Franklin can supply other lengths on request.
Installation is quick. The probe rests on the tank bottom on its bottom-mount fitting, so no hanging suspension kit is needed, and a threaded electrical connector means the probe can be removed without cutting and re-splicing the field wires. Typical product level accuracy is +/- 0.008" (0.2 mm), with 0.0006" (0.015 mm) resolution, and five thermistors in the shaft provide the temperature data used for volume correction.
Apex supplies and installs FMP-LL3 probes in Lebanon, sized to each tank, with the matching float kits and riser hardware.
Key features
- Digital link that passes probe gradient, type, length and serial number to the console
- FMP-LL3 leak detection and FMP-LL3-I inventory control versions
- Standard lengths from 2' to 12', with other lengths on request
- Bottom-mount design with no suspension kit required
- Screw-in connector for removal without re-splicing
- Product level accuracy of +/- 0.008" (0.2 mm)
- Fits 2", 3" or 4" risers
- UL & cUL listed, ATEX, IECEx and OIML
Specifications
Digital Inventory & Leak Detection Probes (LL3) technical data
| Parameter | Product | Water |
|---|---|---|
| Level accuracy | +/- 0.008" (0.2 mm) | +/- 0.04" (1.0 mm) |
| Level repeatability | +/- 0.001" (0.025 mm) | +/- 0.01" (0.25 mm) |
| Level resolution | 0.0006" (0.015 mm) | |
| Temperature accuracy | +/- 0.54° F (0.3° C) | |
| Temperature repeatability | +/- 0.36° F (0.2° C) | |
| Temperature resolution | 0.018° F (0.01° C) |
| Parameter | Value |
|---|---|
| Operating temperature | -40° to 140° F (-40° to 60° C) |
| Storage temperature | -40° to 158° F (-40° to 70° C) |
| Temperature sensors | 5 thermistors located in the shaft |
| Probe cable | 10' three conductor cables with shields and polyurethane jacket |
| ATG compatibility | EVO™ Series, TS-5, TS-550, TS-5000, Colibri®, TS-1001/2011/750/504/508 |
| Approvals | UL & cUL listed, ATEX, IECEx, OIML |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
Digital Inventory & Leak Detection Probes (LL3): common questions
- Do I need a leak detection probe or an inventory probe?
- Choose the FMP-LL3 leak detection model where static or SCALD® tank testing is required. The FMP-LL3-I inventory model suits aboveground tanks and tanks that do not need in-tank leak testing.
- What lengths are available?
- Franklin lists fourteen standard lengths from 2' (FMP-LL3-29) to 12' (FMP-LL3-149). Other lengths are available on request.
- Are floats included with the probe?
- No. All float kits are sold separately and chosen by riser size and fuel type.
