Probe Installation Kits
Riser seals, caps and splice connectors for mounting Franklin probes
Overview

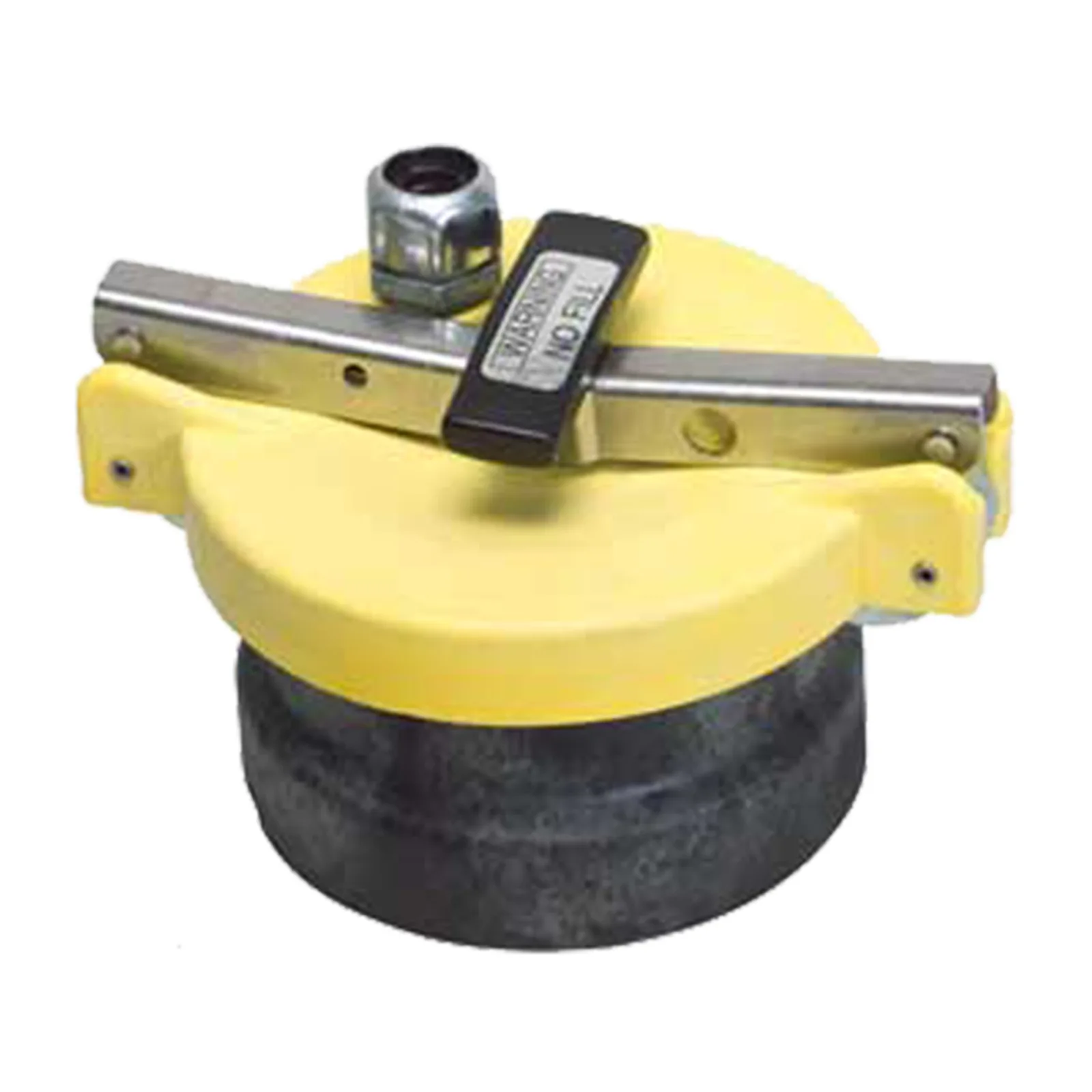

The probe install kit is the part a station manager sees: the cap on the probe riser. Its job is to seal the riser tightly so rain and surface water cannot run down into the tank, while still letting a technician get at the probe. Franklin's standard 4" kits use a quick-release cap, so the probe can be checked or pulled for maintenance without tools or wasted time.

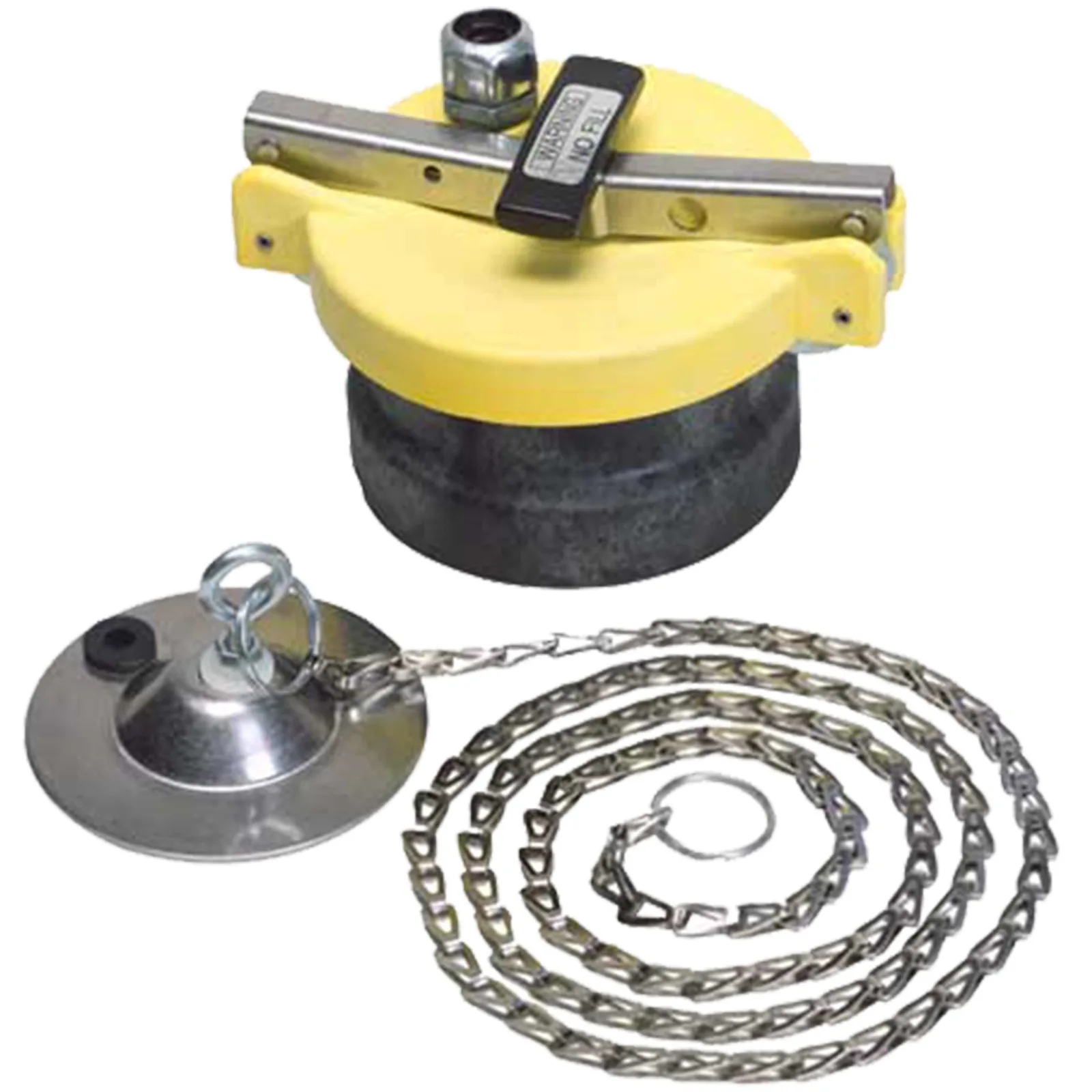

There are two families, matched to the way the probe is mounted. Bottom-mount kits (TSP-C2A and TSP-C4A, or TSP-C2B and TSP-C4B for BSP threads) seal the riser for probes that stand on the tank floor, which suits inventory probes and FMP-LL3 digital probes. Suspension kits (TSP-K2A and TSP-K4A, or the BSP-threaded K2B and K4B) hang LL2 leak detection probes. This keeps the probe isolated from tank deflection and truly vertical, so the floats move freely and readings stay accurate.
The electrical connection matters as much as the mechanical one. Franklin's TSP-KW30 splice connectors join field wiring without stripping or twisting: the conductors are pushed into a three-port connector and pressed, and a factory sealant keeps moisture out. For direct burial runs or where weatherproof junction boxes are not used, TSP-DB1 and TSP-DB10 direct burial splice kits apply, and their epoxy is dispensed with the DBTOOL.
Apex supplies the correct install kit, riser seals and splice parts with every Franklin probe it installs in Lebanon.
Key features
- Bottom-mount kits for 2" and 4" risers, in standard or BSP threads
- LL2 leak detection suspension kits for 2" and 4" risers
- Quick-release cap on standard 4" models
- Seal against water intrusion into the tank
- TSP-UVPK ultraviolet protection kit for probes on aboveground tanks
- TSP-KW30 pack of 30 22-14 AWG splice connectors with factory sealant
- Direct burial splice kits for buried cable runs
Specifications
Probe Installation Kits technical data
| Model | Description |
|---|---|
| TSP-C2A / TSP-C2B | Mag probe install kit for 2" risers / with BSP threads |
| TSP-C4A / TSP-C4B | Mag probe install kit for 4" risers / with BSP threads |
| TSP-K2A / TSP-K2B | LL2 leak detection suspension install kit for 2" risers / with BSP threads |
| TSP-K4A / TSP-K4B | LL2 leak detection suspension install kit for 4" risers / with BSP threads |
| 600-0180 | Quick disconnect probe cable |
| TSP-KW30 | Pack of 30 3M™ splice connectors |
| TSP-UVPK | Ultraviolet protection kit for probe electronics in AST applications |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
Probe Installation Kits: common questions
- Which kit do I need for a digital FMP-LL3 probe?
- A bottom-mount kit (TSP-C2A or TSP-C4A, or the B versions for BSP threads), since digital probes rest on the tank bottom and need no suspension hardware.
- Why do LL2 leak detection probes use a suspension kit?
- The suspension kit isolates the probe from tank deflection and holds it vertical so the floats move freely for accurate leak testing.
- Do the splice connectors need wire stripping?
- No. The wires are inserted and the connector is pressed down. A factory sealant protects the joint from moisture.
Request a Quotation
Get a quotation for the Franklin Fueling Systems Probe Installation Kits.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
