EZ FIT System
Flanged connector ends that are finished at the parts counter
Overview

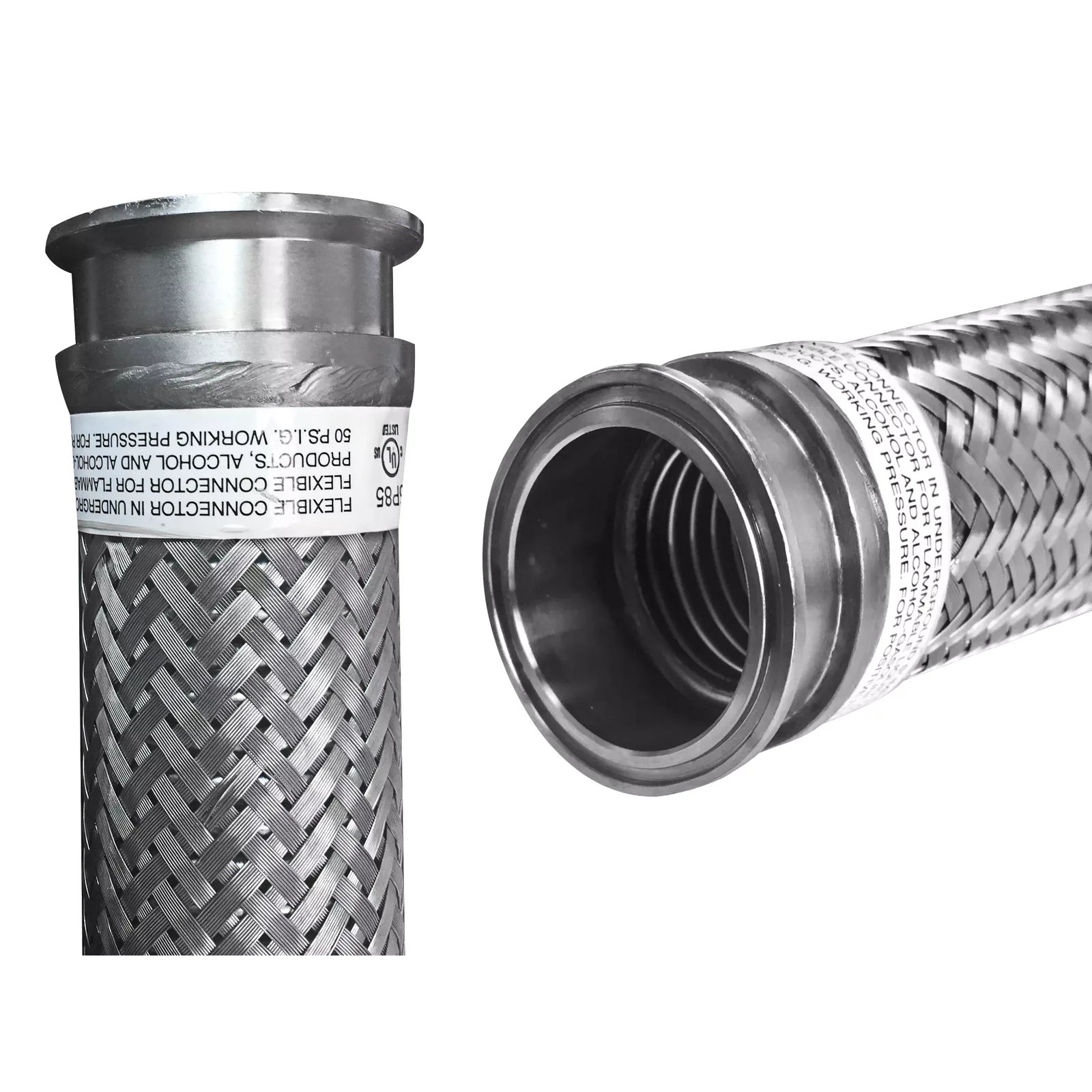

The EZ FIT system changes how flexible connectors are stocked and fitted. Instead of ordering a separate welded connector for every pipe type and thread, a distributor holds connectors with an EZ FIT flange on one end, plus a small set of quick release fittings. The final connection is chosen and assembled on the day, so one connector can be made to suit APT® XP, UPP® or fiberglass pipe without waiting for a special order.

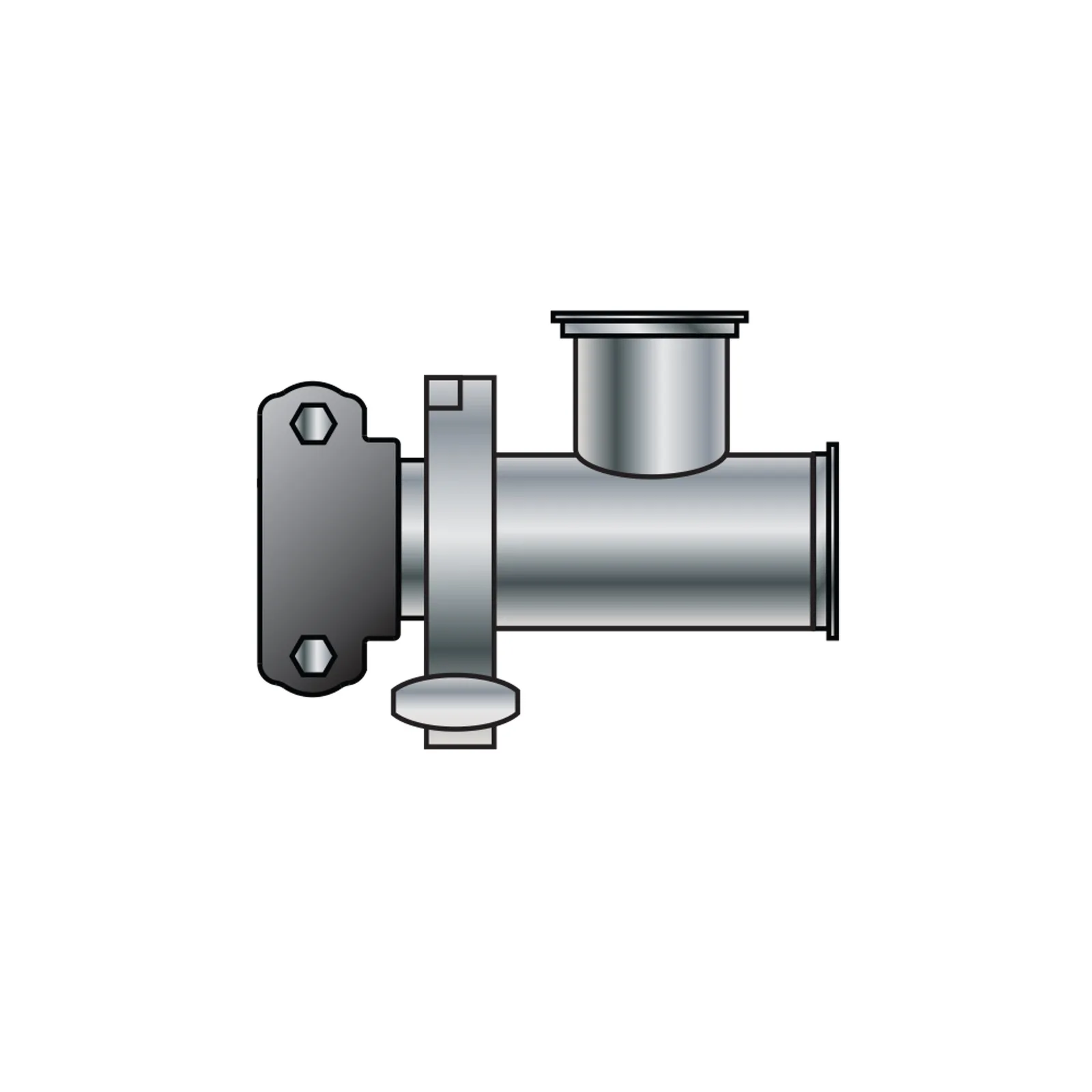

Two flanged parts are joined with a gasket placed between them and a single-pin EZ FIT clamp that is closed around both flanges and tightened with a wing nut. The joint is watertight, needs no thread sealant, and works as a swivel, which makes alignment in a crowded sump much easier. It can also be undone for service without cutting or breaking pipe.
Franklin's guide gives ready-made layouts for the common jobs: connecting 1¾" APT® XP, 2" UPP® or 2" fiberglass pipe to a submersible pump manifold, to a shear valve riser, or to an extractor vent valve. The most used connector lengths are 12", 15", 18" and 24". Choosing an EZ FIT male end (EZM) instead of a hex male end adds a second break point nearer to grade, which shortens maintenance work. Apex keeps EZ FIT parts on hand in Lebanon so sump connections can be completed without delays.
Key features
- Flange end on the connector accepts any EZ FIT quick release fitting
- Single-pin clamp with wing nut and a gasket per joint
- Watertight connection that also acts as a swivel
- Disconnects for service without breaking pipe
- Common stocked lengths of 12", 15", 18" and 24"
- Fittings for APT® XP, UPP® and glued or threaded fiberglass pipe
- Optional EZM end adds a second disconnection point closer to grade
Specifications
EZ FIT System technical data
| Model | Description |
|---|---|
| EZ10CLAMP | 1" EZ Fit clamp |
| EZCLAMP | 2" EZ Fit clamp |
| EZ30CLAMP | 3" EZ Fit clamp |
| 407493001 | 1" EZ Fit gasket |
| 407493002 | 2" EZ Fit gasket |
| 407493003 | 3" EZ Fit gasket |
| EZX20HMPL | 2" EZ Fit × 2" hex male, nickel plated |
| EZX20FGPL | 2" EZ Fit × 2" fiberglass glue pipe, nickel plated |
| EZXEZ90 | 2" EZ Fit × 2" EZ Fit 90° elbow, stainless steel |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
EZ FIT System: common questions
- How is an EZ FIT joint sealed?
- A gasket sits between the two flanges and a single-pin EZ FIT clamp is closed around them and tightened with its wing nut.
- Which pipe systems can EZ FIT connect to?
- Franklin publishes fittings for 1¾" APT XP pipe, 2" and 3" UPP pipe and 2" fiberglass pipe, both glued and threaded.
- What is the benefit of an EZM end?
- It adds a pre-assembled EZ FIT male connection, giving a second swivel and a disconnection point higher up and closer to grade.
Request a Quotation
Get a quotation for the Franklin Fueling Systems EZ FIT System.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
