NUPI Industrie Italiane · Welding equipment
Multifunction welding unit in suitcase
The barcode multifunction welder sealed into a waterproof, shockproof Peli case.
Overview
Forecourt trenches are wet, dusty and hard on equipment. For that work NUPI builds its multifunction welder into a Peli case that is watertight, sand-proof, dustproof and able to take shocks, certified for temperatures from -18 °C to 50 °C. The welder, its cables and the barcode reader are all housed in the case, so the kit travels and stores as one closed box.

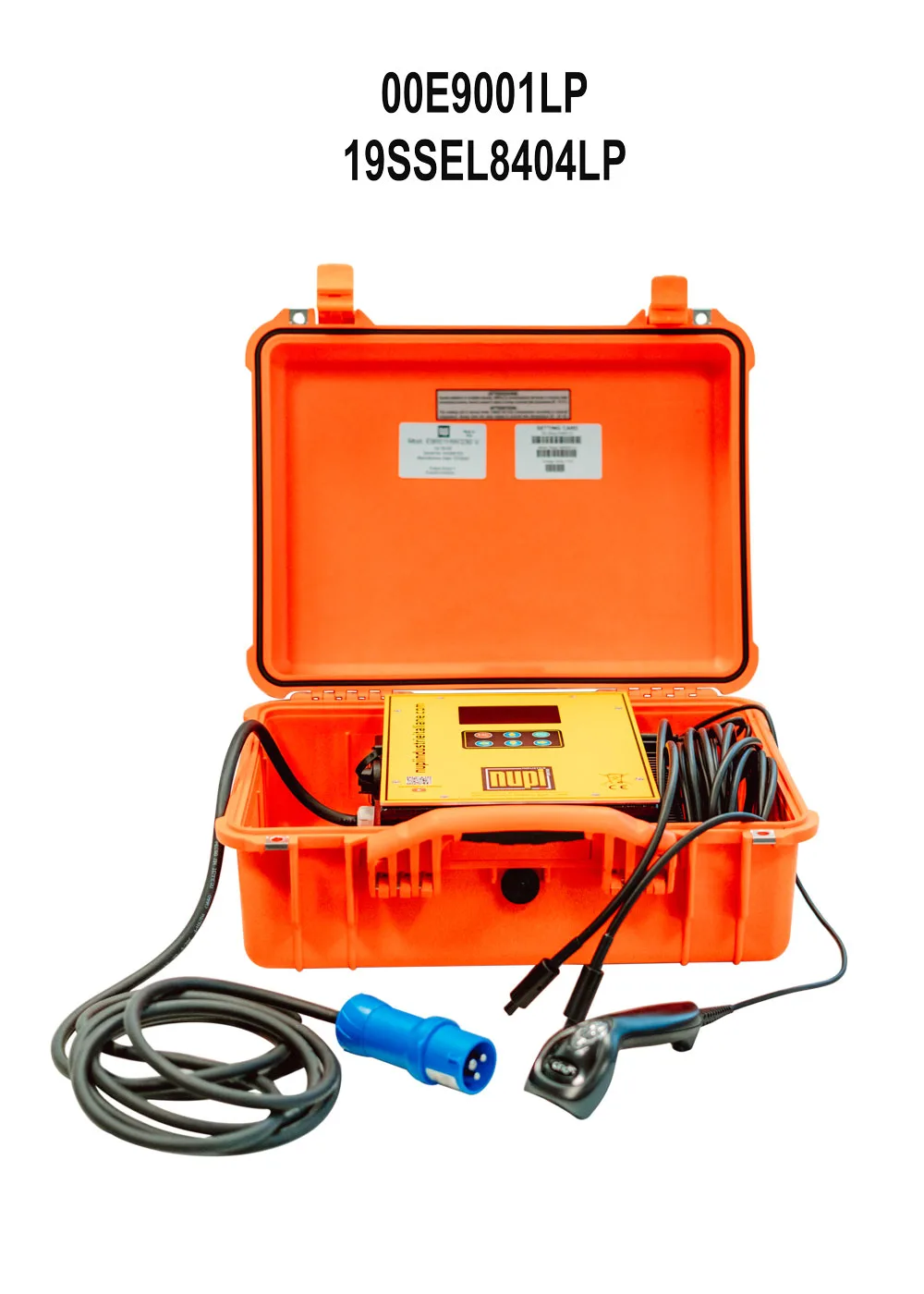

Two sizes are made. The 00E9001P (also coded 19SSEL8404P) welds fittings from 20 to 400 mm, and the lighter 00E9001LP (19SSEL8404LP) from 20 to 160 mm, which covers the usual SMARTFLEX forecourt sizes and keeps the carrying weight to 16 kg. Inside the case is the full multifunction unit: barcode reading to ISO 13950 or manual time and voltage entry, ambient temperature compensation, 10,000 weld memory, eight pressure test memories and a connector for a pressure test unit. A USB port in the upper compartment exports welding reports to a USB key.
NUPI's quick guide walks the operator through cutting, scraping, marking and clamping before every weld, and the unit reminds the operator of these steps on screen. Apex supplies the suitcase units in Lebanon and can recommend the right size for a contractor's typical pipe range.
Key features
- Built into a watertight, sand-proof, dustproof and shock-resistant Peli case
- Case certified for -18 °C to 50 °C
- Two sizes: 20 to 400 mm (00E9001P) and 20 to 160 mm (00E9001LP)
- Barcode reading to ISO 13950 or manual entry of time and voltage
- Conforms to UNI 10566 (multifunction type) and CE requirements
- 10,000 weld memory and 8 pressure test memories of 500 parameters each
- Built-in connector for a pressure test unit and USB port for data download
- On-screen reminder of pipe preparation before each weld
- IP 54 protection; ambient temperature sensor
Specifications
Multifunction welding unit in suitcase technical data
| Item code | Welding range (mm) | Welding range (in) | Case dimension (mm) | Weight | Max absorbed power | Working range | Duty cycle 60% |
|---|---|---|---|---|---|---|---|
| 00E9001P | 20–400 | 1/2–16 | 510 x 436 x H217 | 24 kg | 3600 VA | up to 80 A peak | 55 A |
| 00E9001LP | 20–160 | 1/2–6 | 510 x 410 x H200 | 16 kg | 1600 VA | up to 40 A peak | 27 A |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
Multifunction welding unit in suitcase: common questions
- How is the suitcase unit different from the standard multifunction welder?
- The welding electronics are the same multifunction type, but they are built into a sealed Peli case that resists water, sand, dust and shocks, which suits open trench work.
- Which size covers SMARTFLEX forecourt pipe?
- The 00E9001LP welds 20 to 160 mm, which covers the common SMARTFLEX sizes. The 00E9001P goes up to 400 mm.
- Can it record pressure tests?
- Yes. It has eight pressure test memories and a connector for a pressure test unit, and the data downloads by USB with the weld records.
Request a Quotation
Get a quotation for the NUPI Industrie Italiane Multifunction welding unit in suitcase.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
