Does SMARTWELD need a phone to weld?

No. It can be used from its own keypad with the barcode reader or manual entry. Smartphone control is a separate mode that adds app control, GPS tagging and cloud storage.

Where are SMARTWELD records stored?

Weld and pressure test data are downloaded from the machine to the NupiWeldingApp and stored in NUPI's cloud (nupiweldingcloud.com), where authorised users can access them with a password.

How is the welder's location recorded?

The app stores the GPS position of the mobile device for each weld, which builds a map of the installation.

NUPI Industrie Italiane · Welding equipment

SMARTWELD

Suitcase welder controlled from a phone, with GPS-mapped, cloud-stored weld records.

WhatsApp us

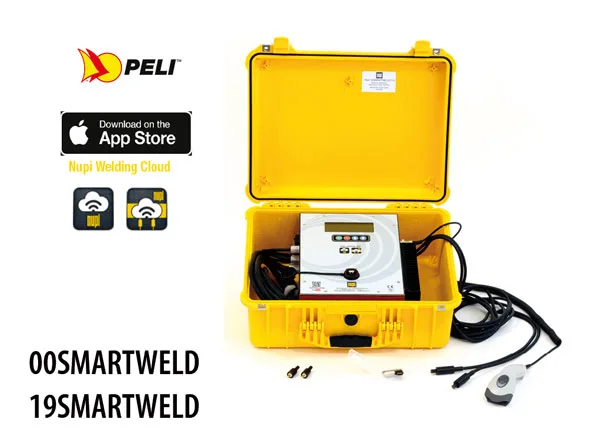

NUPI SMARTWELD electrofusion welding unit in its suitcase, used with the NupiWeldingApp

Overview

SMARTWELD is the connected version of NUPI's suitcase welder. Instead of keeping records only in the machine, it pairs with the free NupiWeldingApp on a smartphone or tablet. In smartphone control mode the welder creates its own Wi-Fi hotspot, the app connects to it and sends the welding and pressure test commands, and the machine keypad is locked until the unit is restarted in local mode.

The app replaces paper job sheets. The operator is identified by the phone's fingerprint reader, site details are entered once, and each fitting is captured by scanning its barcode or QR code with the phone camera. Every weld is tagged with the phone's GPS position, so the finished job can be mapped joint by joint. Optional traceability scans record the individual products used in each weld. Weld and test data move from the machine to the app and then to cloud storage at nupiweldingcloud.com, where anyone with the password can review them. The app also downloads user and maintenance manuals in all available languages.

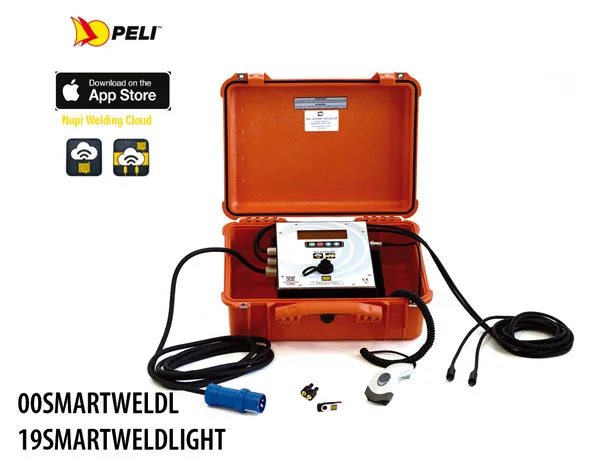

Two sizes are offered: 00SMARTWELD (19SMARTWELD) for 20 to 400 mm and 00SMARTWELDL (19SMARTWELDLIGHT) for 20 to 160 mm, both in the waterproof Peli case. Apex supplies SMARTWELD in Lebanon and can help contractors set up the app for client handover records.

Key features

Paired with the free NupiWeldingApp for smartphone or tablet control over Wi-Fi
Operator identification by the mobile device's fingerprint reader
Fitting data captured by barcode or QR code through the phone camera
GPS position stored for every single weld for installation mapping
Weld and pressure test data stored in the cloud at nupiweldingcloud.com, password protected
Still works from its own keypad with barcode reader or manual entry
Conforms to UNI 10566 (multifunction type) and CE requirements
Waterproof, dustproof, shock-resistant Peli case
Two sizes: 20 to 400 mm (00SMARTWELD) and 20 to 160 mm (00SMARTWELDL)

Specifications

SMARTWELD technical data

From the NUPI welding units technical characteristics flyer (EN). 230 V standard; 110 V versions carry the suffix /110. NUPI Welding Cloud access is listed only for the SMARTWELD models.
Item code	Welding range (mm)	Welding range (in)	Case dimension (mm)	Weight	Max absorbed power	Working range	Duty cycle 60%
00SMARTWELD	20–400	1/2–16	510 x 436 x H217	24 kg	3600 VA	up to 80 A peak	55 A
00SMARTWELDL	20–160	1/2–6	510 x 410 x H200	16 kg	1600 VA	up to 40 A peak	27 A

Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.

Questions

SMARTWELD: common questions

Does SMARTWELD need a phone to weld?: No. It can be used from its own keypad with the barcode reader or manual entry. Smartphone control is a separate mode that adds app control, GPS tagging and cloud storage.
Where are SMARTWELD records stored?: Weld and pressure test data are downloaded from the machine to the NupiWeldingApp and stored in NUPI's cloud (nupiweldingcloud.com), where authorised users can access them with a password.
How is the welder's location recorded?: The app stores the GPS position of the mobile device for each weld, which builds a map of the installation.
