Overview
Some markets, particularly those that follow Dutch KIWA certification, set extra rules for underground fuel pipework, and a standard UPP® installation needs three special parts to meet them. Franklin groups these as the KIWA system accessories: an anti-permeation ring, a primary formed pipe bend and a stainless steel pipe termination. All are KIWA certified.
The anti-permeation ring answers a specific clause. KIWA BRL-K552/03 requires the small gap between two pipe ends inside an electrofusion coupler to be closed on single-wall primary pipe carrying PGS Class 1 and Class 2 fuels. The ring sits between the pipe ends within a standard coupler. Primary pipe carrying PGS Class 3 fuel, such as diesel, does not need it. Rings come in 50 mm and 63 mm sizes.

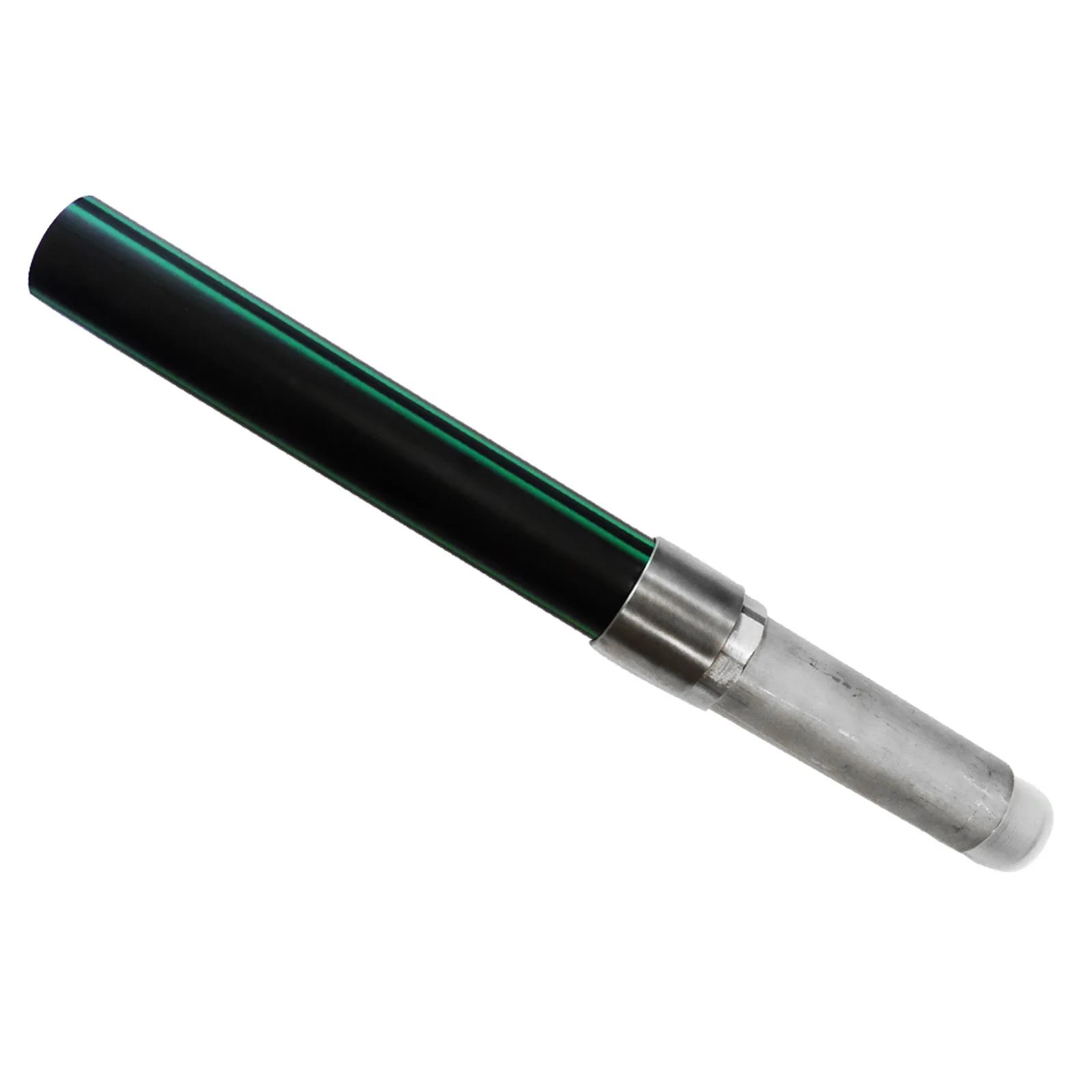

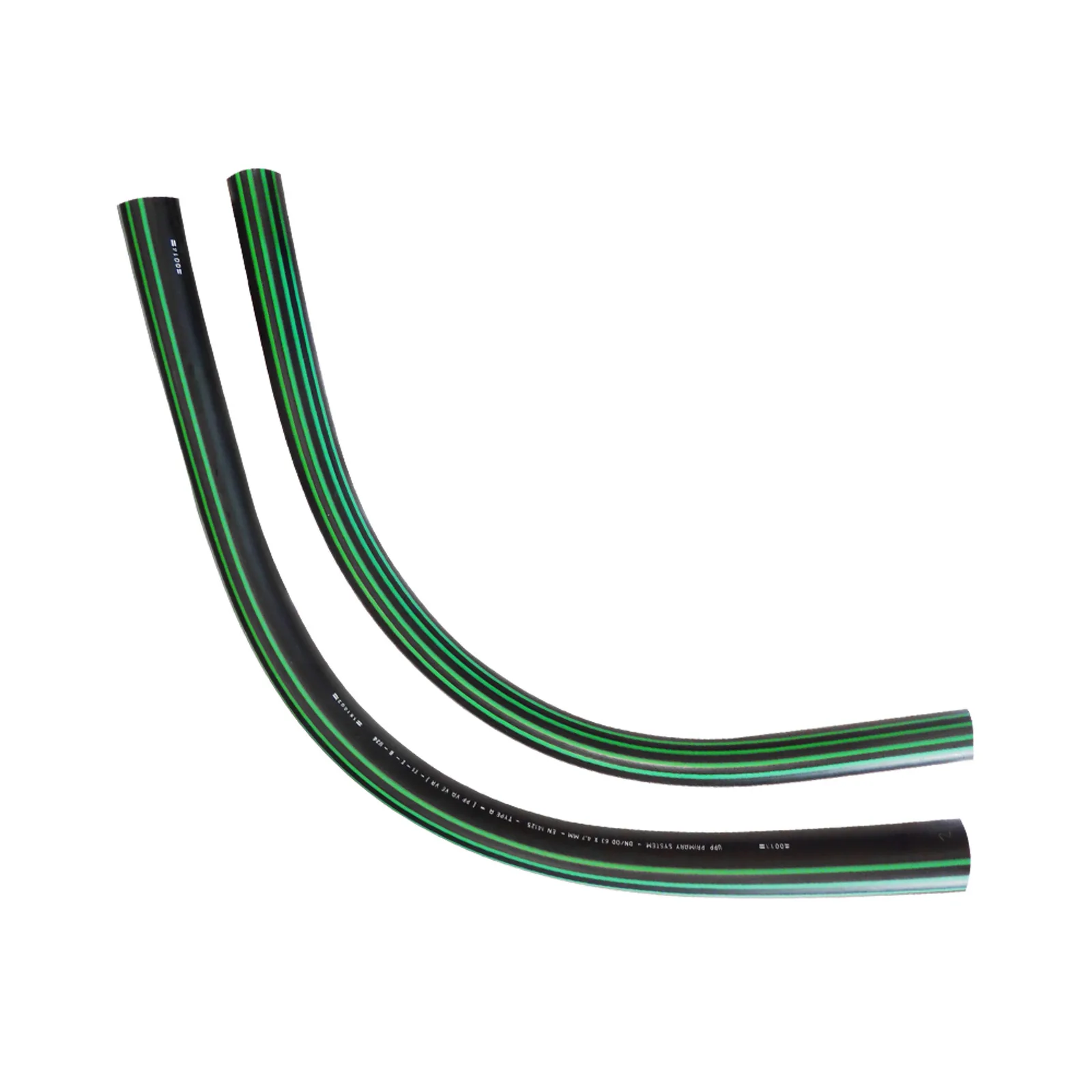

The formed bends, 03-050-R400-K and 03-063-R400-K, are factory-formed single-wall bends in 50 mm and 63 mm for changes of direction in the line. The 91-063-1-EXT-SS termination takes 63 mm pipe to a 1½" male BSPT thread for connection at the pump. In Franklin's installation drawing these parts work with standard couplers and primary pipe, plus a locally supplied pump cradle.
Apex can supply KIWA accessories in Lebanon for projects whose client or specification asks for KIWA-compliant UPP® pipework.
Key features
- KIWA certified components for UPP® pipework
- Anti-permeation rings in 50 mm (408185001) and 63 mm (408182001)
- Closes the pipe-end gap inside the coupler, as KIWA BRL-K552/03 requires
- Needed for PGS Class 1 and 2 fuels; not required for PGS Class 3 such as diesel
- 50 mm and 63 mm single-wall formed bends
- 63 mm x 1½" male BSPT stainless steel termination
Specifications
KIWA UPP® System Accessories technical data
| Model | Description |
|---|---|
| 408185001 | 50 mm anti-permeation ring |
| 408182001 | 63 mm anti-permeation ring |
| 91-063-1-EXT-SS | BSPT 63 mm piping termination, 1½" male thread BSPT |
| 03-050-R400-K | 50 mm piping formed bend, single wall |
| 03-063-R400-K | 63 mm piping formed bend, single wall |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
KIWA UPP® System Accessories: common questions
- Does every UPP® joint need an anti-permeation ring?
- No. Under KIWA BRL-K552/03 it is needed on single-wall primary pipe carrying PGS Class 1 and Class 2 fuels. Lines carrying PGS Class 3 fuel, such as diesel, do not need it.
- Which sizes are available?
- The rings and formed bends come in 50 mm and 63 mm. The termination is for 63 mm pipe with a 1½" male BSPT thread.
- Are these parts needed in Lebanon?
- Only where the project specification asks for KIWA certification. Standard UPP® installations do not use them.
