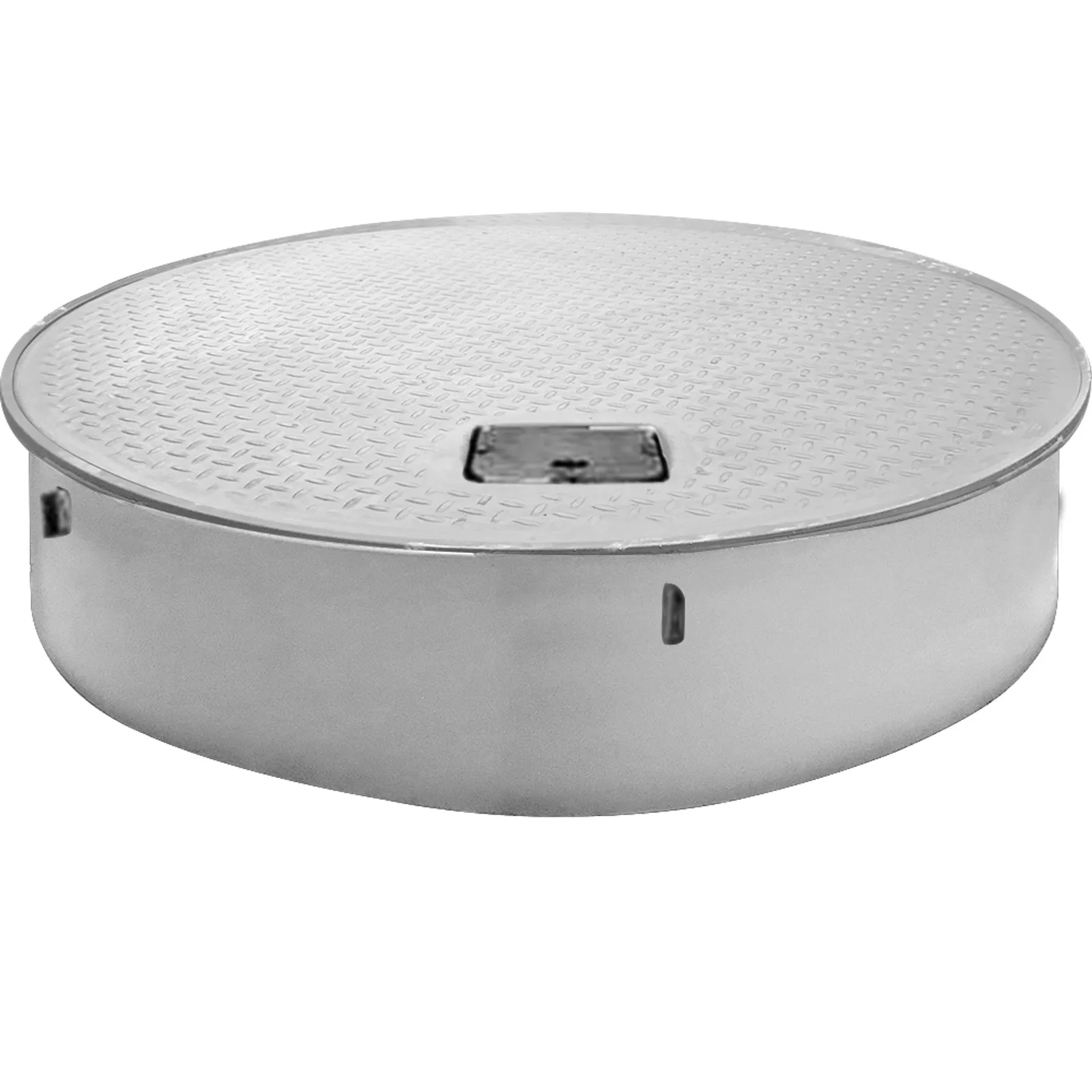

EBW® Composite Manways
SAFE-LITE FRC covers from 12" to 42", life-tested under 20,000 lb loads
Overview
EBW® composite manways use SAFE-LITE fiber reinforced composite (FRC) covers. They are aimed at the same problem as other composite lids: a steel cover that is too heavy to lift safely. Franklin states the FRC covers weigh almost one-third less than steel, which cuts the risk of back injuries when a sump is opened, makes access quicker, and lowers the cost of shipping them.
The test record behind these covers is specific. They are engineered and tested to meet or exceed H20 and HS20 load ratings and have been loaded to 20,000 lbs without failure. Franklin also ran a 30-year life simulation of 11,000 loading cycles at 20,000 lbs each, which is the kind of repeated wheel traffic a busy forecourt sees.
Under the cover is a 14 gauge steel skirt with a skirt ring of 1/4" rolled angle iron, intended for the heaviest traffic. Sizes are 12", 30", 36" and 42", which covers small fill and monitoring points as well as full dispenser and tank sumps. Covers can be bolted, non-bolted or slide-on, all come with handles, and other colours can be requested. For very busy sites, 36" and 42" models can be ordered with Aramid covers for added wear resistance. Apex supplies EBW composite manways in Lebanon where a steel-skirted composite cover suits the slab design.
Key features
- SAFE-LITE FRC covers almost one-third lighter than steel
- Engineered and tested to meet or exceed H20 and HS20
- Tested to 20,000 lbs load without failure
- 30-year life simulation: 11,000 cycles at 20,000 lbs
- 14 gauge steel skirt with 1/4" rolled angle iron ring
- Sizes 12", 30", 36" and 42"
- Bolted, non-bolted and slide-on covers, all with handles
- Optional Aramid covers on 36" and 42" models
Specifications
EBW® Composite Manways technical data
| Item | Value |
|---|---|
| Sizes | 12", 30", 36", 42" |
| Load test | 20,000 lbs without failure |
| Life simulation | 11,000 loading cycles of 20,000 lbs |
| Skirt | 14 gauge steel, 1/4" rolled angle iron ring |
| Cover options | Bolted, non-bolted, slide on |
| Aramid covers | 36" and 42" models only |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
EBW® Composite Manways: common questions
- How much lighter is an EBW composite cover than steel?
- Franklin states the SAFE-LITE FRC covers weigh almost one-third less than steel.
- What testing has been done on the covers?
- They are tested to 20,000 lbs without failure and have passed a 30-year life simulation of 11,000 cycles at 20,000 lbs.
- Are heavier-duty covers available?
- Yes. Aramid covers for extra wear protection can be ordered on the 36" and 42" models.
Request a Quotation
Get a quotation for the Franklin Fueling Systems EBW® Composite Manways.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
More in Manholes & Access Covers
All Manholes & Access Covers

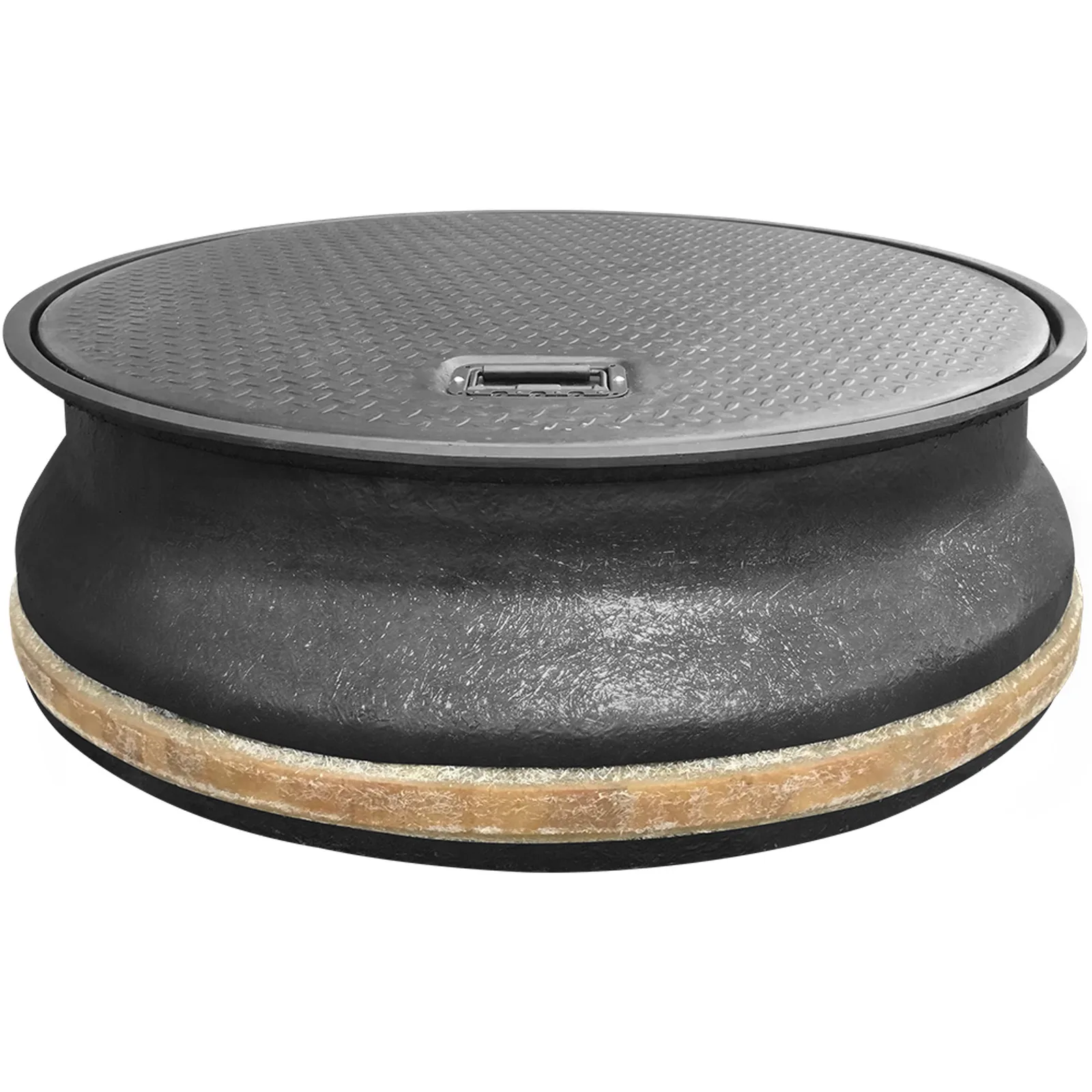

FLEX-ING™ Fiberglass Manways
Wide-opening tank sump manway with a flared skirt that sheds water

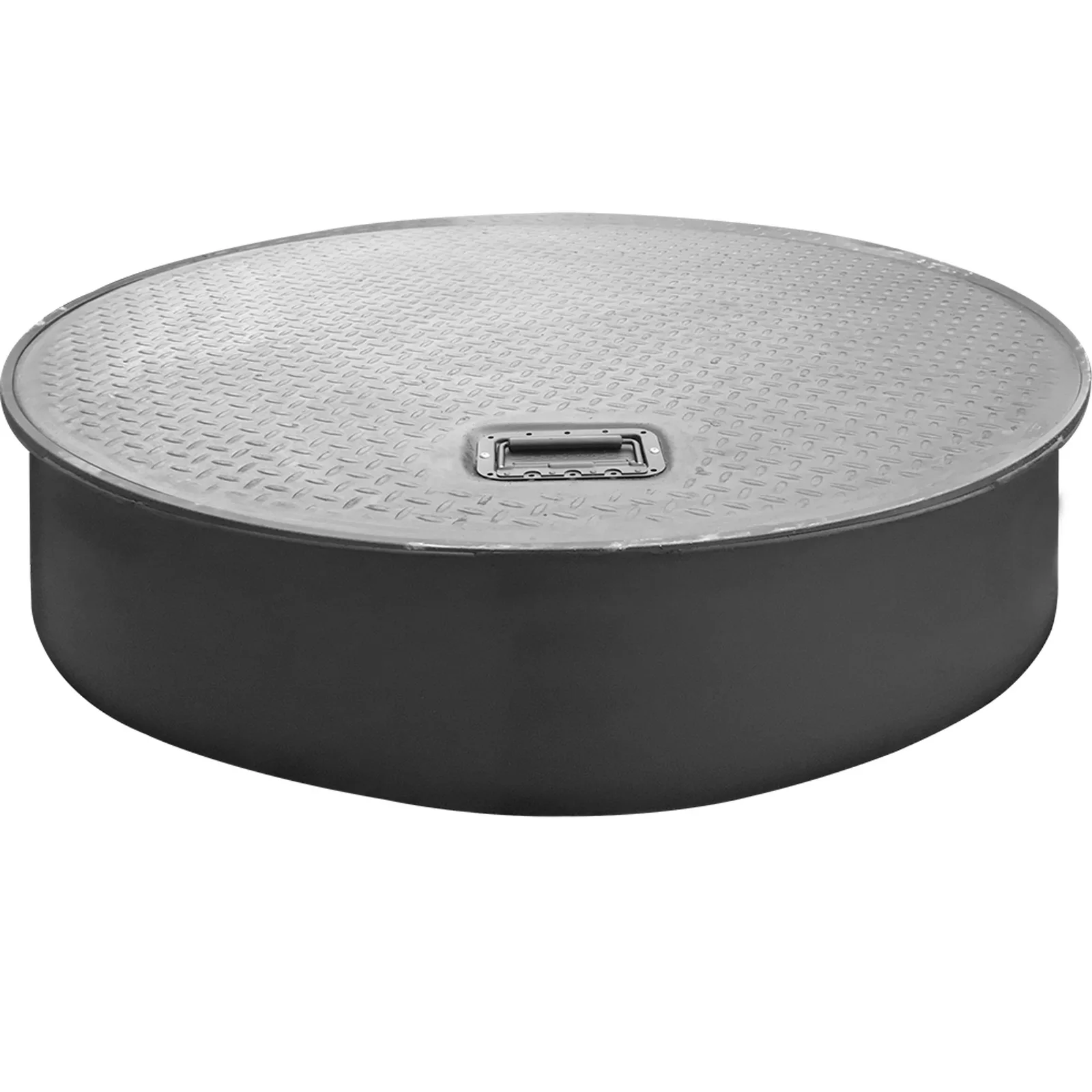

FLEX-ING™ Composite Manways
38" and 42" composite access covers with raintight cam-lock options

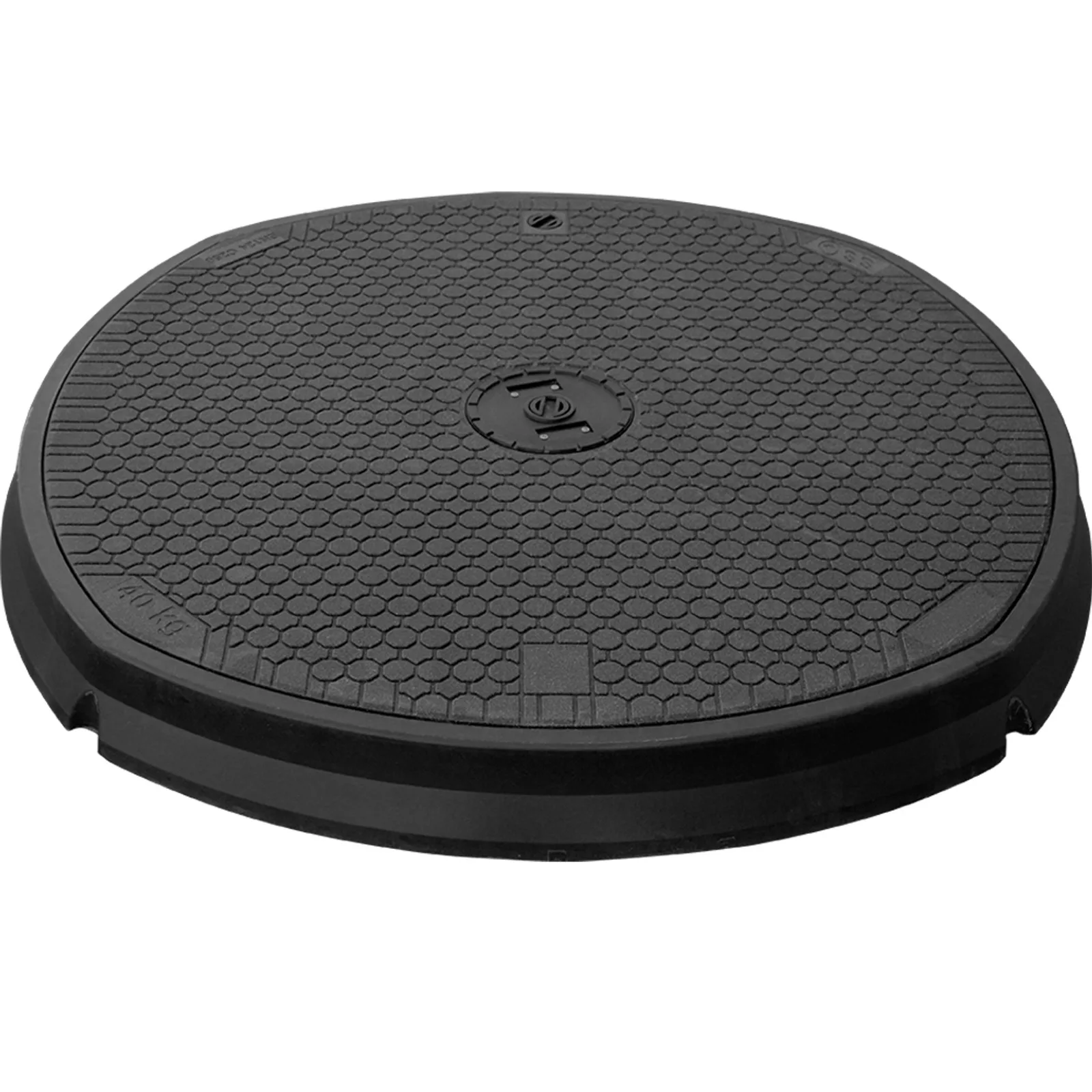

UPP® Composite Access Covers
EN124 rated, all-composite lid and frame in 900 mm and 1,060 mm openings

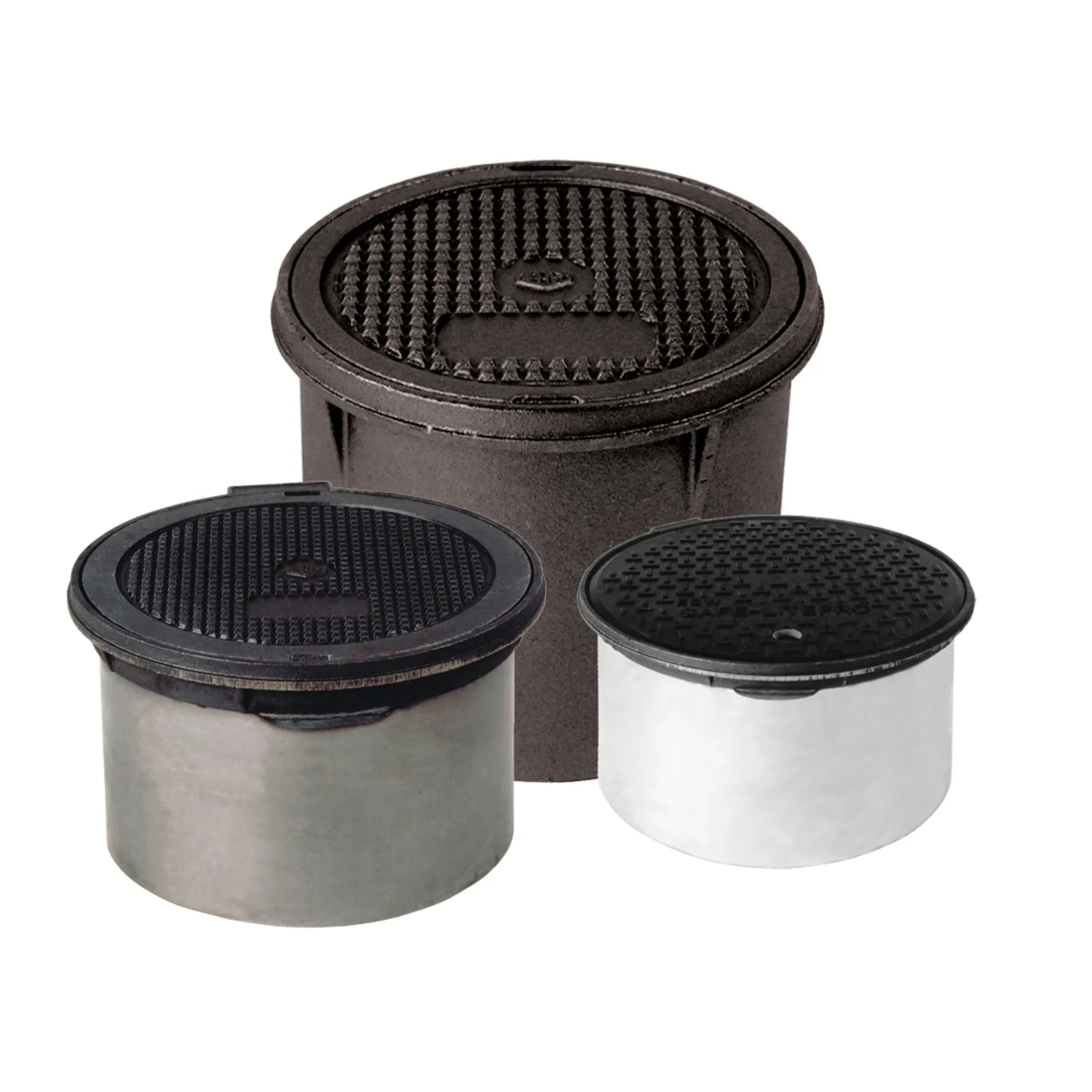

EBW® Cast Iron and Steel Manways
Metallic covers for fills, monitoring points and heavy-traffic sumps

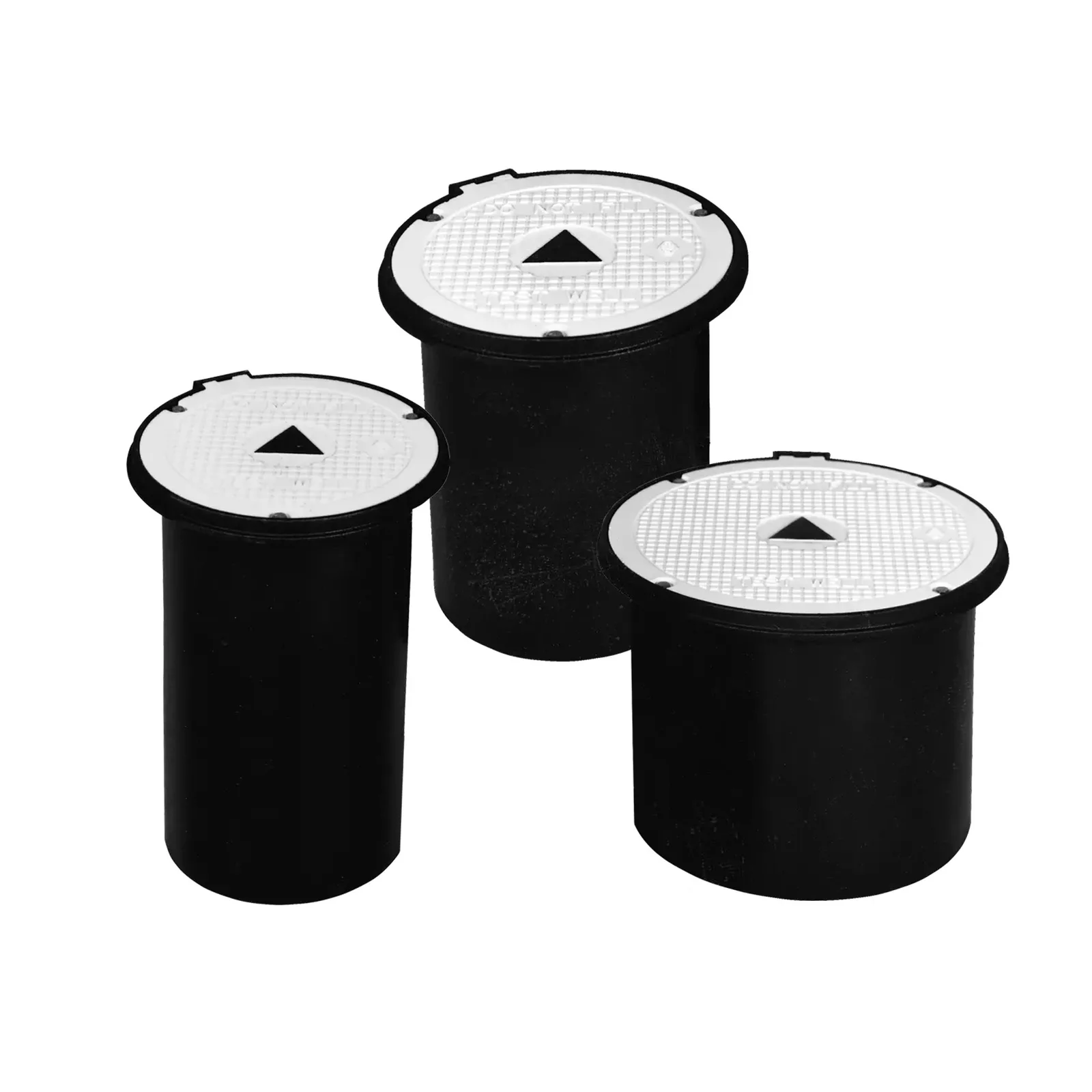

EBW® Monitoring Wells
