R_SMART TOP Console
Wall-mounted ATG console with 7" touch screen for up to 16 tanks.
Overview
The R_SMART TOP is the box on the wall of the station office or depot control room that collects the readings from every Maser probe and turns them into a live picture of the wet stock. Its 7" resistive TFT touch screen shows each tank at a glance, so the operator can check levels, water and temperature without opening a computer.
One console handles up to 16 tanks. Beyond displaying data, it runs the tank-gauging functions itself: static and dynamic leak detection, automatic tank calibration, automatic reconciliation of sales against stock, and a record of deliveries, trends, events and alarms. Four programmable relay outputs (125 VAC, 2 A, SPDT) can drive external alarms, and four programmable input channels accept digital or 4-20 mA two-wire analogue signals from other sensors.

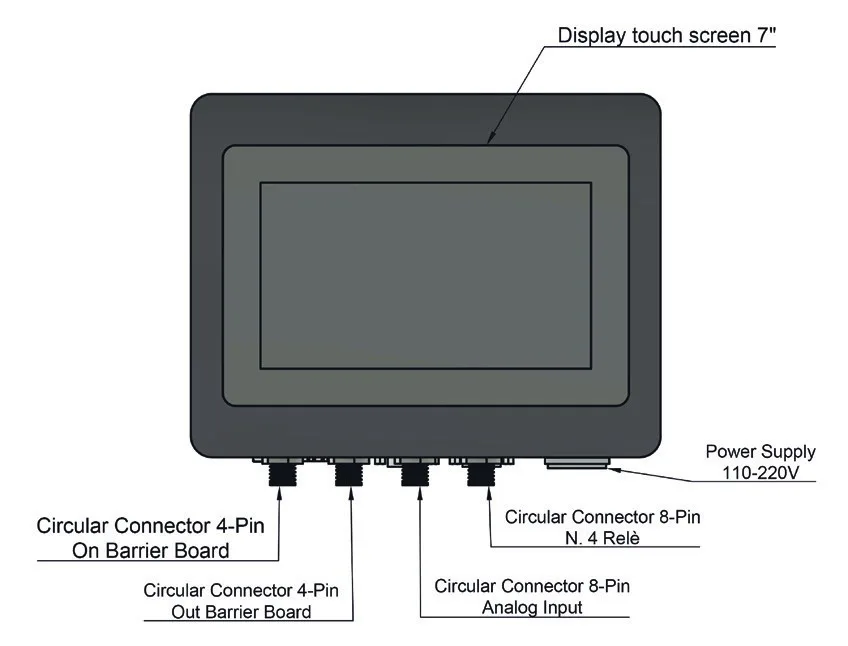

The console is built to sit inside a wider system rather than alone. Probes connect over an RS 485 field bus, two RS 232 ports serve the POS and a serial printer, and Ethernet plus two USB ports link it to the network. It speaks the main protocols used by common forecourt management systems, and it passes its data on to Maser's TankSmart software for order planning and analysis. Power is 100-230 Vac and the enclosure measures 220 x 170 x 71.4 mm with IP 41 protection, which suits an indoor wall position.
Apex supplies, installs and services the R_SMART TOP in Lebanon, including wiring of probes and integration with the station's POS or forecourt controller.
Key features
- 7" resistive TFT graphical touch screen
- Wet stock management for up to 16 tanks
- Static and dynamic leak detection
- Tank auto-calibration and automatic reconciliation
- Recording of deliveries, trends, events and alarms
- 4 programmable I/O channels, digital or 4-20 mA two-wire analogue
- 4 programmable 125 VAC 2 A SPDT relay alarm outputs
- RS 485 field bus, 2 x RS 232, Ethernet and 2 x USB
- Interfaces with the main protocols of common forecourt management systems
- Microprocessor based with event storage
Specifications
R_SMART TOP Console technical data
| Item | Value |
|---|---|
| Display | Resistive 7" TFT graphical touch screen |
| Tanks managed | Up to 16 |
| System | Microprocessor based, event recording and storage |
| Enclosure protection | IP 41 |
| Enclosure dimensions | 220 x 170 x 71.4 mm |
| Power supply | 100-230 Vac |
| Inputs | 4 programmable channels, digital or analogue 4-20 mA two wires |
| Relay outputs | 4 programmable relays 125 VAC 2 A SPDT (alarm outputs) |
| Field bus | RS 485 |
| Serial ports | 2 x RS 232 (POS and/or serial printer) |
| Network | Ethernet port, 2 x USB |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
R_SMART TOP Console: common questions
- How many tanks can one R_SMART TOP manage?
- Up to 16 tanks per console.
- Does the console detect leaks on its own?
- Yes. It performs both static and dynamic leak detection, plus tank auto-calibration and automatic reconciliation.
- Can it connect to my POS or forecourt system?
- It has two RS 232 ports for a POS and/or serial printer, an Ethernet port, and supports the main communication protocols of common forecourt management systems.
- Where should it be installed?
- It is a wall-mounted unit with an IP 41 enclosure, intended for an indoor position such as the station office or depot control room.
