MS_EXIA FLEX Probe
Flexible magnetostrictive probe for high-volume tanks up to 25 m deep.
Overview
Rigid probes stop being practical once a tank gets tall: a 15 or 20 m stainless rod is hard to ship, hard to lift into place and hard to keep straight. The MS_EXIA FLEX solves this for depot and terminal tanks by putting the magnetostrictive measuring wire inside a corrugated stainless tube that can be folded for transport and then hung straight inside the tank. It measures up to 25 m.

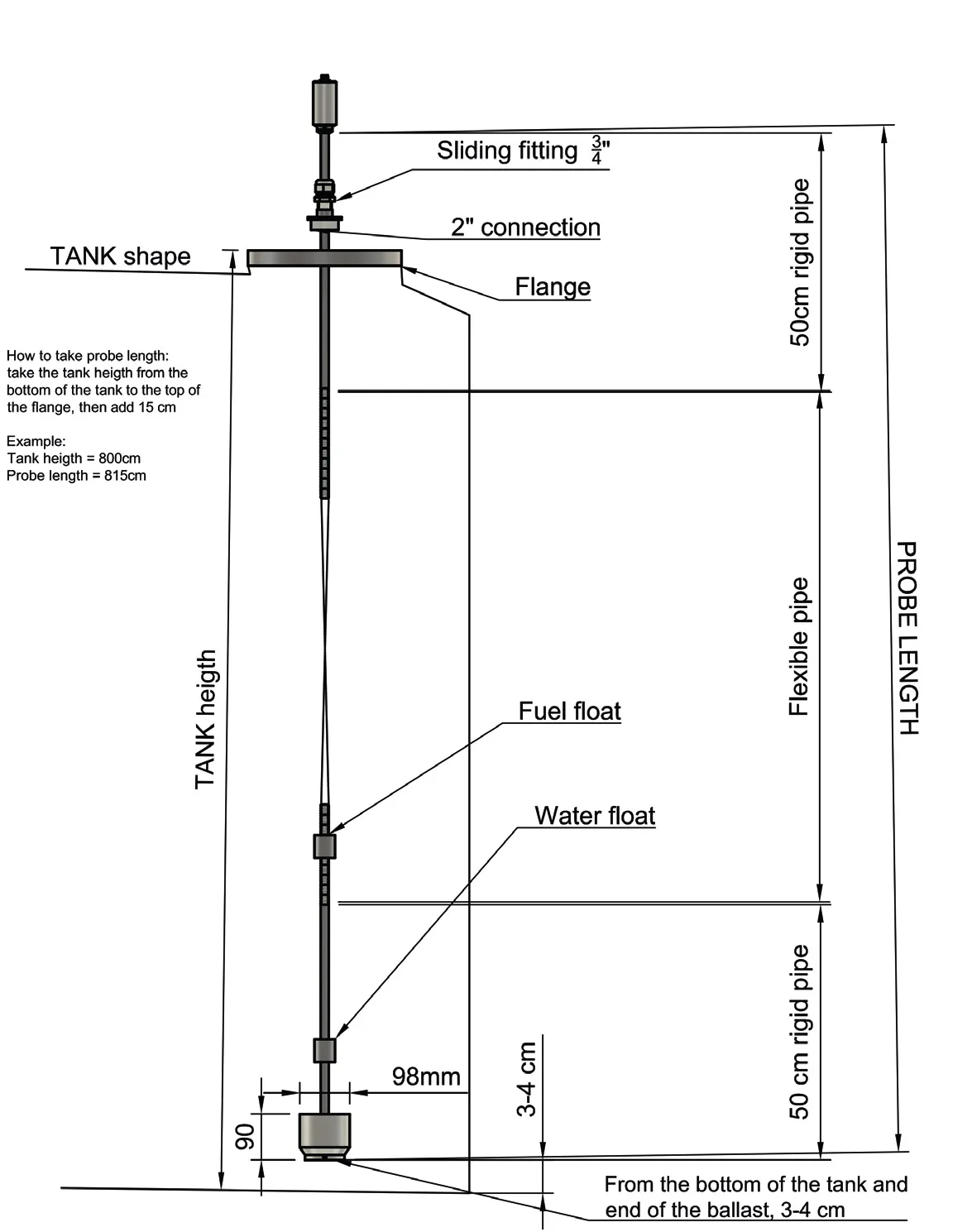

Installation relies on gravity. A weight at the lower end stretches the tube along its full length so it hangs vertically, and a magnet holds the bottom firmly in position. Once in place, the product float and the water float (both Ø 98 mm) slide freely along the tube, and the probe head converts the returning torsional waves into level, water and temperature readings exactly as the rigid MS_EXIA does. The fixing uses an R 3/4 NPT threaded unit with roughly 500 mm of adjustment, and 1 1/2" threaded connections are also possible.
Accuracy is ± 1 mm for both product and water with ± 0.2 mm repeatability, and level measurement starts 185 mm from the bottom. Temperature is measured from -40 °C to +80 °C, to ± 0.2 °C between -20 °C and +70 °C. The head is IP68 and the probe holds ATEX and OIML R85 approvals. Like the standard probe it can report to the R_SMART TOP console over a cable or, as an option, wirelessly.
Apex supplies, installs and services the MS_EXIA FLEX in Lebanon for fuel depots and large storage tanks that need the same stock control as a service station.
Key features
- Measuring length up to 25 m
- Foldable corrugated-tube construction for compact, low-cost transport
- Bottom weight keeps the probe vertical; a magnet anchors the bottom
- Product and water accuracy ± 1 mm, repeatability ± 0.2 mm
- Ø 98 mm product and water floats, measurement from 185 mm
- Temperature -40 °C to +80 °C, accuracy ± 0.2 °C (-20 °C to +70 °C)
- R 3/4 NPT threaded fixing with about 500 mm adjustment; 1 1/2" threaded installation possible
- IP68 head, M12 plug-in connection
- Optional wireless link to the R_SMART TOP console
- ATEX and OIML R85 approvals
Specifications
MS_EXIA FLEX Probe technical data
| Item | Value |
|---|---|
| Measuring length | Up to 25 m |
| Product accuracy / repeatability | ± 1 mm / ± 0.2 mm |
| Water accuracy / repeatability | ± 1 mm / ± 0.2 mm |
| Measurement level from | 185 mm (product and water) |
| Floats | Ø 98 mm |
| Temperature range | -40 °C to +80 °C |
| Temperature accuracy | ± 0.2 °C (-20 °C to +70 °C) |
| Temperature repeatability | ± 0.5 °C |
| Fixing | Threaded unit R 3/4 NPT, adaptability range approx. 500 mm |
| Electrical connection | M12 plug-in |
| Head protection | IP68 |
| Materials | Head 304 AISI; pipe 316 AISI; corrugated tube and floats 304 AISI; threaded unit and fixing weight 304 AISI |
| Approvals | ATEX, OIML R85 |
| Options | Wireless connection; fixing unit in stainless steel |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
MS_EXIA FLEX Probe: common questions
- When should I choose the FLEX probe over the standard MS_EXIA?
- When the tank is deeper than the standard probe's 6 m range or the probe has to be shipped and handled compactly. The FLEX measures up to 25 m and folds for transport.
- How does a flexible probe stay straight?
- A weight at the lower end pulls the corrugated tube taut along its full length and a magnet holds the bottom in place, so the floats travel on a vertical line.
- What accuracy does it give?
- ± 1 mm for product and water levels with ± 0.2 mm repeatability, according to Maser's datasheet.
