Franklin Fueling Systems
Wire Management & Corrosion Control
Sealed cable routes and active protection against tank corrosion
The EN CableTight™ Wire Management System contains electrical, sensor and data cables from end to end, using the same electrofusion approach as UPP® pipe. Flexible conduit, direct bury and rigid conduit versions suit local wiring rules.
The Corrosion Control™ System removes water and acid from tank bottoms, absorbs sump humidity and alerts the EVO™ console to corrosive conditions. Apex supplies and installs both systems.
Key features
- Liquid-tight cable entries into sumps and chambers
- 32 mm and 75 mm flexible conduit, direct bury and rigid conduit systems
- Transition chamber with a D400 load-rated composite cover
- Element-free stainless steel water separator
- Corrosion detection sensor for the tank ullage space
- Desiccant packs with weight-based remaining life sensor
- Control and monitoring through EVO™ Series consoles
Product lines
What this range covers

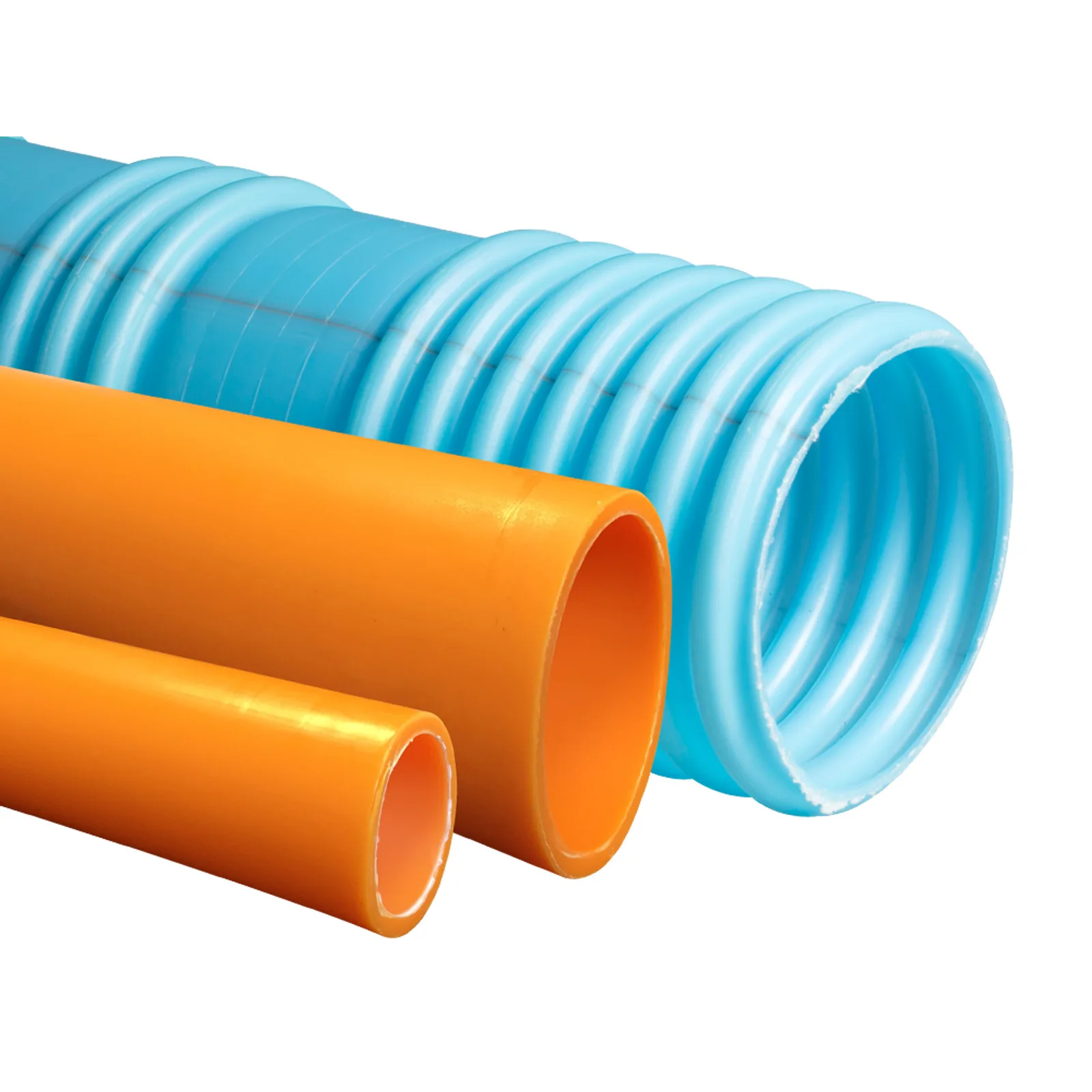

EN CableTight™ system
End-to-end containment for electrical, sensor and data wiring, with bores of 25 mm (32 mm conduit), 65 mm (75 mm conduit) and 106 mm (110 mm ducting) and a W900 x D800 x H862 transition chamber.

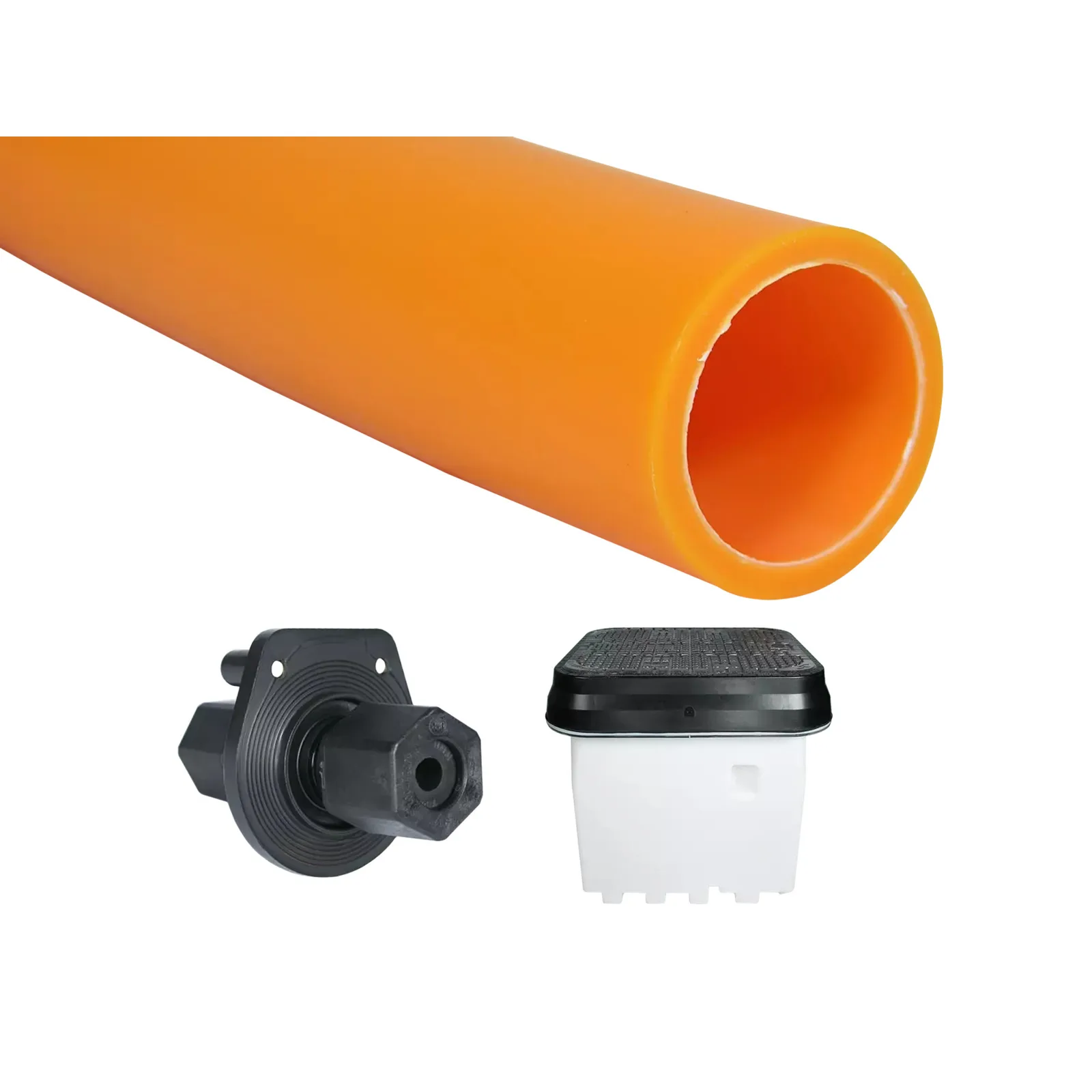

32 mm flexible conduit system
Groups cables into single containment entry points in markets that allow flexible conduit, using compression grommets sized to each cable.

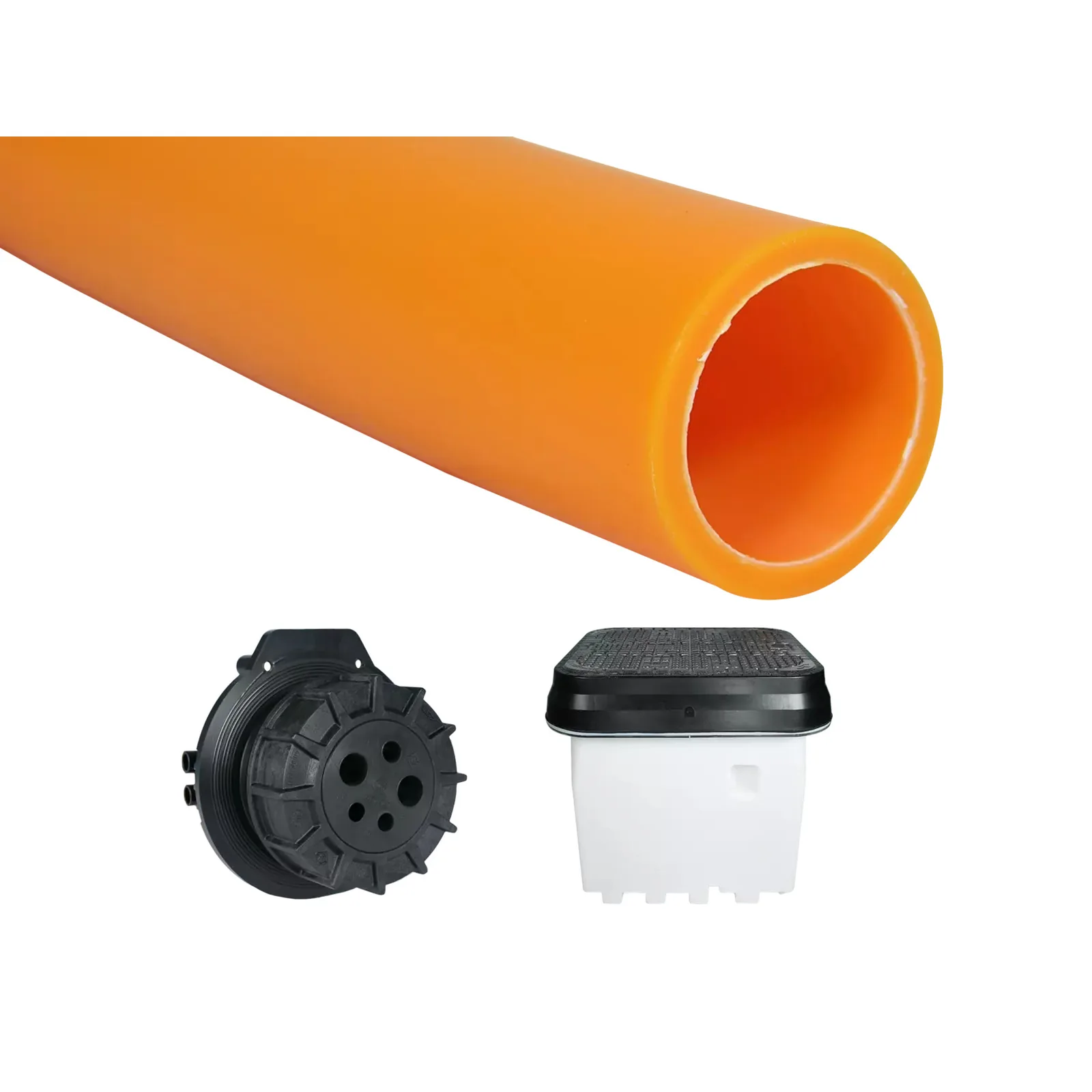

75 mm flexible conduit system
Larger conduit for consolidating groups of cables, with multi-cable entry seals for wires of 5 to 17 mm diameter.

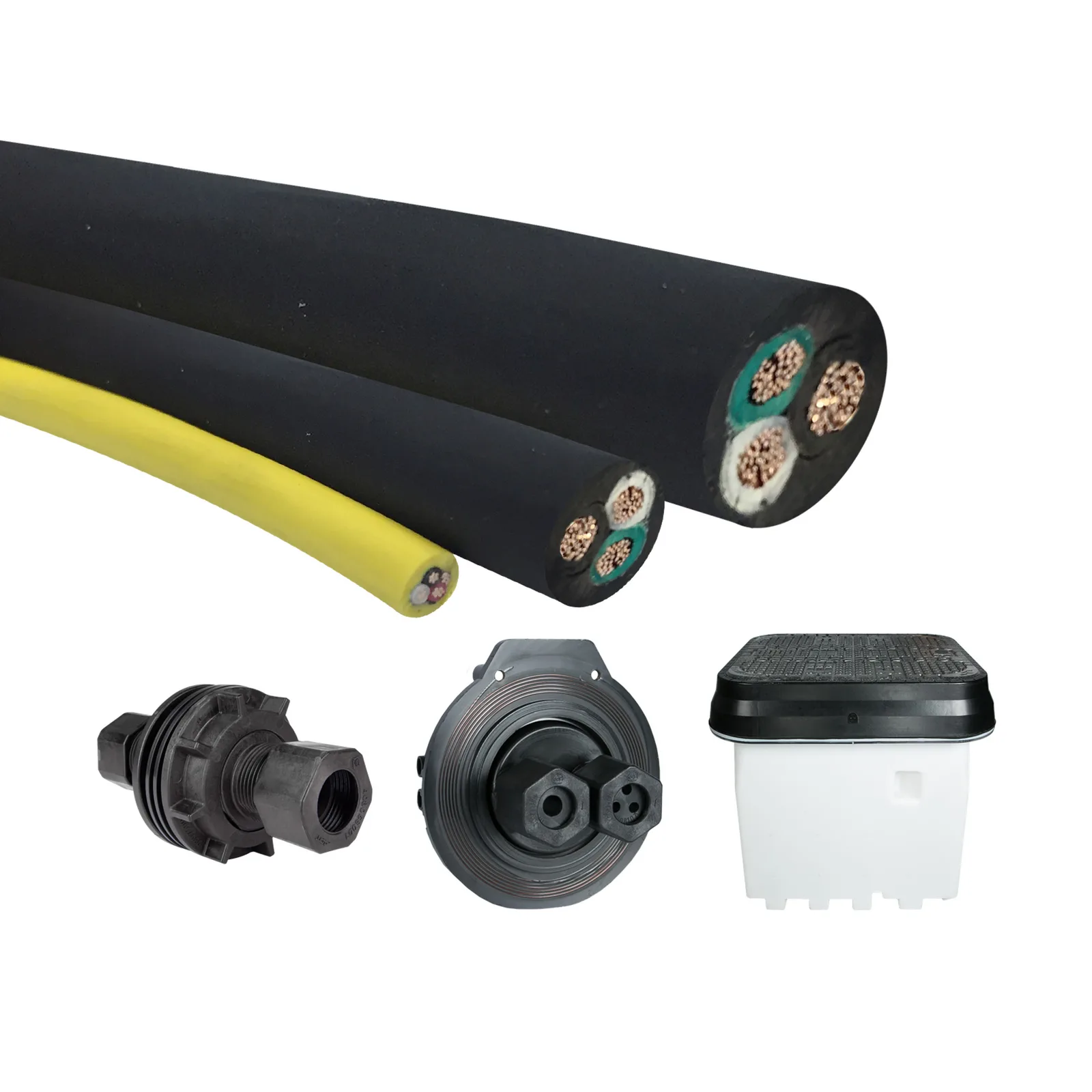

Direct bury system
Liquid-tight entries for cables of 5 to 16 mm buried directly in the ground, such as grounding wires and armoured power cables.

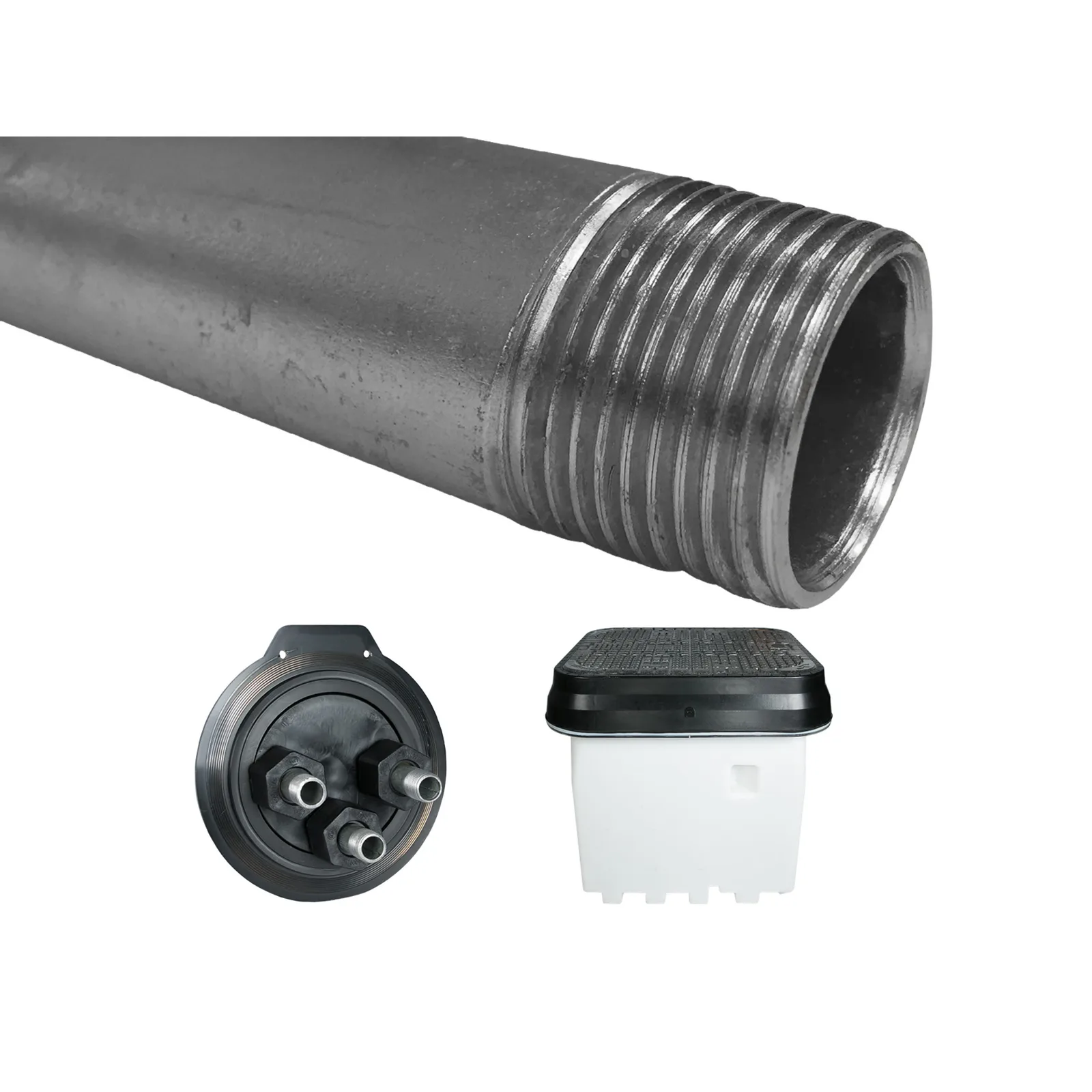

Rigid conduit system
Entry seals for one to three ¾" rigid conduits where local rules require steel conduit but still demand a liquid-tight containment entry.

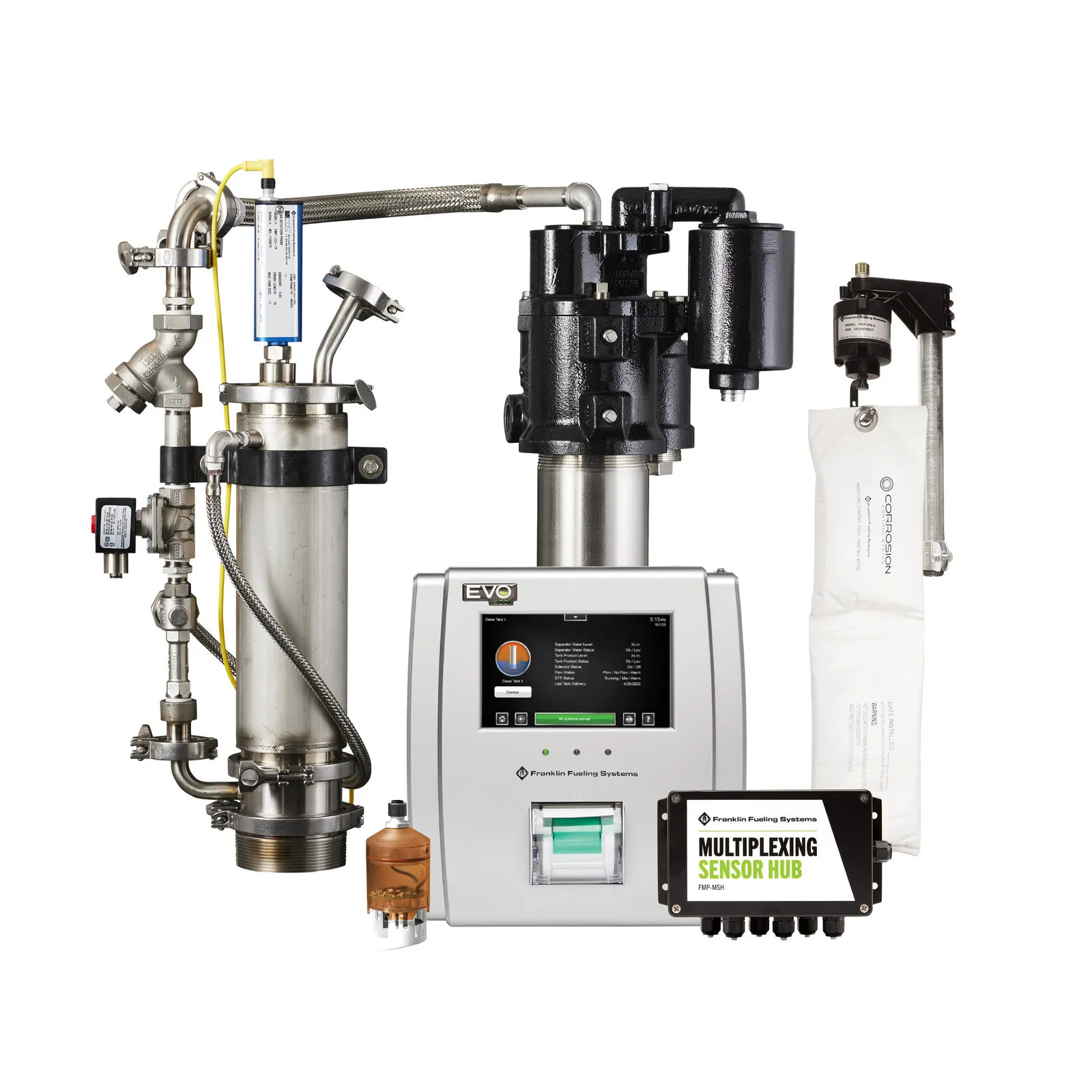

Corrosion Control™ System
Integrated system that monitors for and removes water and moisture, the main causes of corrosion, from diesel tanks and gasoline sumps.

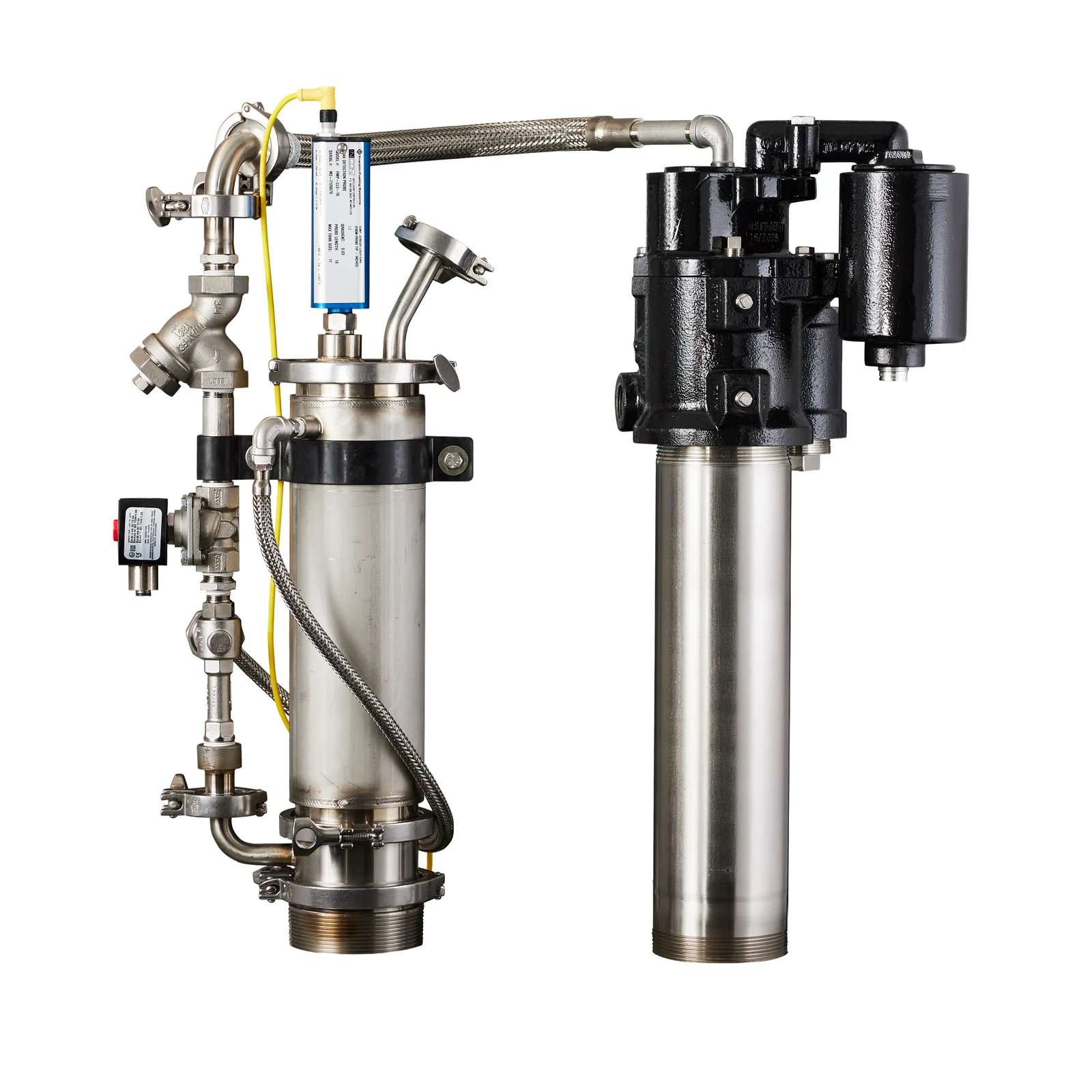

Water separator
Stainless steel, element-free unit driven by a 4" FE PETRO® pump that draws water and acid off the tank bottom and returns clean fuel, for tanks up to 10' in diameter.

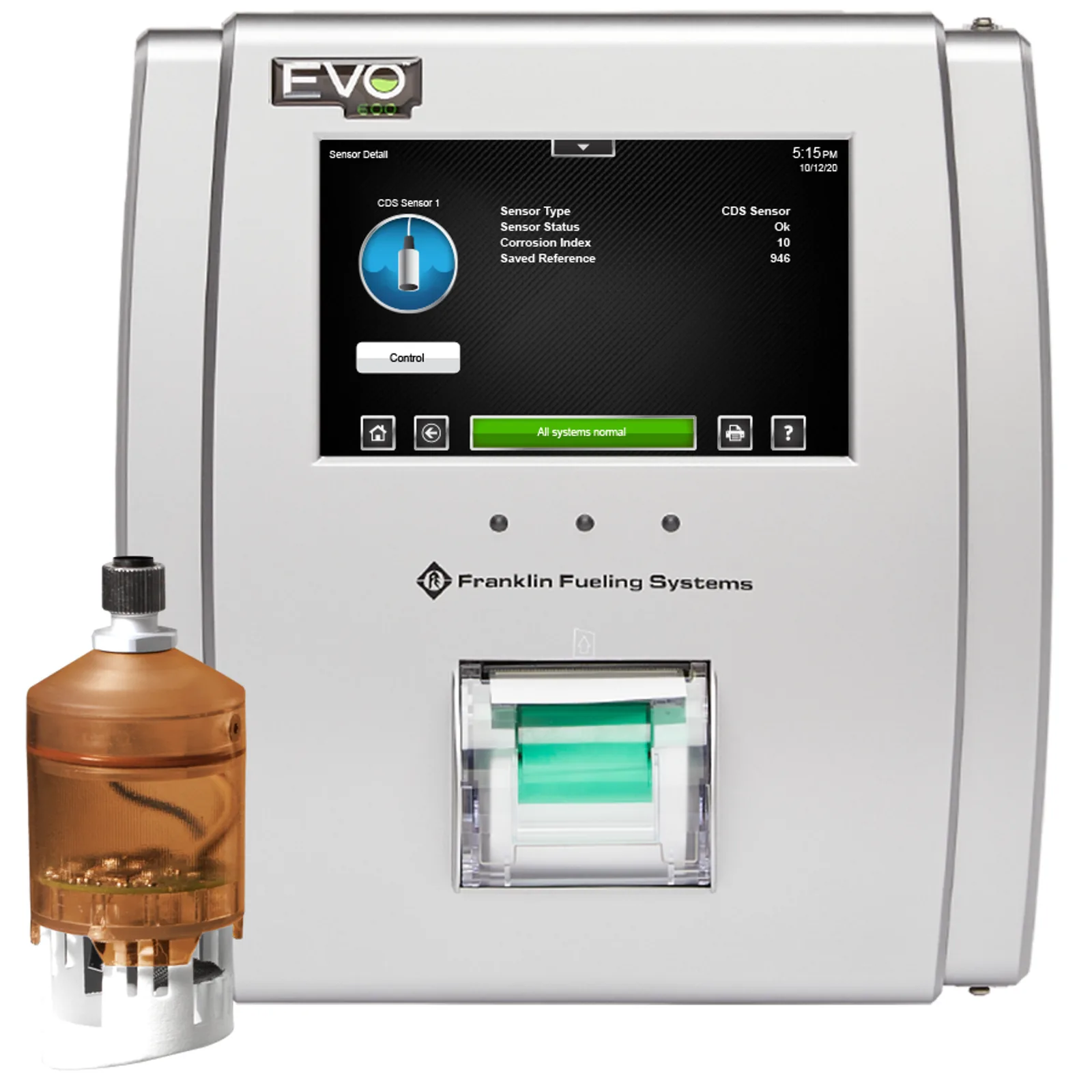

Corrosion detection sensor
Alerts the EVO™ console when the tank ullage space becomes corrosive, for all blends of gasoline, diesel and ethanol.

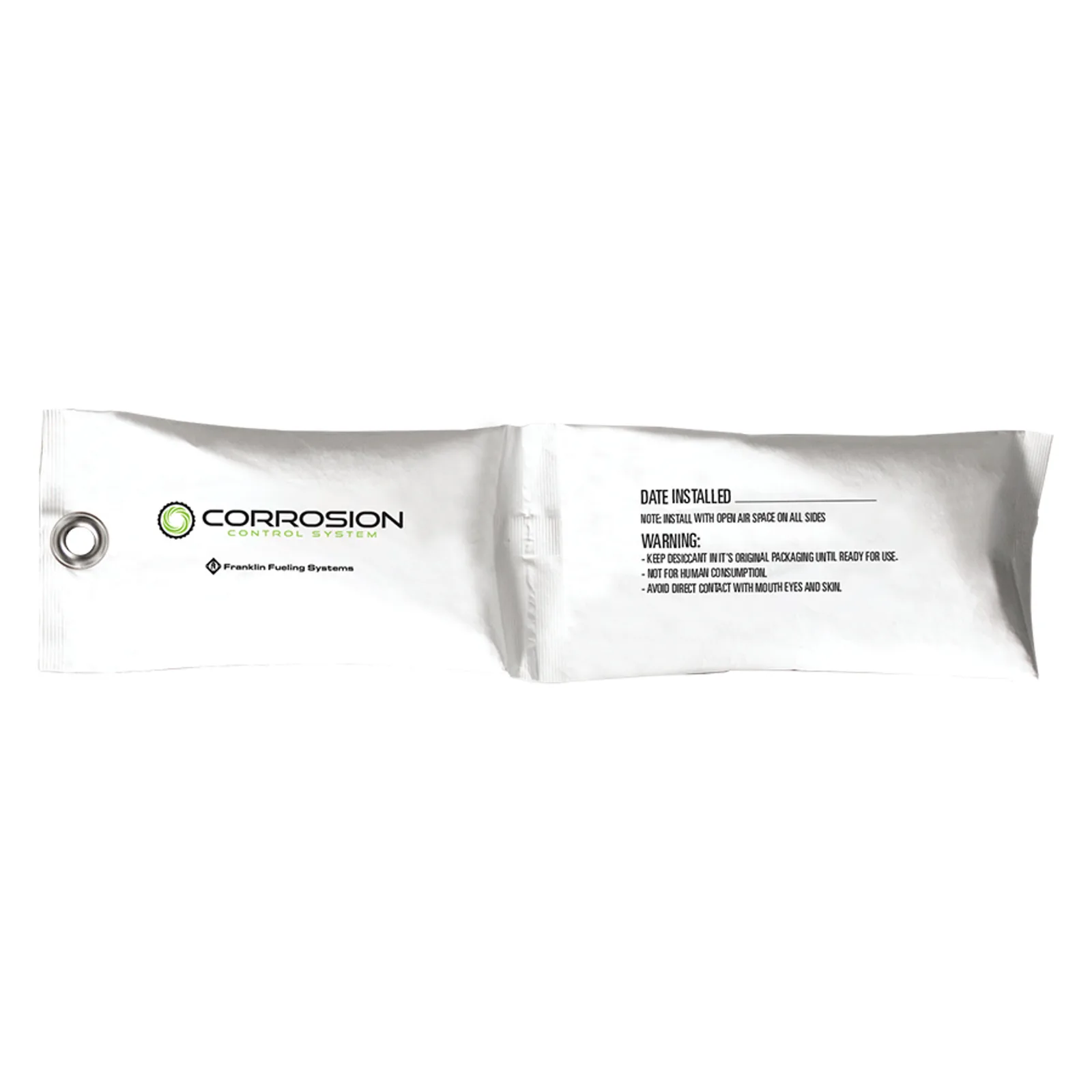

Desiccant pack and sensor
Packs that absorb sump humidity for a typical 4 to 6 months in a 75-100 cubic foot sump, and a sensor that weighs them to report remaining life on the EVO™.

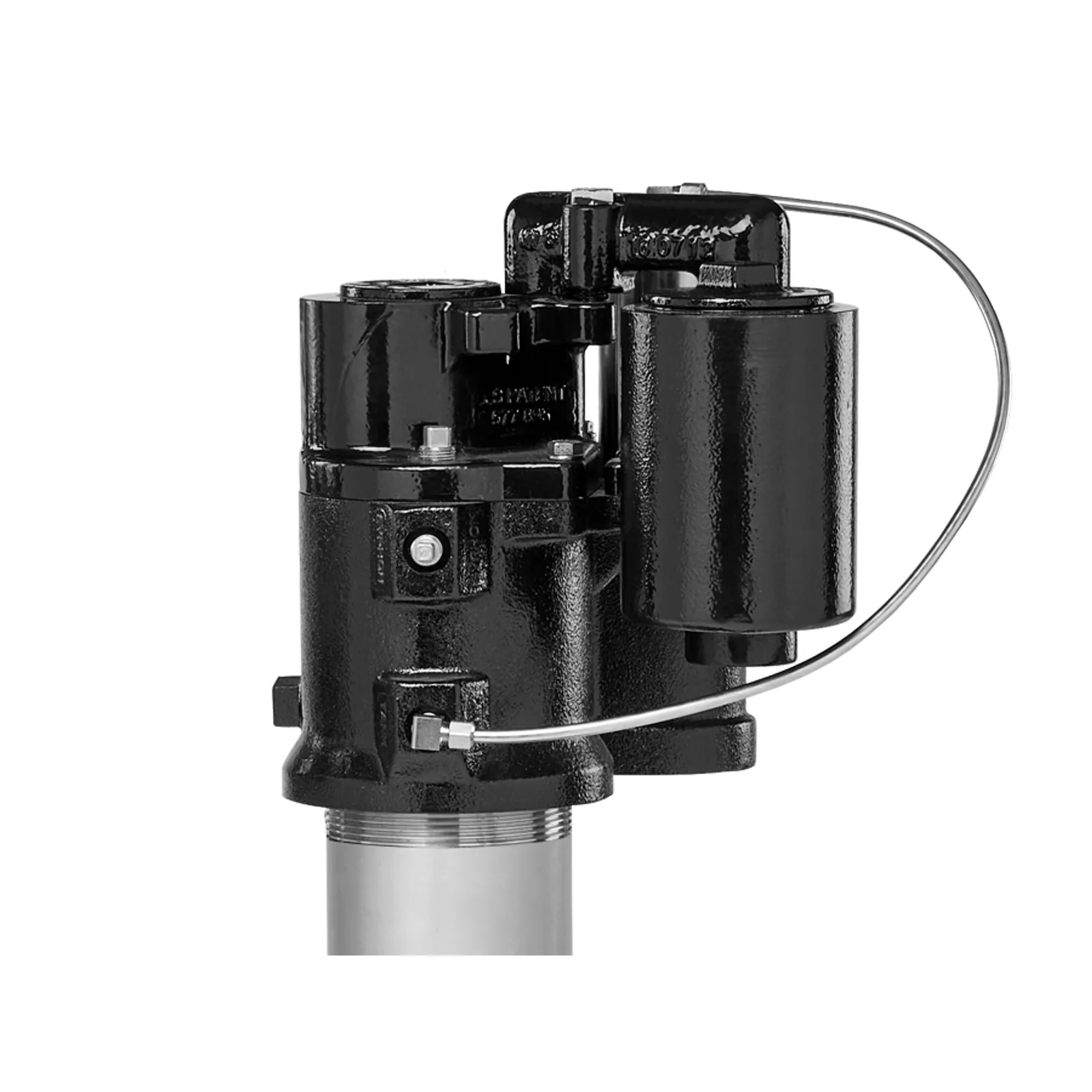

Advanced Protection pumps
Factory option on STPAG and IST pumps with coated castings and stainless steel fasteners, riser, column pipe and coupler to resist accelerated corrosion.
Request a Quotation
Get a quotation for Wire Management & Corrosion Control.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
