NUPI Industrie Italiane · SMARTFLEX fuel piping system
SMARTFLEX double wall system
Pipe-in-pipe secondary containment with a continuous, monitorable interstitial space.
Overview
A SMARTFLEX double wall line places the lined primary pipe inside a second HDPE pipe. NUPI stresses that this outer pipe is a real pressure-rated polyethylene pipe, able to hold the pressure or vacuum of an automatic leak monitoring system, rather than a thin sleeve. Where a standard such as UL, or a client specification, calls for it, the secondary pipe can also be ordered with its own inner barrier layer.

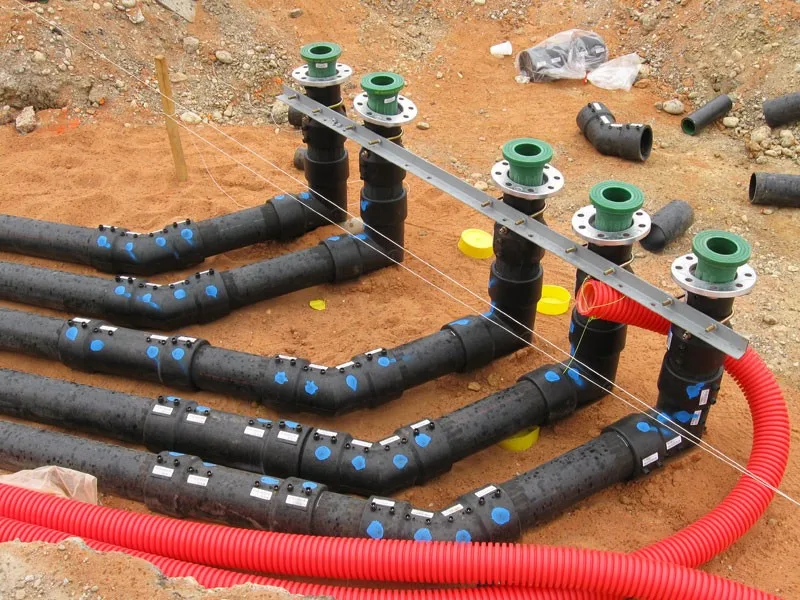

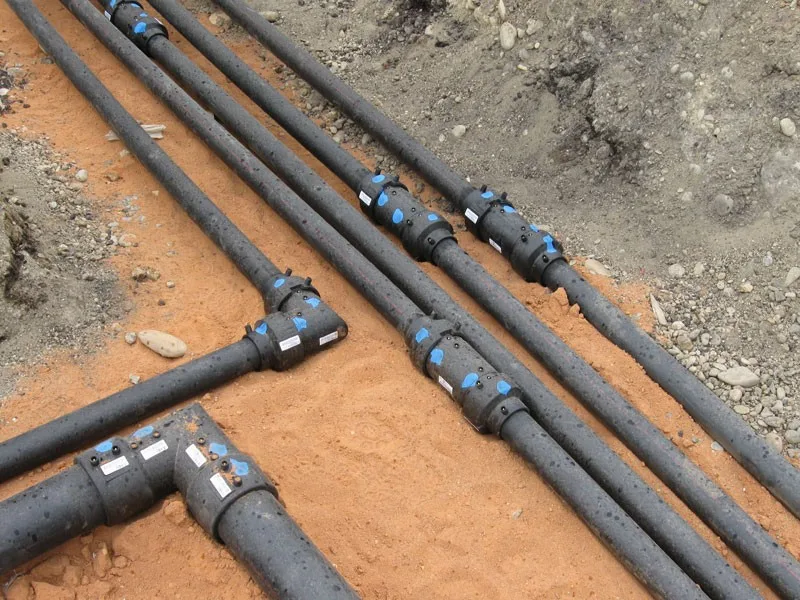

What makes the system work is the fitting range. SMARTFLEX double wall electrofusion fittings are fully coaxial, so the space between the two pipes runs unbroken through couplers (SMEDW), tees (STEDW), elbows and bends (SGEDW, SCEDW). The interstice is reached through termination fittings (SETFV, SETFCV) with quick-connect valves that suit common pneumatic components, or through test port versions of the fittings (SCEDWTP, SGEDWTP, SMEDWTP, STEDWTP) that remove the need for bypass test tubing. Vacuum, pressure, liquid or gas leak monitoring can all be used.
Six primary and secondary size pairs are available, from 32 mm inside 40 mm up to 160 mm inside 225 mm. Apex supplies and installs SMARTFLEX double wall pipework in Lebanon for sites where secondary containment and leak monitoring are required, and can connect the interstitial space to the station's monitoring equipment.
Key features
- Secondary pipe is a true HDPE pressure pipe, not a containment sleeve
- Secondary pipe available with an inner barrier layer where UL or the client requires it
- Fully coaxial electrofusion fittings keep the interstitial space continuous
- Termination fittings SETFV and SETFCV with quick-connect valves for monitoring access
- Test port fittings (SCEDWTP, SGEDWTP, SMEDWTP, STEDWTP) remove bypass test tubing
- Works with vacuum, pressure, liquid or gas leak monitoring systems
- Long spigot double wall adapter SAWFD for compact transitions to flex connectors
- Six primary/secondary pairs from 32/40 mm to 160/225 mm
- Secondary pipe maximum operating pressure 4 bar at 20 °C (32 to 110 mm primary)
- UL 971 listed integral primary/secondary pipe TSMAXPD
Specifications
SMARTFLEX double wall system technical data
| Primary pipe OD (mm) | Secondary pipe OD (mm) | Max operating pressure, primary at 20 °C | Max operating pressure, secondary at 20 °C |
|---|---|---|---|
| 32 | 40 | 8 bar (116 psi) | 4 bar (58 psi) |
| 50 | 63 | 8 bar (116 psi) | 4 bar (58 psi) |
| 63 | 75 | 8 bar (116 psi) | 4 bar (58 psi) |
| 90 | 125 | 8 bar (116 psi) | 4 bar (58 psi) |
| 110 | 125 | 8 bar (116 psi) | 4 bar (58 psi) |
| 160 | 225 | Not stated | Not stated |
| Model | Primary outside diameters (mm) | Primary outside diameters (in) |
|---|---|---|
| TSMAHD | 32, 50, 63, 90, 110, 160, 200 | 1, 1 1/2, 2, 3, 4, 6, 8 |
| TSMAUD | 50, 63, 90, 110, 160 | 1 1/2, 2, 3, 4, 6 |
| TSMAXPD | 32, 50, 63, 90, 110 | 1, 1 1/2, 2, 3, 4 |
| TSMAUXPD | 32, 50, 63, 90, 110 | 1, 1 1/2, 2, 3, 4 |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Questions
SMARTFLEX double wall system: common questions
- Can the interstitial space be monitored through the fittings?
- Yes. The double wall fittings are coaxial, so the interstice is continuous along the line, and it can be accessed at termination fittings SETFV or SETFCV or at test port fittings without bypass tubing.
- Which leak monitoring methods does NUPI allow?
- NUPI states that vacuum, pressure, liquid or gas leak monitoring systems can be used with the SMARTFLEX double wall system.
- What sizes are available?
- Primary/secondary pairs of 32/40, 50/63, 63/75, 90/125, 110/125 and 160/225 mm.
Request a Quotation
Get a quotation for the NUPI Industrie Italiane SMARTFLEX double wall system.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
More in SMARTFLEX fuel piping system
All SMARTFLEX fuel piping system

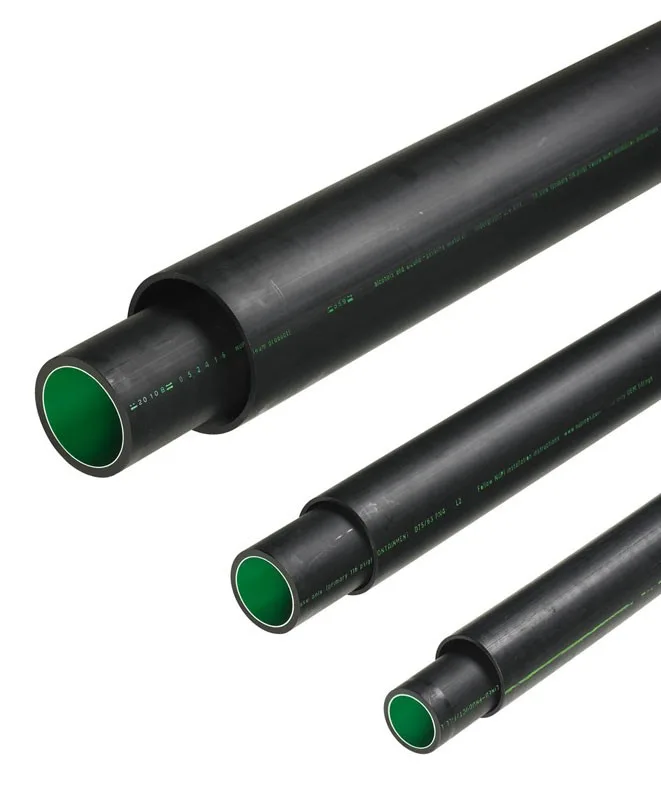

SMARTFLEX single wall system
Lined HDPE primary pipe and electrofusion fittings for product, fill, vent and vapour lines.

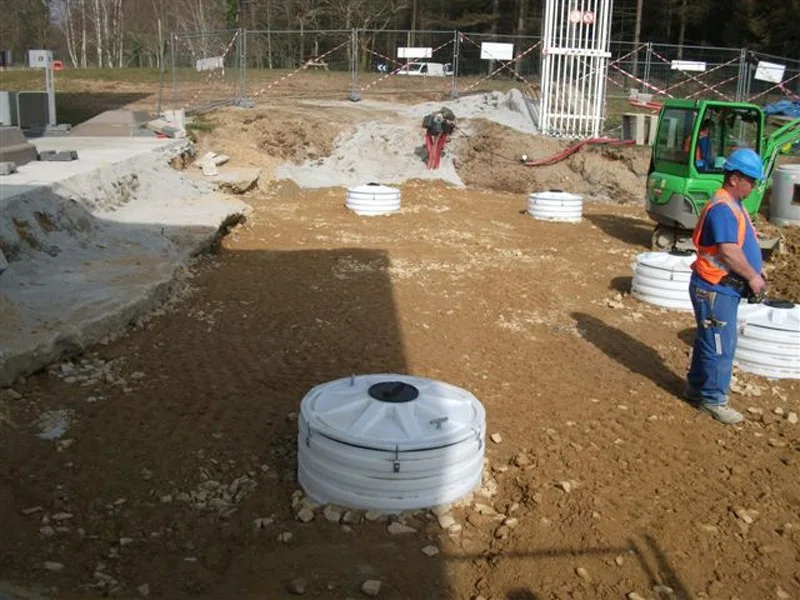

SMARTFLEX sumps and manhole covers
