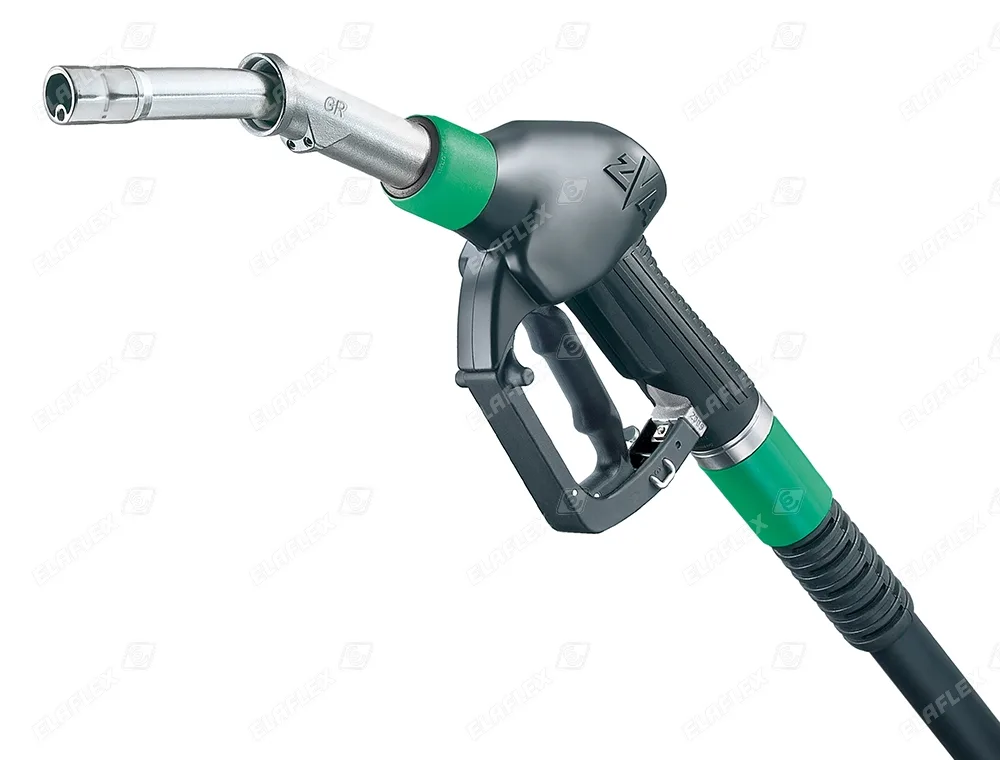

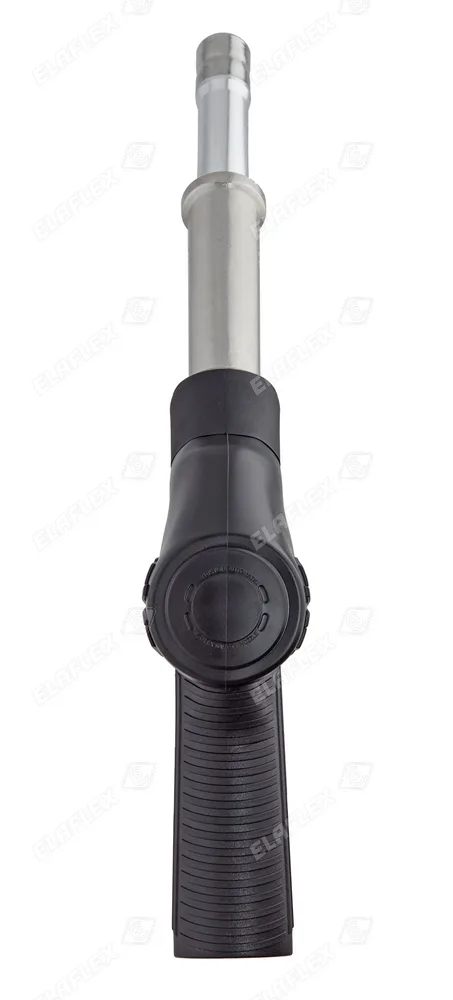

Vapour recovery nozzle ZVA Slimline 2 GR
Active vapour recovery (Stage II) at the nozzle.
The ZVA Slimline 2 GR is the vapour recovery version of the ZVA Slimline 2, made for dispensers with active Stage II vapour recovery. A single-piece vapour suction inlet in the spout draws petrol vapour back through a COAX hose while the customer refuels, at up to 45 l/min.
Three versions match the dispenser's vapour control: GR with the standard gas insert, GRV with an integrated on/off vapour valve, and GRVP with an integrated proportional vapour valve and regulating screw. It suits all standard gasoline grades including ethanol blends up to E85. Apex supplies, installs and services ZVA Slimline 2 GR nozzles in Lebanon.
Key features
- Flow rate up to 45 l/min
- Working pressure 0.5 to 3.5 bar; temperature range -20 °C to +55 °C, optional LT version -40 °C to +55 °C
- For all standard gasoline fuels, also with ethanol up to E85; not for pure alcohol, water or solvents
- GR, GRV (on/off vapour valve) and GRVP (proportional vapour valve) versions
- M 34 x 1.5 female thread for the hose-side COAX swivel
- Venturi automatic shut-off with safety cut-out valve; 2-speed hold-open latch
- Weight approx. 1.0 kg
- Meets EN 13012; TÜV approval P-TÜ7-01930; ATEX (II 1G) certificate TPS 19 ATEX 103415 0002 U
- VR system approvals to Directive 2009/126/EC
Product lines
What this range covers
ZVA Slimline 2 GR
Standard version with gas insert, for dispensers that control vapour flow themselves.
ZVA Slimline 2 GRV
With integrated on/off vapour valve.
ZVA Slimline 2 GRVP
With integrated proportional vapour valve and regulating screw.
Specifications
Models and technical data
| Guard style | GR (standard) | GRV (on/off vapour valve) | GRVP (proportional vapour valve) |
|---|---|---|---|
| 1 | ZVA2 GR 1 | ZVA2 GRV 1 | ZVA2 GRVP 1 |
| 3 | ZVA2 GR 3 | ZVA2 GRV 3 | ZVA2 GRVP 3 |
| 3 | ZVA2 GR 3M | ZVA2 GRV 3M | ZVA2 GRVP 3M |
| 4 | ZVA2 GR 4 | ZVA2 GRV 4 | ZVA2 GRVP 4 |
| 4 | ZVA2 GR 4M | ZVA2 GRV 4M | ZVA2 GRVP 4M |
| 6 | ZVA2 GR 6 | ZVA2 GRV 6 | ZVA2 GRVP 6 |
| 6B | ZVA2 GR 6B | ZVA2 GRV 6B | ZVA2 GRVP 6B |
| 8 | ZVA2 GR 8 | ZVA2 GRV 8 | ZVA2 GRVP 8 |
| 8 | ZVA2 GR 8M | ZVA2 GRV 8M | ZVA2 GRVP 8M |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
