Elaflex
Dispenser hoses
Quality petrol pump hoses for every dispenser.

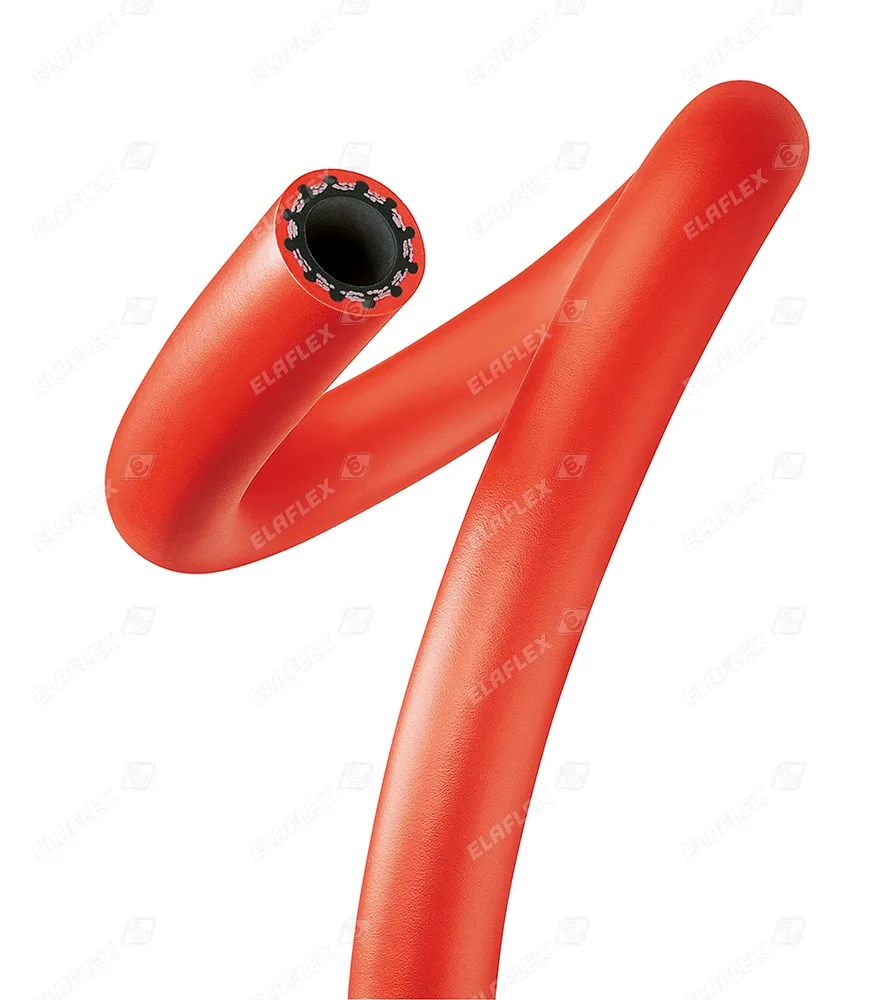

Slimline hoses are Elaflex's petrol pump hoses for gasoline and diesel dispensers, built to EN 1360 and EN 13483. A seamless, electrically dissipative NBR lining, two low-tensile textile braids with conductive strands and a smooth cover resistant to oil, UV and ozone make them flexible, durable and well suited to hose retraction systems on multi-product dispensers.
Slimline LT stays flexible down to -40 °C, Slimline BIO is made for biodiesel up to B100, and FLUORLINE EFL has a fluoropolymer lining for sensitive media and zero-emission dispensing. Hoses come in black or colours for grade identification and are available as finished hose assemblies. Apex supplies, installs and services Elaflex dispenser hoses in Lebanon.
Key features
- Slimline to EN 1360 / EN 13483: working pressure 16 bar, test pressure 25 bar
- For gasoline and diesel, ethanol blends up to E85 and biodiesel up to B30 (BIO type up to B100)
- Cold flexible down to -30 °C (LT type down to -40 °C), up to +55 °C
- Seamless NBR lining, electrically dissipative and non-discolouring
- Two textile braids with interwoven conductivity strands
- Smooth cover resistant to UV, ozone, oil and abrasion; suited to MPD hose retraction systems
- Black or coloured covers (blue, green, yellow, red) with continuous embossed marking
- FLUORLINE EFL: THV fluoropolymer lining, EN 1360 LT, -40 °C to +100 °C
Product lines
What this range covers
Slimline (SL)
Standard quality petrol pump hose in black or colours, DN 16 to DN 21.
Slimline LT
Low-temperature type, flexible down to -40 °C; SL 25 LT for cold and warm regions.
Slimline BIO
Special type for biodiesel (HVO) up to B100 to EN 14214, also for diesel.
FLUORLINE EFL
Ultra-flexible universal pump hose with fluoropolymer lining, usable as a zero-emission petrol pump hose.
Specifications
Models and technical data
| Type | ID (in) | ID (mm) | OD (mm) | Working pressure (bar) | Test pressure (bar) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| SL 16 | 5/8" | 16 | 26 | 16 | 25 | 80 | 0.45 |
| SL 19 | 3/4" | 19 | 30 | 16 | 25 | 90 | 0.55 |
| SL 21 | 7/8" | 21 | 31 | 16 | 25 | 100 | 0.55 |
| SL 16 LT | 5/8" | 16 | 26 | 16 | 25 | 80 | 0.45 |
| SL 19 LT | 3/4" | 19 | 30 | 16 | 25 | 90 | 0.55 |
| SL 21 LT | 7/8" | 21 | 31 | 16 | 25 | 100 | 0.55 |
| SL 25 LT | 1" | 25 | 36 | 16 | 25 | 150 | 0.8 |
| SL 16 BIO | 5/8" | 16 | 26 | 16 | 25 | 80 | 0.45 |
| SL 21 BIO | 7/8" | 21 | 31 | 16 | 25 | 100 | 0.55 |
| SL 25 BIO | 1" | 25 | 36 | 16 | 25 | 150 | 0.8 |
| EFL 16 | 5/8" | 16 | 26 | 25 | 40 | 80 | 0.5 |
| (EFL 19) | 3/4" | 19 | 29 | 16 | 25 | 100 | 0.55 |
| EFL 21 | 7/8" | 21 | 31 | 16 | 25 | 100 | 0.6 |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Request a Quotation
Get a quotation for Dispenser hoses.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
