Safety breaks
Self-closing protection against drive-off damage.
Elaflex safety breaks separate when a vehicle drives off with the nozzle still in the tank. Both halves close themselves so fuel stops flowing, and the dispenser, hose assembly and car are protected. Standard types can be reconnected and reused after a separation.
The SSB safety swivel breaks fit directly on the nozzle (SSB 16 for ZVA Slimline 2, SSB 25 for ZVA 25, SSB 32 for ZVA 32). CSB 21 is the COAX version for Stage II vapour recovery nozzles, PSB 16 is a double-closing pump break for the dispenser outlet or between two hoses, and DC types close on both sides to keep residual spillage to a minimum. All are built to EN 13617-2 and TÜV certified. Apex supplies, installs and services Elaflex safety breaks in Lebanon.
Key features
- Self-closing and reusable; non-reusable 'NR' versions available
- Separates at a pull force between 650 N (65 kg) and 1500 N (150 kg), axial or angular
- Max. working pressure 3.5 bar; temperature range -20 °C to +55 °C
- To EN 13617-2, TÜV certified; factory tested with serial number and Data Matrix Code
- For gasoline and diesel to EN 228 and EN 590, including ethanol and biodiesel blends
- Polyurethane break sleeves (BS 16, BS 21) in black, blue, green, yellow and red
- DC double-closing types to EN 13617-2 and INMETRO Portaria No. 17
- Special types: integrated sight glass (with optional propeller), AS types to Australian Standard AS2229, LT low-temperature types
Product lines
What this range covers
SSB 16 / 25 / 32
Safety swivel breaks fitted directly to ZVA Slimline 2, ZVA 25 and ZVA 32 nozzles.

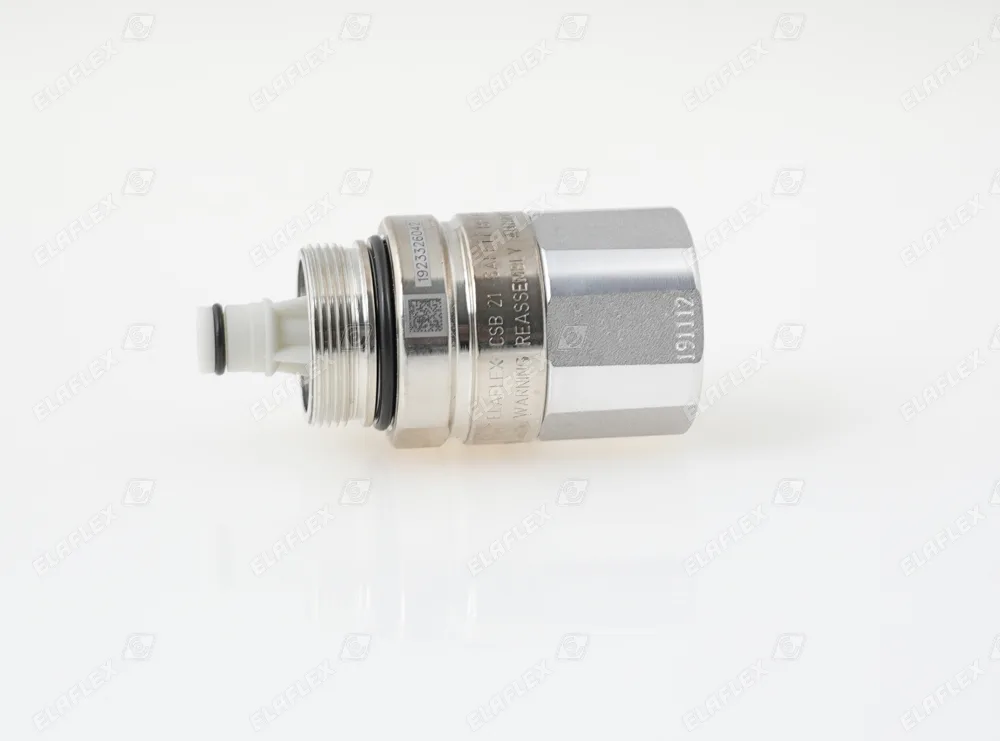

CSB 21
COAX safety break for ZVA Slimline 2 GR and other Stage II vapour recovery nozzles.

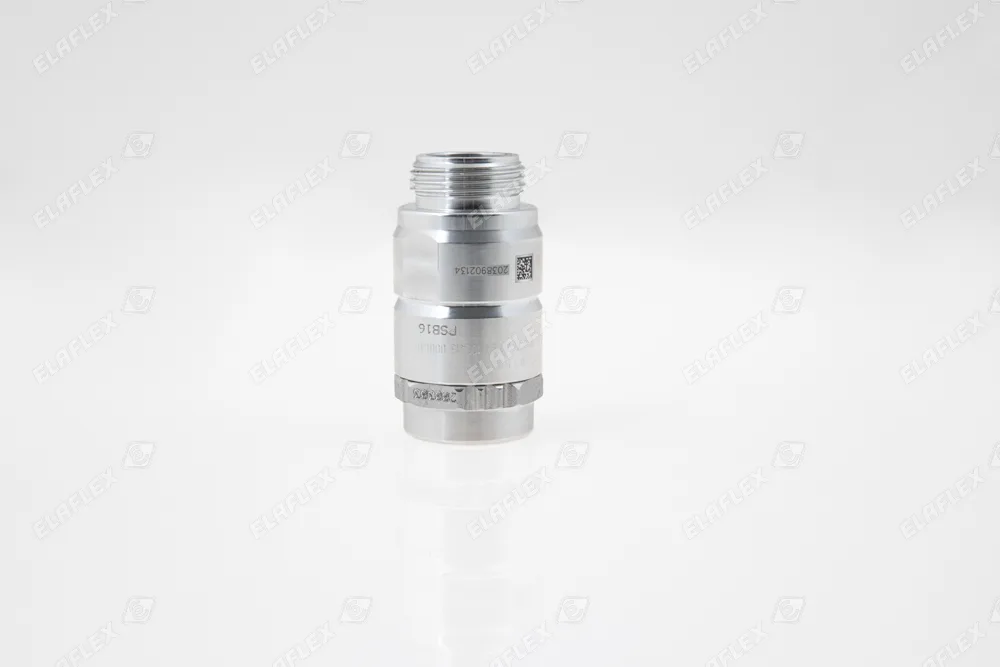

PSB 16
Double-closing pump safety break for the dispenser outlet or as a hose break.

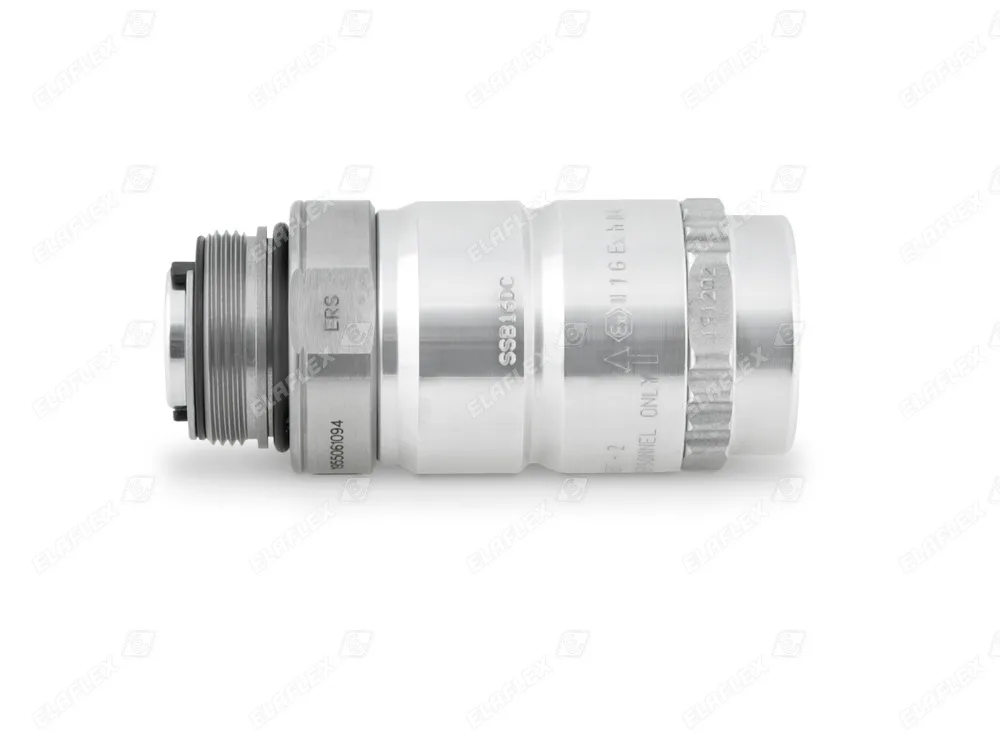

SSB DC
Double-closing safety breaks that stop flow on both sides after separation.
Specifications
Models and technical data
| Model | Use | Max. flow rate | Length (mm) | Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|
| SSB 16 | Nozzle break for ZVA Slimline 2 | 80 l/min | 77.5 to 81.5 | 43 | 0.20 to 0.23 |
| SSB 16 DC | Double closing nozzle break | 96 | 43 | 0.23 | |
| SG-SSB 16 Propeller | Nozzle break with sight glass | 107 | 43 | 0.28 | |
| SSB 25 | Nozzle break for ZVA 25 | 140 l/min | 93 | 48 | 0.275 |
| SSB 25 DC | Double closing, for ZVA 25 | 110 | 43 | 0.29 | |
| SSB 32 | Nozzle break for ZVA 32 | 200 l/min | 97 | 67 | 1.035 |
| CSB 21 | COAX break, Stage II vapour recovery | 45 l/min | 89.5 | 43 | 0.13 |
| CSB 21 DC | Double closing COAX break | 96 | 43 | 0.077 | |
| SG-CSB 21 | COAX break with sight glass | 116 | 0.16 | ||
| PSB 16 | Double closing pump / hose break | 80 l/min | 80.5 | 43 | 0.135 |
| SG-PSB 16 | Pump break with sight glass | 107 | 43 | 0.175 |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Request a Quotation
Get a quotation for Safety breaks.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
