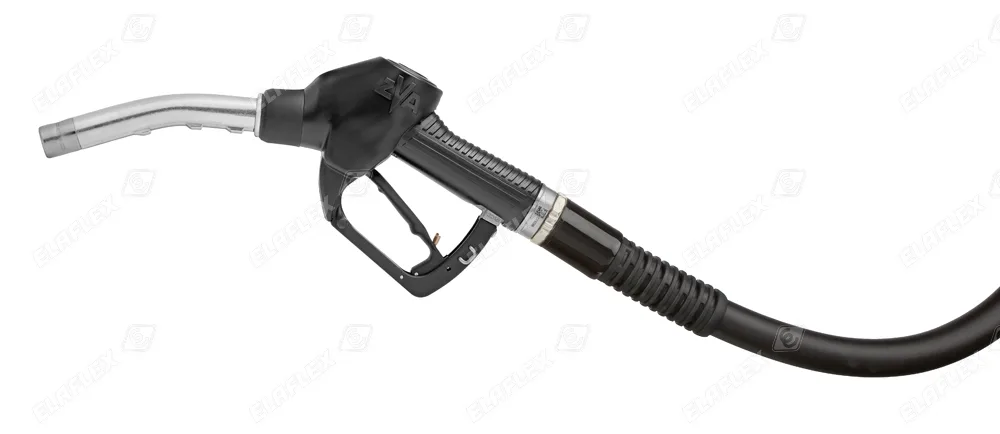

ZVA Slimline 2 automatic nozzle
The forecourt nozzle for petrol, diesel and biofuels.
The ZVA Slimline 2 is Elaflex's automatic nozzle for everyday petrol and diesel dispensing. It is a DN 19 nozzle rated for up to 80 l/min, with venturi-controlled automatic shut-off, a safety cut-out valve that reacts to the nozzle's position and a built-in check valve that keeps the hose full.
It handles gasoline (including ethanol blends up to E85), diesel, biodiesel and heating oil. Choose a DN 19 diesel spout (25 mm OD) or the reduced 'R' spout for unleaded (DN 16, 21 mm OD), several guard styles and 1" or ¾" BSP or NPT hose inlets. Wear parts, valves and spouts are available as spare parts for repair in the field. Apex supplies, installs and services ZVA Slimline 2 nozzles in Lebanon.
Key features
- DN 19, flow rate up to 80 l/min
- Working pressure 0.5 to 3.5 bar; temperature range -20 °C to +55 °C
- For gasoline (also with ethanol up to E85), diesel, fuel oil and biodiesel; not for viscous oils
- Venturi automatic shut-off with safety cut-out attitude valve and built-in check valve
- 2-speed hold-open latch with removable latch pin EB 280
- Aluminium body and spout with stainless steel tip; stainless steel swivel nut
- Weight approx. 1.0 kg
- Meets EN 13012; ATEX (II 1G) certificate TPS 19 ATEX 103415 0002 U; TÜV approval P-TÜ7-01930
- Options: DRIP STOP spout, DSA pressure-controlled shut-off for prepay dispensers, LeverAssist, low-temperature (LT) version down to -55 °C ambient
- Coloured scuffguards, product sleeves, splashguards and EK 145 product badges for grade identification
Product lines
What this range covers
ZVA Slimline 2 (DN 19 spout)
Diesel spout, 25 mm OD, for the full 80 l/min flow rate.
ZVA Slimline 2 ... R
Reduced unleaded spout, DN 16 with 21 mm OD.
ZVA Slimline 2 with SSB 16
Supplied with the SSB 16 safety swivel break and BS 16 break sleeve fitted.
Specifications
Models and technical data
| Type, spout DN 19 | Type, reduced spout 'R' DN 16 | Guard style | Hose inlet |
|---|---|---|---|
| ZVA2 1.0 | ZVA2 1.0 R | 1 | G 1 AG (1" BSP male) |
| ZVA2 3.0 | ZVA2 3.0 R | 3 | G 1 AG (1" BSP male) |
| ZVA2 3.1 | ZVA2 3.1 R | 3 | G 1 IG (1" BSP female) |
| ZVA2 3.4 | ZVA2 3.4 R | 3 | G ¾ IG (¾" BSP female) |
| ZVA2 4.0 | ZVA2 4.0 R | 4 | G 1 AG (1" BSP male) |
| ZVA2 4.1 | ZVA2 4.1 R | 4 | G 1 IG (1" BSP female) |
| ZVA2 4.3 | ZVA2 4.3 R | 4 | ¾" NPT IG (¾" NPT female) |
| ZVA2 4.4 | ZVA2 4.4 R | 4 | G ¾ IG (¾" BSP female) |
| ZVA2 4.5 | 4 | 1" NPT IG (1" NPT female) | |
| ZVA2 6.0 | ZVA2 6.0 R | 6 | G 1 AG (1" BSP male) |
| ZVA2 6.4 | ZVA2 6.4 R | 6 | G ¾ IG (¾" BSP female) |
| ZVA2 6B.1 R | 6B | G 1 IG (1" BSP female) | |
| ZVA2 6B.4 | ZVA2 6B.4 R | 6B | G ¾ IG (¾" BSP female) |
| ZVA2 8.0 | ZVA2 8.0 R | 8 | G 1 AG (1" BSP male) |
| ZVA2 8.1 | ZVA2 8.1 R | 8 | G 1 IG (1" BSP female) |
| ZVA2 8.4 | ZVA2 8.4 R | 8 | G ¾ IG (¾" BSP female) |
| ZVA2 8.7 | ZVA2 8.7 R | 8 | G ¾ AG (¾" BSP male) |
| ZVA2 8 DMrm.1 | ZVA2 8 DMrm.1 R | 8DMrm | G 1 IG (1" BSP female) |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
