COAX vapour recovery hoses & accessories
Hose assemblies and fittings for Stage II dispensers.

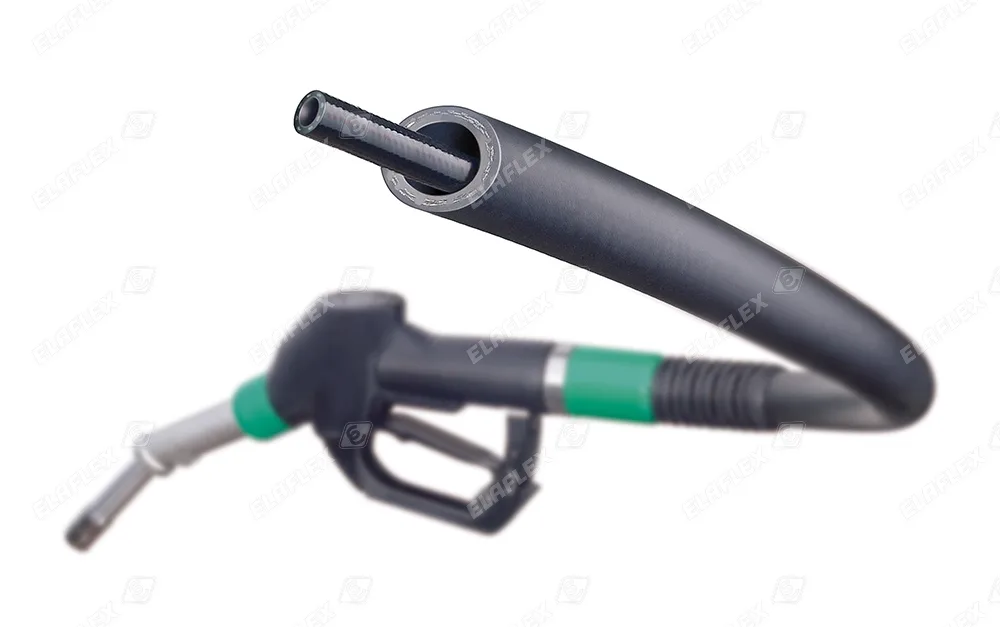

On a Stage II dispenser, fuel and vapour travel in one coaxial hose. The Elaflex COAX 21/8 assembly combines an outer Slimline SL 21 fuel hose (DN 21, 16 bar) with an inner DN 8 polyurethane vapour hose, factory fitted with non-reattachable safety couplings and an anti-kinking sleeve on the nozzle side.
Accessories complete the vapour path: the ZAF splitter connects the COAX hose to the dispenser's separate fuel and vapour lines, the COAX double swivel 45 angles the nozzle so hoses hang straight in desk-type or box-type holders, and the CSB 21 COAX safety break protects the assembly in a drive-off. Apex supplies, installs and services Elaflex COAX equipment in Lebanon.
Key features
- COAX 21/8 NR: outer SL 21 hose DN 21/16 bar (OD approx. 31 mm), inner GRS 8 PU vapour hose DN 8/16 bar (OD approx. 12 mm)
- Meets EN 13483 (EN 1360); suitable for ethanol blends up to E85
- Non-reattachable aluminium safety couplings with M 34 x 1.5 thread; easy-rotating swivel on the nozzle side
- Rollable for retraction devices from Ø 150 mm
- Commonly ordered lengths from 3.00 m to 6.00 m; colour codes for hose, KS 21 anti-kinking sleeve and CS 21 colour sleeve
- LT low-temperature type down to -40 °C; sulphur-free 'SF' version available
- ZAF 2 splitter: swivelling nut with M 34 hose inlet, DN 8 vapour connection to EN 13483, G 1 or G ¾ dispenser thread
- COAX double swivel 45: 45° angle, stainless steel swivel nut, M 34 x 1.5
Product lines
What this range covers

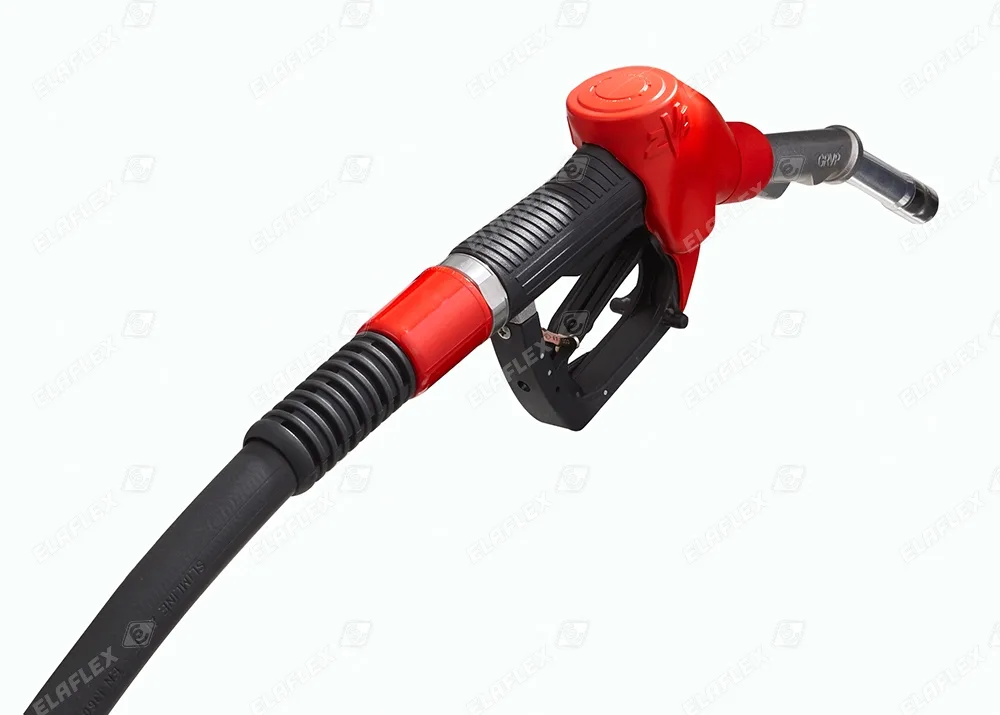

COAX 21/8 hose assembly
Coaxial fuel and vapour hose assembly for dispensers with active vapour recovery.

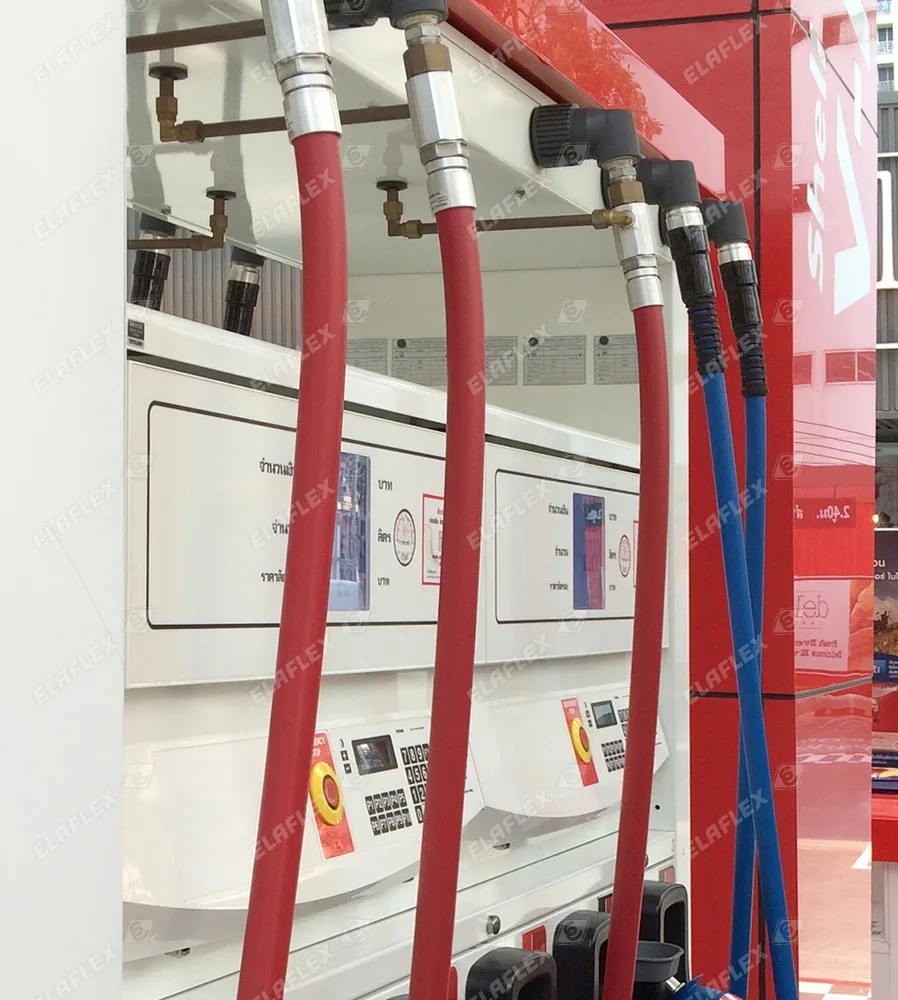

COAX double swivel 45
45° swivel fitted between ZVA Slimline 2 GR and the COAX hose so hoses hang vertically.
ZAF splitter
COAX adapter (splitter valve) at the dispenser outlet with swivelling nut.
CSB 21
COAX safety break, see the Safety breaks page.
Specifications
Models and technical data
| Type | Nut | Length L (mm) | b (mm) | Thread G | Weight (kg) |
|---|---|---|---|---|---|
| ZAF 2.1 | Plain brass | 85 | 31 | G 1 | 0.18 |
| ZAF 2.4 | Plain brass | 85 | 31 | G ¾ | 0.21 |
| ZAF 2.1-L 100 | Plain brass | 100 | 31 | G 1 | 0.22 |
| ZAF 2.4-L 100 | Plain brass | 100 | 31 | G ¾ | 0.25 |
| ZAF 2.1 cr | Brass, chrome plated | 85 | 31 | G 1 | 0.18 |
| ZAF 2.4 cr | Brass, chrome plated | 85 | 31 | G ¾ | 0.21 |
| ZAF 2.1-L 100 Cr | Brass, chrome plated | 100 | 46 | G 1 | 0.22 |
| ZAF 2.4-L 100 Cr | Brass, chrome plated | 100 | 46 | G ¾ | 0.25 |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
