Elaflex
Accessories
Sight glasses, product badges and spare parts.
Elaflex sight glasses let the customer and the station check bubble-free dispensing and the fuel colour. The SG 1" range fits between nozzle and hose or on the dispenser, the M 34 version screws straight into the nozzle, and SG-COAX is the version for vapour recovery nozzles. All meet EN 13617-1, and a propeller insert is available to show the flow.

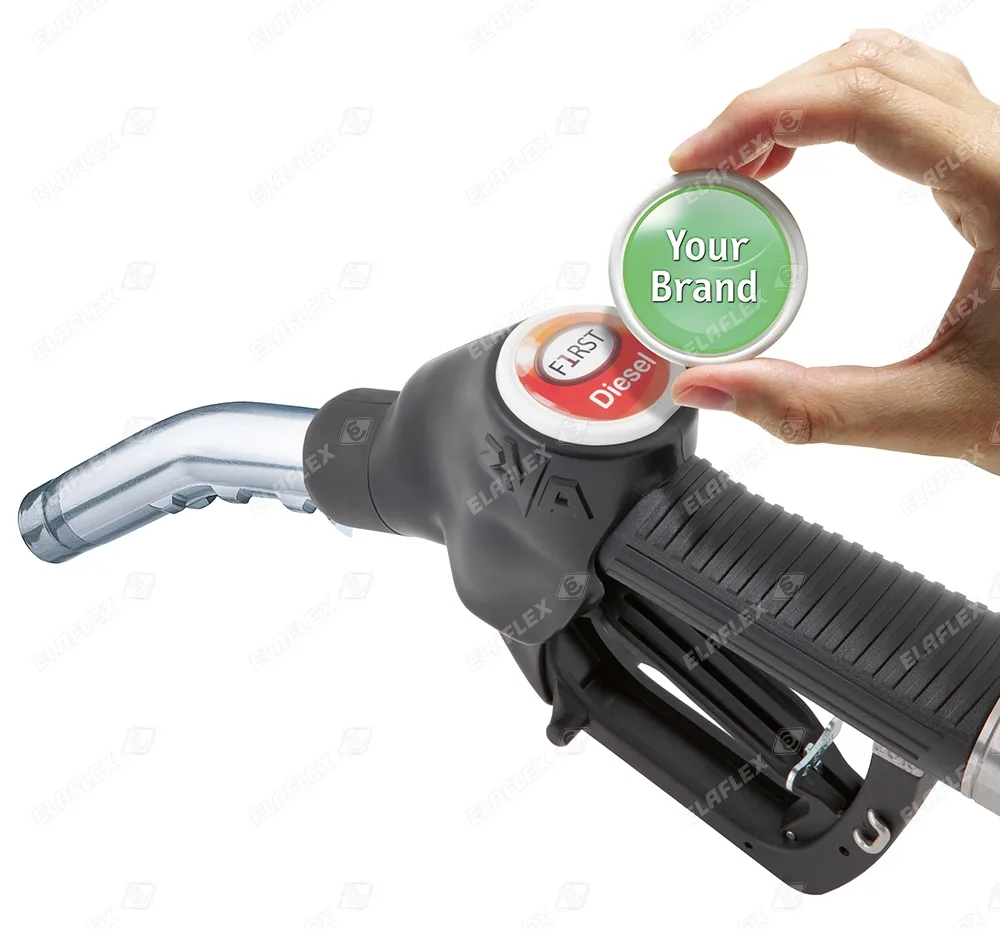

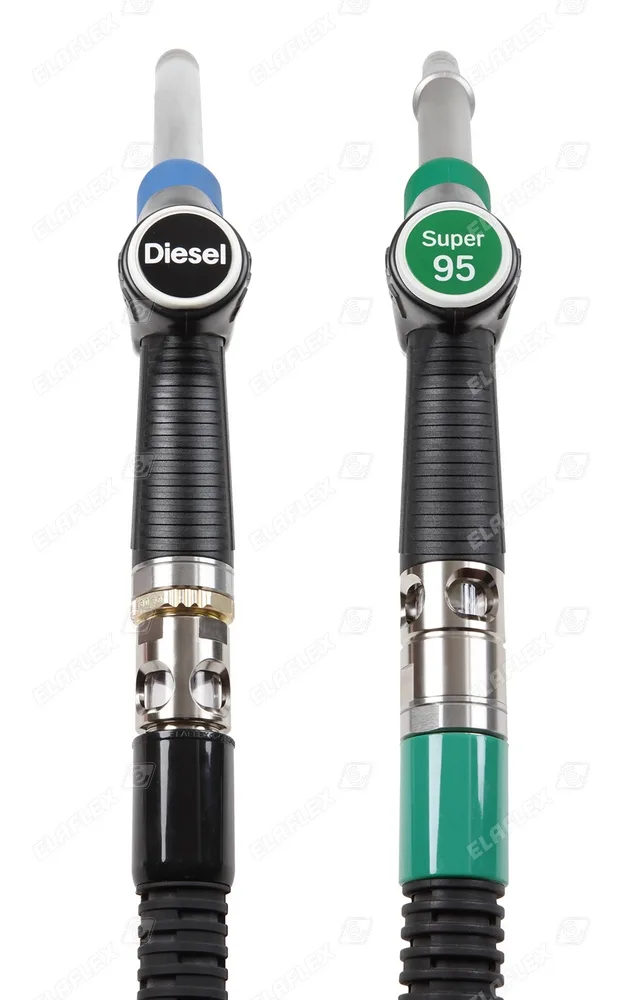

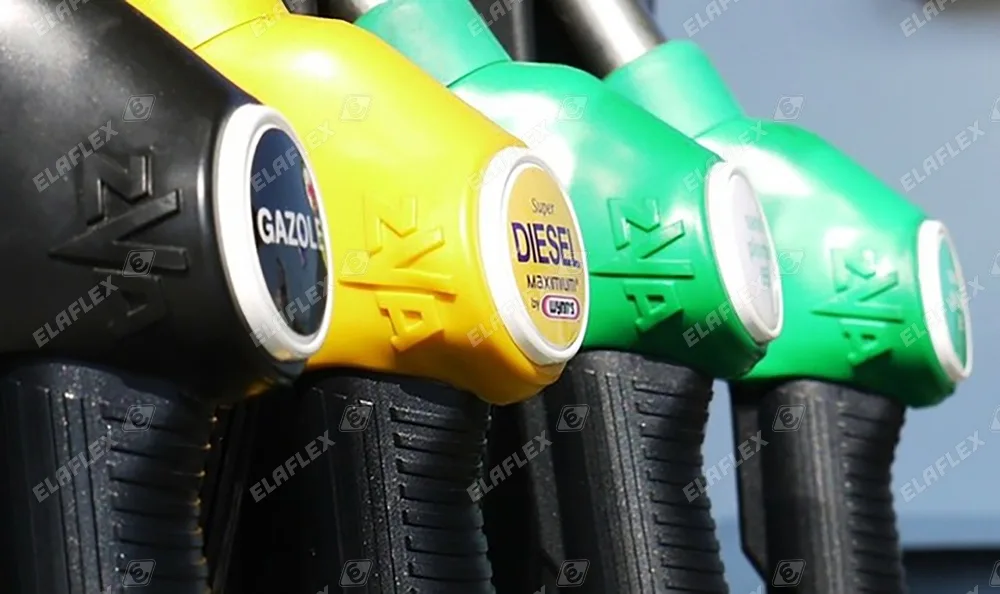

EK 145 product badges clip onto all ZVA nozzles to show the fuel grade, a company logo or a promotion, and help prevent misfuelling. For maintenance, the E 26 spare parts overview lists the replaceable parts and tools for the ZVA range, so nozzles can be repaired rather than replaced. Apex supplies Elaflex accessories and genuine spare parts in Lebanon.
Key features
- Sight glasses to EN 13617-1, DN 25, TÜV type tested
- Max. working pressure 10 bar; temperature range -25 °C to +55 °C
- For gasoline and diesel to EN 228 and EN 590, including ethanol and biodiesel blends
- Coated aluminium body with impact-resistant synthetic glass insert
- Optional propeller to visualise the flow (approx. +2.5 g)
- EK 145 badges of break-resistant white polyamide; print resists fuel vapour, weather and scratches
- EK 145 badges fit all ZVA nozzles; custom designs via the Elaflex BadgeSelector; blank badges for stickers
- Spare parts overview E 26 (edition May 2026) covering ZVA Slimline 2, ZVA Slimline 2 GR, ZVA 25 and ZVA 32
Product lines
What this range covers
Sight glasses SG
SG 1" Al, SG 1" M 34 Al and SG-COAX Al, with or without propeller.
Product badges EK 145
Fuel grade and branding badges for ZVA nozzles.
Spare parts E 26
Spare parts overview for ZVA nozzles, swivels and accessories.
Specifications
Models and technical data
| Type | Thread G1 | Thread G2 | Length (mm) | Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|
| SG 1" M 34 Al | M 34 x 1.5 IG (female) | M 34 x 1.5 AG (male) | 70 | 43 | 0.094 |
| SG 1" 1 x 3 Al | G 1 IG (1" BSP female) | ¾" NPT IG (¾" NPT female) | 59 | 39 | 0.075 |
| SG 1" 1 x 8 Al | G 1 IG (1" BSP female) | ¾" NPT AG (¾" NPT male) | 62 | 39 | 0.071 |
| SG 1" 1 x 0 Al | G 1 IG (1" BSP female) | G 1 AG (1" BSP male) | 58 | 39 | 0.065 |
| SG 1" 1 x 5 Al | G 1 IG (1" BSP female) | 1" NPT IG (1" NPT female) | 65 | 39 | 0.081 |
| SG 1" 5 x 9 Al | 1" NPT IG (1" NPT female) | 1" NPT AG (1" NPT male) | 65 | 39 | 0.072 |
| SG-COAX Al | M 34 x 1.5 IG (female) | M 34 x 1.5 AG (male) | 70.5 | 43 | 0.105 |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
Request a Quotation
Get a quotation for Accessories.
Tell us the quantities and the site. Apex prepares every quotation for the project, then supplies, installs and services the equipment in Lebanon.
