Tatsuno
Sunny-XE
Safety, security and reliability in a mid-range dispenser.
Sunny-XE is Tatsuno's mid-range dispenser family. It is built in a wide or narrow body, with front or side nozzles, one to four products, suction or remote pumping, and standard, high or ultra-high delivery speeds, so each island can be specified to match the site.
Every unit is built around Tatsuno's own meter and pump. Encrypted board-to-board communication protects the meter and display against tampering, and the compact cabinet fits a standard shipping container. Apex supplies, installs and services Sunny-XE dispensers in Lebanon.
Key features
- Configurable by cabinet width, number of products, meters and nozzles, and flow rate

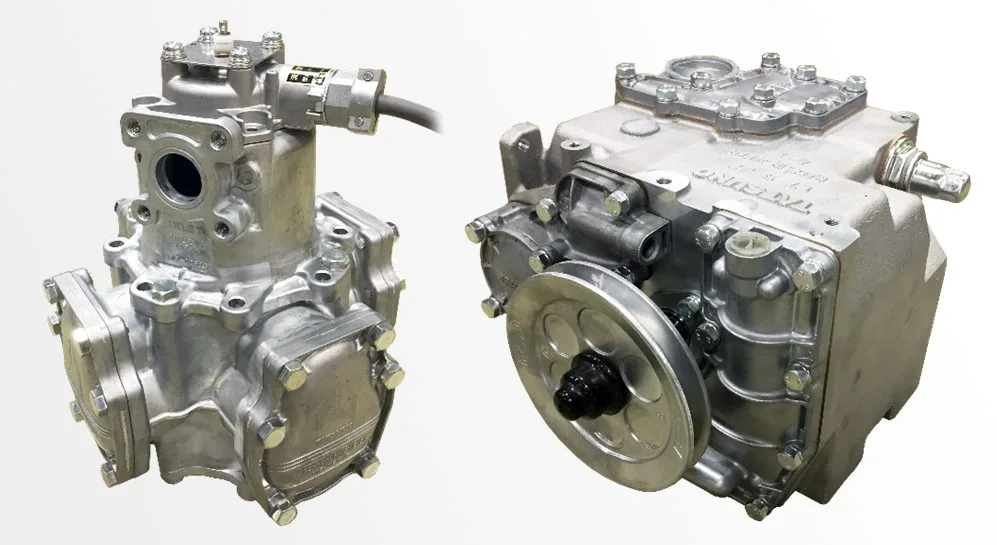

- Tatsuno 4-piston positive displacement meter with electronic calibration, measuring accuracy ±0.25%
- Tatsuno internal gear pump with air separator, by-pass valve, suction strainer and check valve; 4 m suction head (gasoline column)
- Delivery speed on suction models: 40 L/min standard (gasoline/diesel), 70 L/min high speed and 140 L/min ultra-high speed (diesel)

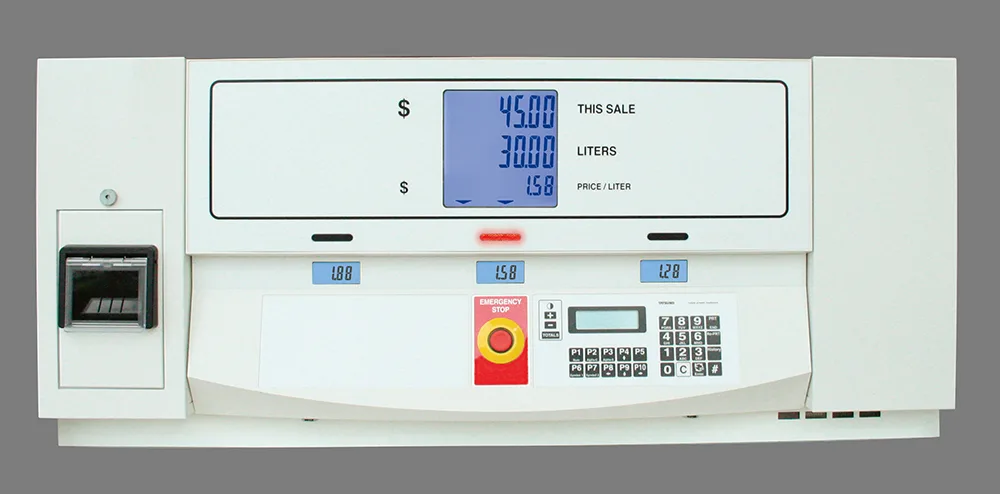

- LED-backlit LCD counter with 40 mm digits; 7-digit amount and volume readout works with any currency
- Eco-power mode turns the display backlight off while the dispenser is idle

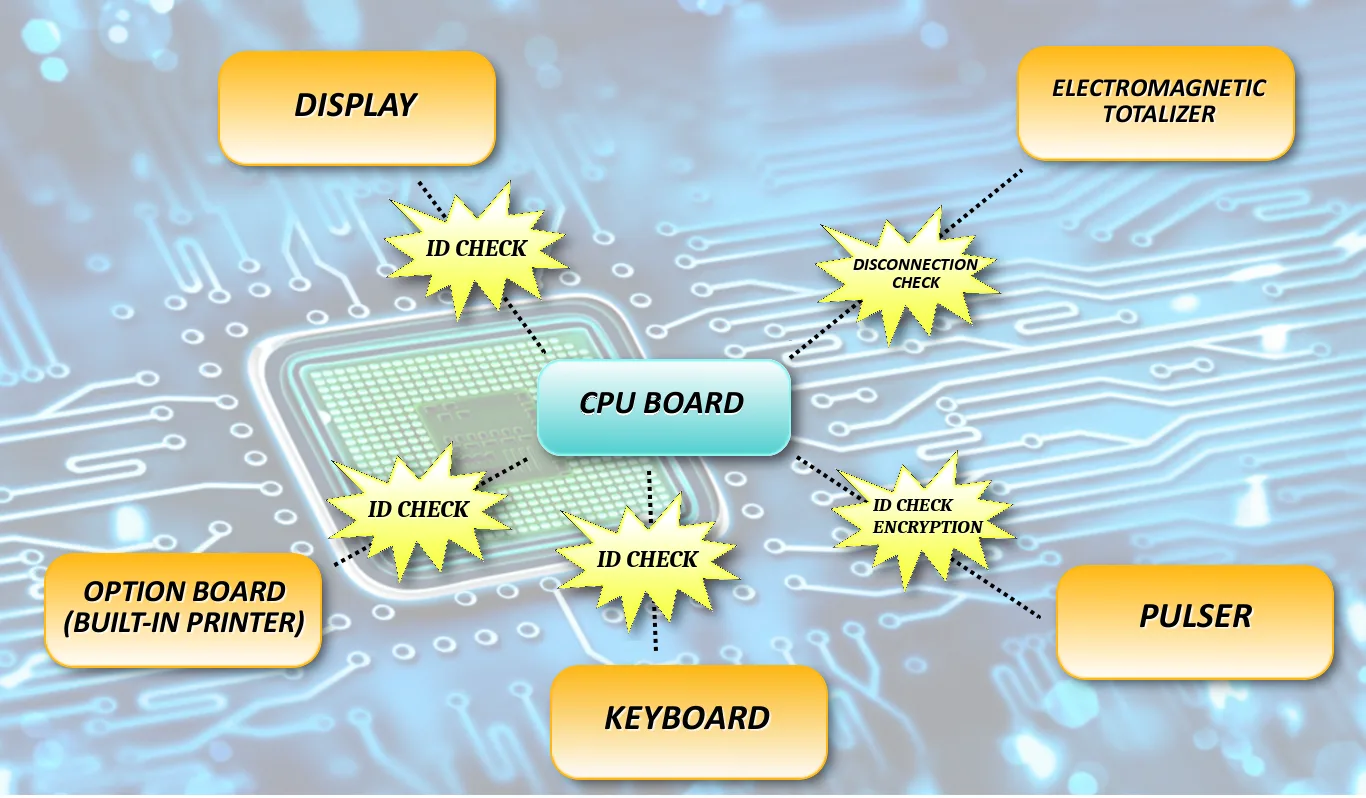

- Encrypted communication between circuit boards (ID check) guards against meter and display fraud
- Preset by 16-key sheet plus 10 programmable one-touch keys; electronic and daily totalizers
- Options include static-discharge pads, choice of nozzles, built-in printer, electromagnetic totalizer, emergency-stop button, earthquake sensor and RS-485 POS interface
- Compact cabinet fits inside a standard shipping container
Product lines
What this range covers
Wide body, front nozzle
Seven configurations from 2 to 4 products and up to 8 nozzles, including simultaneous 4-nozzle versions.
Narrow body, front nozzle
Five configurations from a single product and nozzle up to 2 products with simultaneous 4-nozzle fuelling.
Narrow body, side nozzle
Three island-oriented configurations for sites where an economical layout matters.
Ultra-high speed model
Diesel models with ultra-high speed nozzles for fast filling of trucks and large vehicles.
Specifications
Models and technical data
| Body / nozzle layout | Model code | Products | Meters | Nozzles | Simultaneous | Suction model | Remote model | W x D (mm) | Note |
|---|---|---|---|---|---|---|---|---|---|
| Wide body, front nozzle | 4882 | 4 | 8 | 8 | 2 | SDB 4882 | SSB 4882 | 1280 x 530 | |
| Wide body, front nozzle | 3662 | 3 | 6 | 6 | 2 | SDB 3662 | SSB 3662 | 1280 x 530 | |
| Wide body, front nozzle | 3664 | 3 | 6 | 6 | 4 | SDB 3664 | SSB 3664 | 1280 x 530 | Simultaneous 4-nozzle fuelling |
| Wide body, front nozzle | 2442 | 2 | 4 | 4 | 2 | SDB 2442 | SSB 2442 | 1280 x 530 | |
| Wide body, front nozzle | 2444 | 2 | 4 | 4 | 4 | SDB 2444 | SSB 2444 | 1280 x 530 | Simultaneous 4-nozzle fuelling |
| Wide body, front nozzle | 3331 | 3 | 3 | 3 | 1 | SDB 3331 | SSB 3331 | 1280 x 530 | |
| Wide body, front nozzle | 3332 | 3 | 3 | 3 | 2 | SDB 3332 | SSB 3332 | 1280 x 530 | |
| Narrow body, front nozzle | 2442 | 2 | 4 | 4 | 2 | SDA 2442 | SSA 2442 | 914 x 530 | |
| Narrow body, front nozzle | 2444 | 2 | 4 | 4 | 4 | SDA 2444 | SSA 2444 | 914 x 530 | Simultaneous 4-nozzle fuelling |
| Narrow body, front nozzle | 2222 | 2 | 2 | 2 | 2 | SDA 2222 | SSA 2222 | 914 x 530 | |
| Narrow body, front nozzle | 1222 | 1 | 2 | 2 | 2 | SDA 1222 | SSA 1222 | 914 x 530 | |
| Narrow body, front nozzle | 1111 | 1 | 1 | 1 | 1 | SDA 1111 | SSA 1111 | 914 x 530 | |
| Narrow body, side nozzle | 2222 | 2 | 2 | 2 | 2 | SDA 2222-S | SSA 2222-S | 914 x 530 | |
| Narrow body, side nozzle | 1222 | 1 | 2 | 2 | 2 | SDA 1222-S | SSA 1222-S | 914 x 530 | |
| Narrow body, side nozzle | 1111 | 1 | 1 | 1 | 1 | SDA 1111-S | SSA 1111-S | 914 x 530 | |
| Ultra-high speed model | 4222 | 4 | 2 | 2 | 2 | SDF 4222-S | SSF 4222-S | Not stated | Ultra-high speed type |
| Ultra-high speed model | 4222 | 4 | 2 | 2 | 2 | SDF 4222 | SSF 4222 | Not stated | Ultra-high speed type |
| Ultra-high speed model | 4222 | 4 | 2 | 2 | 2 | Remote type only | SSC 4222-S | Not stated | Ultra-high speed type |
| Ultra-high speed model | 4222 | 4 | 2 | 2 | 2 | Remote type only | SSC 4222 | Not stated | Ultra-high speed type |
| Ultra-high speed model | 2222 | 2 | 2 | 2 | 2 | SDC 2222-S | SSC 2222-S | Not stated | Ultra-high speed and high speed type |
| Ultra-high speed model | 2222 | 2 | 2 | 2 | 2 | SDC 2222 | SSC 2222 | Not stated | Ultra-high speed and high speed type |
| Ultra-high speed model | 2111 | 2 | 1 | 1 | 1 | SDC 2111-S | SSC 2111-S | Not stated | Ultra-high speed type |
| Ultra-high speed model | 2111 | 2 | 1 | 1 | 1 | SDC 2111 | SSC 2111 | Not stated | Ultra-high speed type |
Figures from the manufacturer's published documentation. Confirm the final configuration with Apex at quotation stage.
